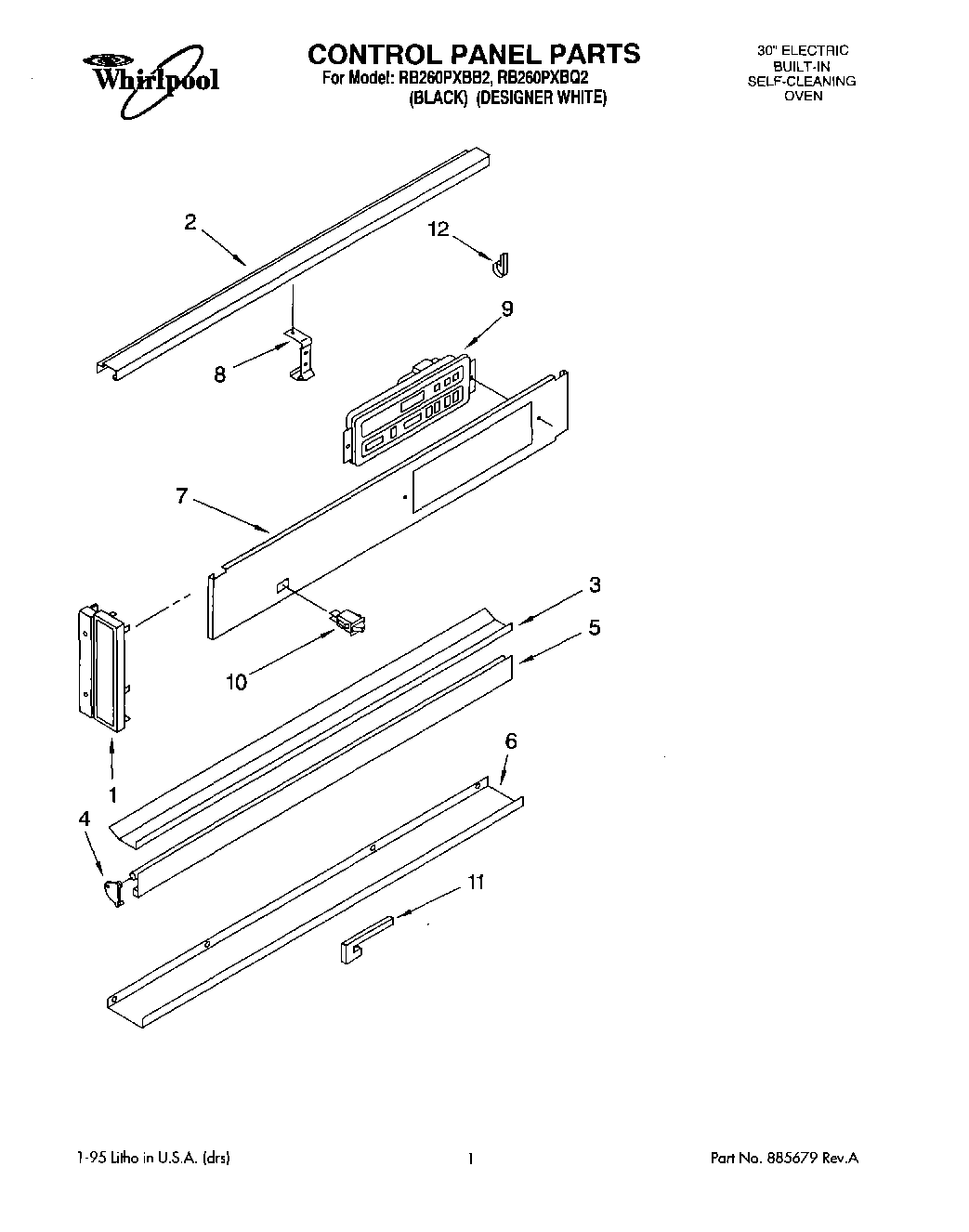

RB260PXBB2 01 – CONTROL PANEL, LITERATUREadmin2025-04-26T11:31:57+00:00RB260PXBB2 01 – CONTROL PANEL, LITERATURE
Products
| Position | Product |
|---|
| Tech Sheet |
| WPL LIT3188184 |
| Installation Instructions |
| WPL 3171507 |
| 1 | End Cap (Right Hand (White)) |
| 1 | End Cap (Left Hand (White)) |
| 1 | End Cap (Right Hand (Black)) |
| 1 | End Cap (Left Hand (Black)) |
| 2 | Trim, Top (White Model) |
| 2 | Trim, Top (Black Model) |
| 2 | WP488627 Whirlpool Refrigerator Screw |
| 3 | Trim, Center (Black Model) |
| 3 | Trim, Center (White Model) |
| 4 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 4 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 4 | End Trim, Vent (Left Side) |
| 4 | End Trim, Vent (Right Side) |
| 5 | Door, Vent (Black) |
| 5 | Door, Vent (White Model) |
| 6 | Trim, Bottom |
| 6 | Screw, 10-32 x 1/2 |
| 7 | Control Panel (White Model) |
| 7 | Control Panel (Black Model) |
| 8 | Bracket, Stiffener |
| 8 | Screw |
| 9 | Control, Electronic (White) |
| 9 | Control, Electronic (Black) |
| 10 | Switch, Rocker (Screw) |
| 10 | Switch, Rocker (White) |
| 10 | Switch, Rocker |
| 11 | Shield, Air |
| 11 | Screw (2) |
| 12 | 488946 Whirlpool Air Conditioner Clamp |
