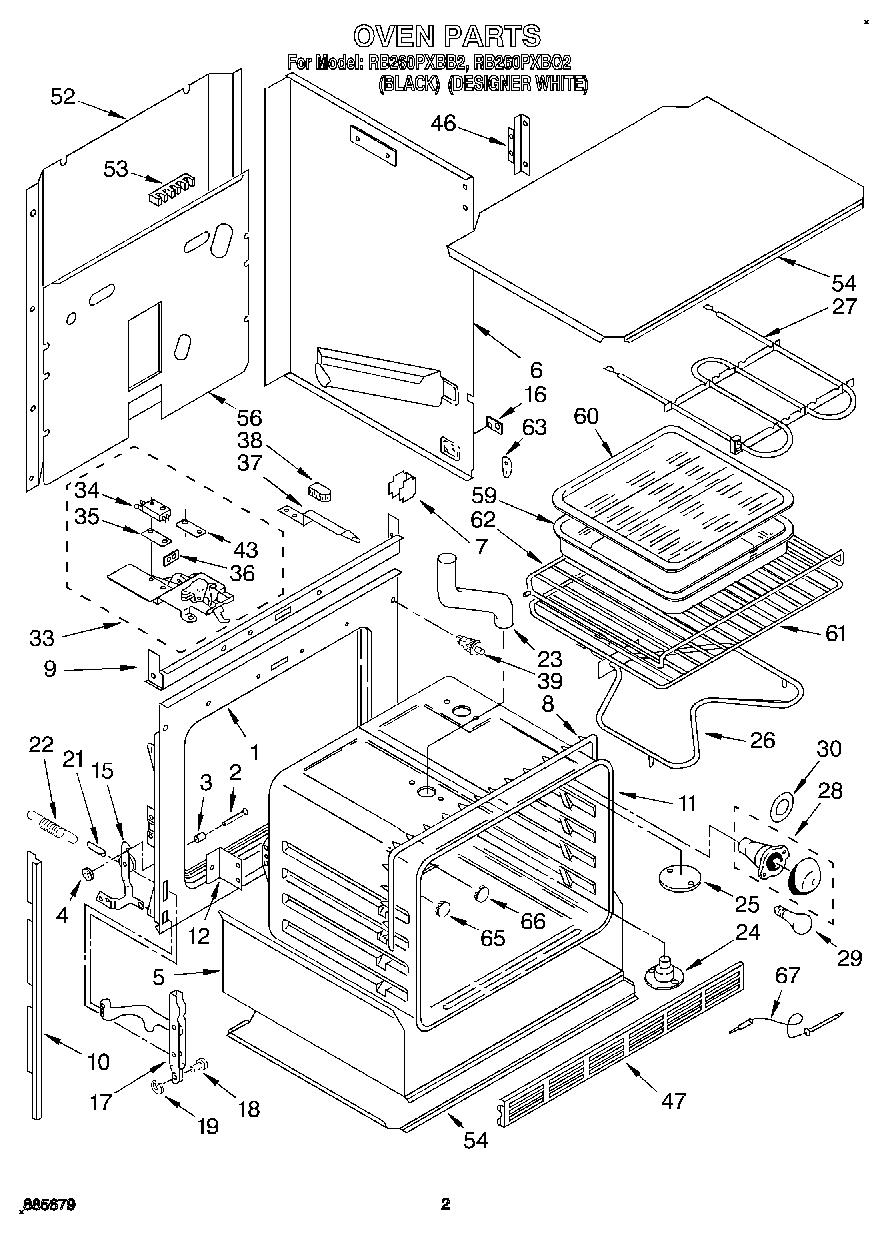

RB260PXBB2 02 – OVEN

Products

Position	Product
1	Frame Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (L.H.)
6	Side Wrapper (R.H.)
7	Support, Side Wrapper (4)
8	WPL 3185197
9	Baffle, Top Insulation
10	Side Trim (White Model, LH)
10	Side Trim (White Model, R.H.)
10	Side Trim (Black Model, LH)
10	Side Trim (Black Model, RH)
11	Oven 30“
12	Bracket, Oven Mounting (2)
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Vent, Extension (2)
23	SCREW
23	Screw (2)
24	Tube, Vent
25	WPL 310662
26	ELMNT-BAKE
27	Screw (2)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP3184533 Whirlpool Range Light Lens Gasket
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw
39	Switch, Door
43	Insulator, Switch
46	WPL 310719
46	Screw, 10A x 1/2 (2) (Black)
46	Screw
47	Grill, Bottom (Screw (3))
47	Grill, Bottom (Black)
47	Grill, Bottom (White)
52	WPL 3185961
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
53	Screw (10-12 x .875)
54	Cover, Bottom
56	Panel, Back
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	Rack, Offset
63	WP488729 Whirlpool Refrigerator Door Screw
63	WPL 3183005
65	Button, Plug
66	WPL 3185086
67	Screw (3)
67	WPL 310433
67	WPL 310435
67	Sensor, Heat
67	WPL 3149328
