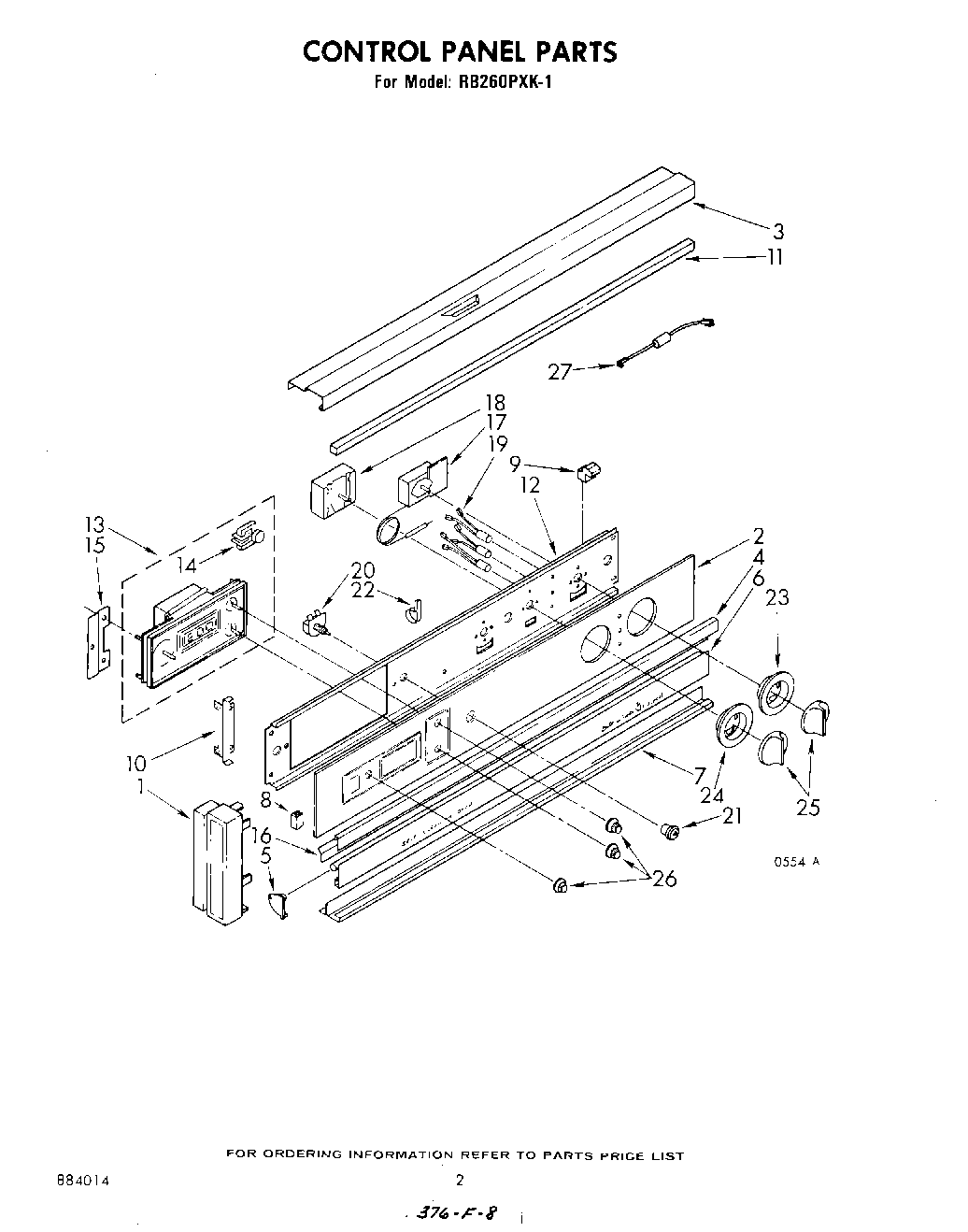

RB260PXK1 02 – SECTION

Products

Position	Product
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Control Panel, Glass
3	WP488627 Whirlpool Refrigerator Screw
3	Rail, Top
4	Trim, Center
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Rubber Channel (2) (Black Model Only)
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
10	Screw (2)
11	Seal, Backguard
12	Bracket, Control
13	Timer, Automatic (Palnut (Timer))
13	Timer, Digital (Includes Illus. 29)
14	Motor, Timer
15	Bracket, Timer
16	Seal, Backguard
17	Thermostat, Oven Pyro
17	screw, 6-32 x 1/4 (2)
18	Selector Switch
18	WP486579 Whirlpool Air Conditioner Screw
19	Indicator Light (4)
20	nut, 3/8 x 27
20	Switch, Oven Light
21	bezel, switch (2)
22	WP308605 Whirlpool Refrigerator Clamp
22	WP965173 Whirlpool Dishwasher Screw
23	Escutcheon, Thermostat
24	Screw,
24	WP311068 Whirlpool Dial Knob Black
25	WP3150371 Whirlpool Control Knob
26	knob, timer
27	WPL 328891
27	WPL 313870
27	WPL 312493
27	WPL 98655
27	WPL 884014
27	Installation Instructions
27	1
27	FOIL, ALUMINUM OVEN (18“ X 25 )
27	Wire, 25` Roll (Black 14 Ga.)
27	Wire, 25` Roll (Red 14 Ga.)
27	242831 Whirlpool Oven Wire
27	Wire (14 Ga. 150 c Blue)
27	Wire (14 Ga. 150 c Brown)
27	Wire (14 Ga. 150 c Green)
27	Wire (14 Ga. 150 c Orange)
27	Wire (14 Ga. 150 c Yellow)
27	Wire (12 Ga. 150 c Black)
27	18 Ga. 80~c Rating (Red)
27	Wire (14 Ga. 200 c Brown)
27	Rotisserie Kit
27	Grease
27	WPL 308500
27	Wire, 25“ Roll (White 14 GA.)
27	Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gray)
27	WPW10208653 Whirlpool Insulation
