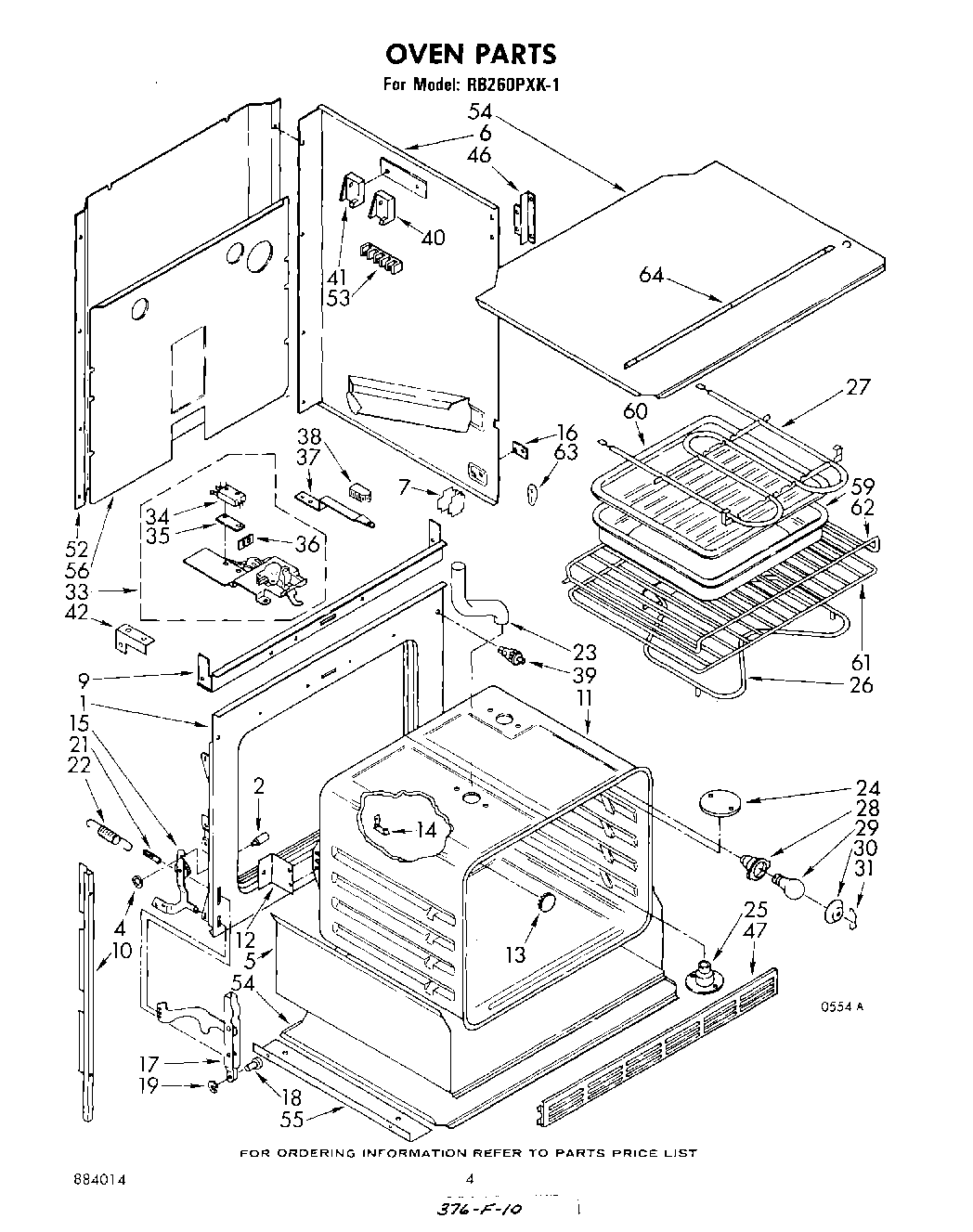

RB260PXK1 03 – SECTION

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
4	Pushnut (2)
5	Insulation Tray
6	SCREW
6	Side Wrapper (R.H.)
6	Side Wrapper (L.H.)
7	Support, Side Wrapper (4)
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Vent, Extension (2)
24	WP965173 Whirlpool Dishwasher Screw
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	Screw, 10-32 x 5/8 (4)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light (Alt.)
28	Screw (10-12 x .875)
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Terminal
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw, 80 x 5/16
39	Switch, Door
40	Switch, Broil
41	WPL 311585
42	WPL 312320
46	WPL 310719
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	WPL 310459
53	WP112432 Whirlpool Nut Assembly
53	W10841059 Whirlpool Screw
53	WP8203546 Whirlpool Terminal Block
54	WPL 310458
55	Angle, Support (2)
56	WPL 311011
56	WP308685 Whirlpool Microwave Screw
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WPL 311982
64	Screw,
64	WPL 312029
