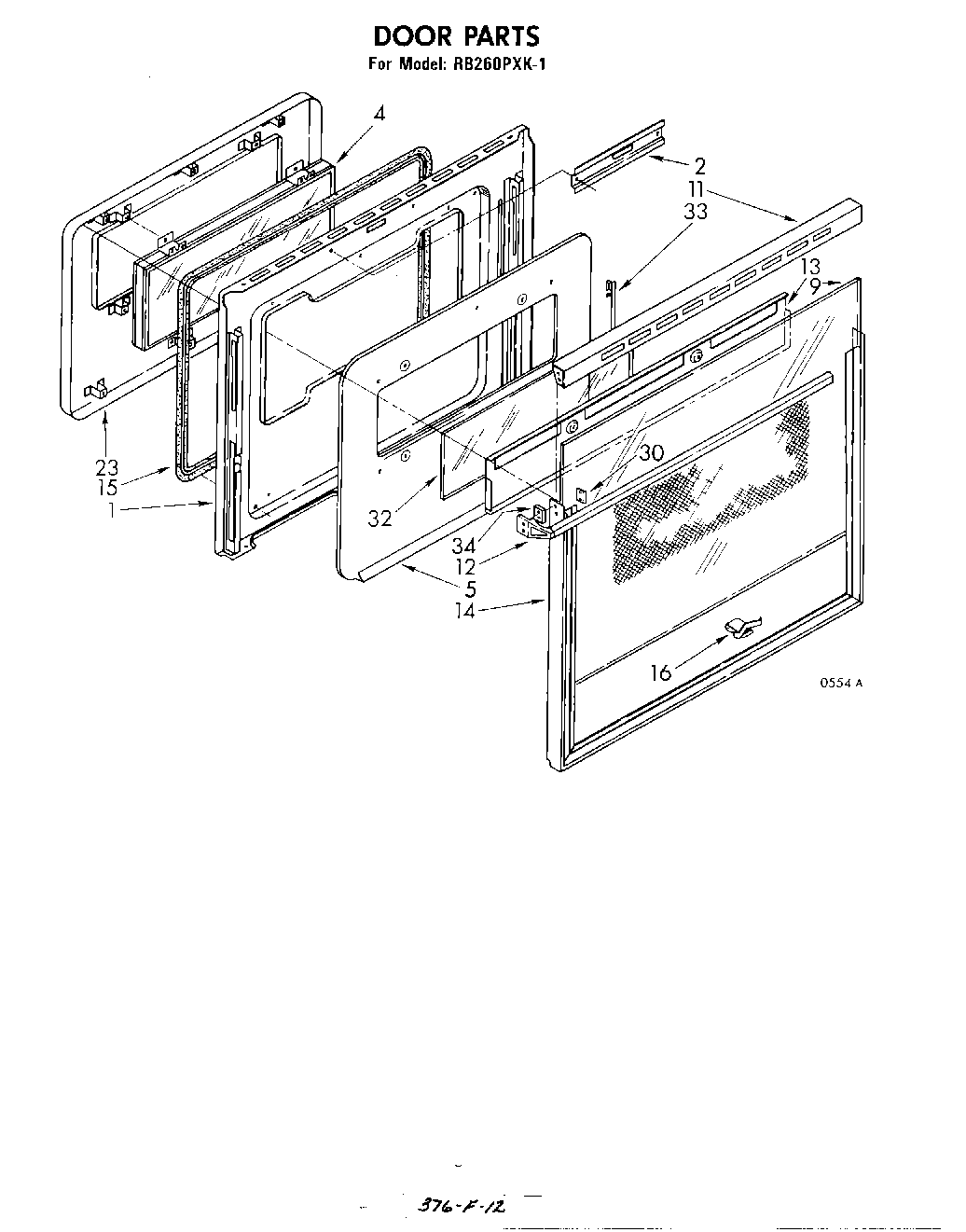

RB260PXK1 04 – SECTION

Products

Position	Product
1	Clip (2)
1	panel, top (screw, 10a x 3/8 (3))
1	Liner, Door
2	Screw (2)
2	Channel, Latch
4	Window Package
5	Retainer, Insulation
5	WP308685 Whirlpool Microwave Screw
9	Glass, Outer
11	Top, Door Frame
12	Handle, Oven Door
12	WP912618 Whirlpool Dishwasher Screw
13	WP90296 Whirlpool Clip
13	Baffle, Heat
14	Screw, 10A x 1/2 (2) (Black)
14	frame, door 30“
15	Seal, Fiberglass
16	clip, glass (10)
23	Panel, Inner
30	screw (3)
32	Glass (6.81“ x 18.31“)
33	Retainer, Glass (2)
34	Spacer, Door Handle (2)
