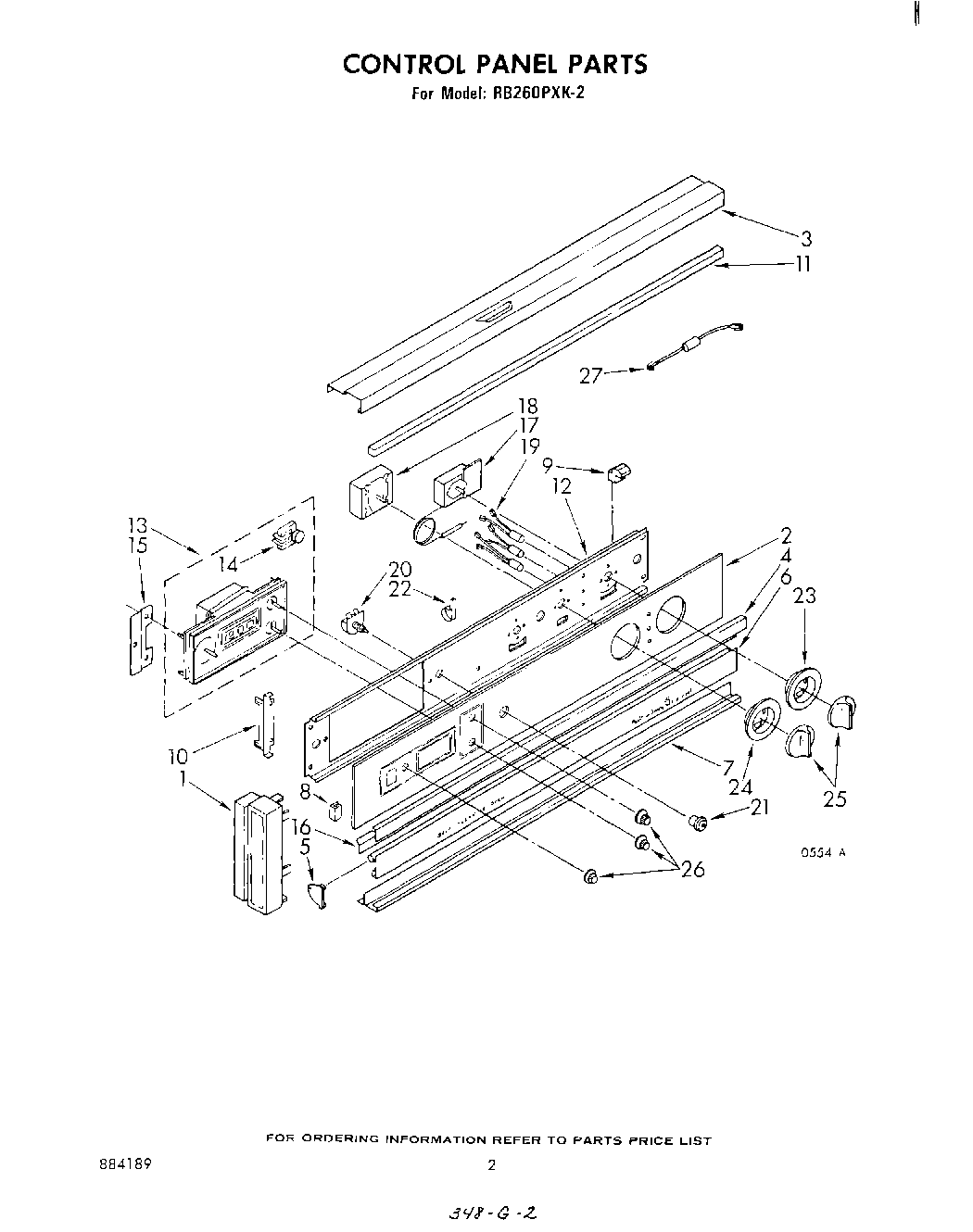

RB260PXK2 02 – CONTROL PANEL, LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT312493
	WPL LIT311948
	WPL LIT311434
	WPL LIT884189
	WPL LIT313358
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Control Panel, Glass
3	WP488627 Whirlpool Refrigerator Screw
3	Rail, Top
4	Trim, Center
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Rubber Channel (2) (Black Model Only)
9	Retainer, Glass (4)
10	Screw (2)
10	Bracket, Control Panel (2)
11	Seal, Backguard
12	Bracket, Control
13	Timer, Digital (Included No.14)
13	Timer, Automatic (Palnut (Timer))
14	Motor, Timer
15	Bracket, Timer
16	Rail, Top (Seal, Backguard)
17	Thermostat, Oven Pyro
17	screw, 6-32 x 1/4 (2)
18	Selector Switch
18	WP486579 Whirlpool Air Conditioner Screw
19	Indicator Light (4)
20	Lockwasher
20	Switch, Oven Light
21	Bezel Switch (1)
22	WP965173 Whirlpool Dishwasher Screw
22	WP308605 Whirlpool Refrigerator Clamp
23	Escutcheon, Thermostat
24	WP311068 Whirlpool Dial Knob Black
24	Screw,
25	WP3150371 Whirlpool Control Knob
26	Spring (3)
26	WP3169181 Whirlpool Knob
27	Wire, 25“ Roll (White 14 GA.)
27	WPL 328891
27	WPL 98655
27	1
27	FOIL, ALUMINUM OVEN (18“ X 25 )
27	Wire, 25` Roll (Black 14 Ga.)
27	Wire, 25` Roll (Red 14 Ga.)
27	242831 Whirlpool Oven Wire
27	Wire (14 Ga. 150 c Blue)
27	Wire (14 Ga. 150 c Brown)
27	Wire (14 Ga. 150 c Green)
27	Wire (14 Ga. 150 c Orange)
27	Wire (14 Ga. 150 c Yellow)
27	Wire (12 Ga. 150 c Black)
27	18 Ga. 80~c Rating (Red)
27	Wire (14 Ga. 200 c Brown)
27	Rotisserie Kit
27	8212471 Whirlpool Oven Paint
27	Grease
27	WPW10208653 Whirlpool Insulation
