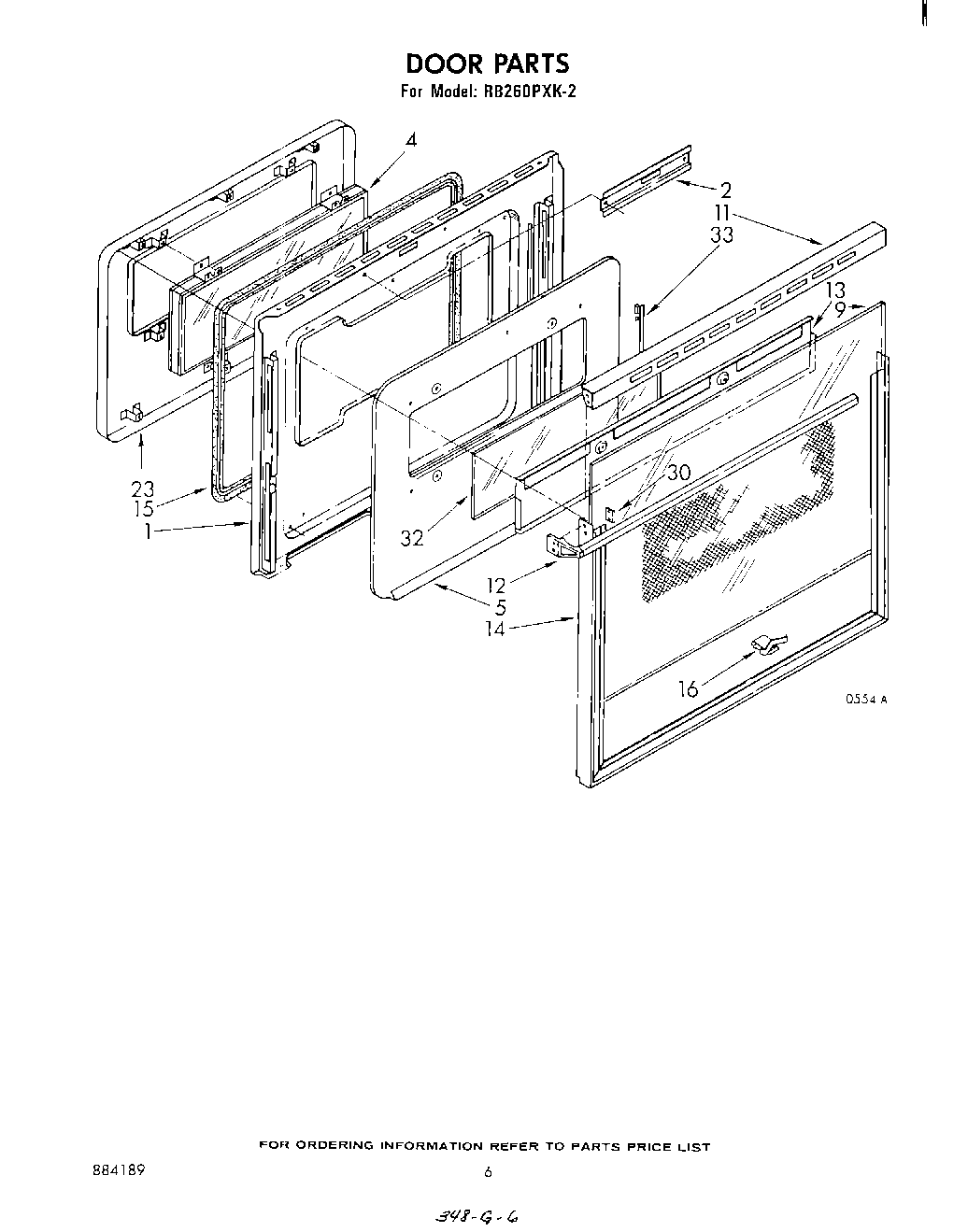

| 1 | Liner, Door |
| 2 | Channel, Latch |
| 2 | Screw (2) |
| 4 | Window Package |
| 5 | Retainer, Insulation |
| 5 | WP308685 Whirlpool Microwave Screw |
| 9 | Glass, Outer |
| 11 | Top, Door Frame |
| 12 | WP355515 Whirlpool Screw |
| 12 | WP912618 Whirlpool Dishwasher Screw |
| 12 | Handle, Oven Door |
| 13 | WP90296 Whirlpool Clip |
| 13 | Baffle, Heat |
| 14 | Screw, 10A x 1/2 (2) (Black) |
| 14 | frame, door 30`` |
| 15 | Seal, Fiberglass |
| 16 | clip, glass (10) |
| 23 | Panel, Inner |
| 30 | screw (3) |
| 32 | Glass (6.81`` x 18.31``) |
| 33 | Retainer, Glass (2) |
