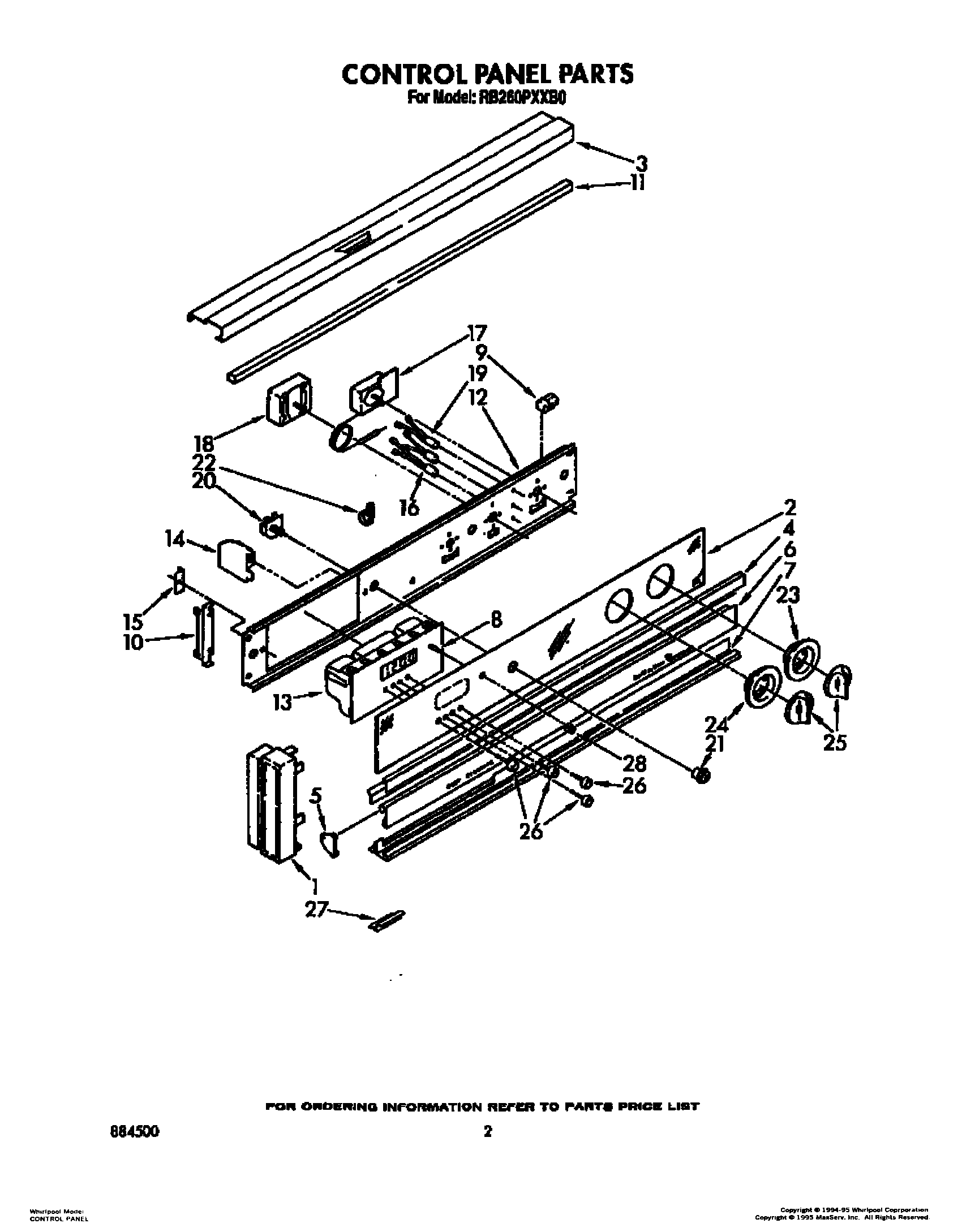

RB260PXXW0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	WPL LIT3148598
	1
	WPL LIT3185069
	WPL LIT3149600
	WPL LIT313358
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL LIT884500
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
1	End Cap. L.H.
1	End Cap (R.H.)
2	Glass, Control Panel (Black)
2	Glass, Control Panel (White)
3	WP488627 Whirlpool Refrigerator Screw
3	Rail, Top
4	Trim, Center (Black)
4	Trim, Center (Brushed Chrome)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
6	Door, Vent (Brushed Chrome)
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Shaft, Bit Generator
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
11	Seal, Backguard
12	Bracket, Control
13	Timer, Digital (Includes Knobs)
13	Timer
14	Shield, Timer (2)
15	Bracket, Timer (2)
16	Light, Indicator Standard Clean
17	Thermostat, Oven
17	screw, 6-32 x 1/4 (2)
18	Selector Switch
18	WP486579 Whirlpool Air Conditioner Screw
19	Indicator Light (4)
20	White Model
20	Lockwasher
20	Switch, Oven Light
21	Bezel Switch (1)
21	Bezel, Switch (White)
22	Screw (2)
22	WP308605 Whirlpool Refrigerator Clamp
23	Escutcheon, Thermostat Upper Oven (White)
23	Escutcheon, Thermostat
24	WP311068 Whirlpool Dial Knob Black
24	Screw,
25	WP3150371 Whirlpool Control Knob
25	Knob, Control (2)
26	WPL 313958
26	WPL 3149177
27	Bracket (2)
28	Knob, Bit Generat
28	Knob, Bit Generator (Black)
