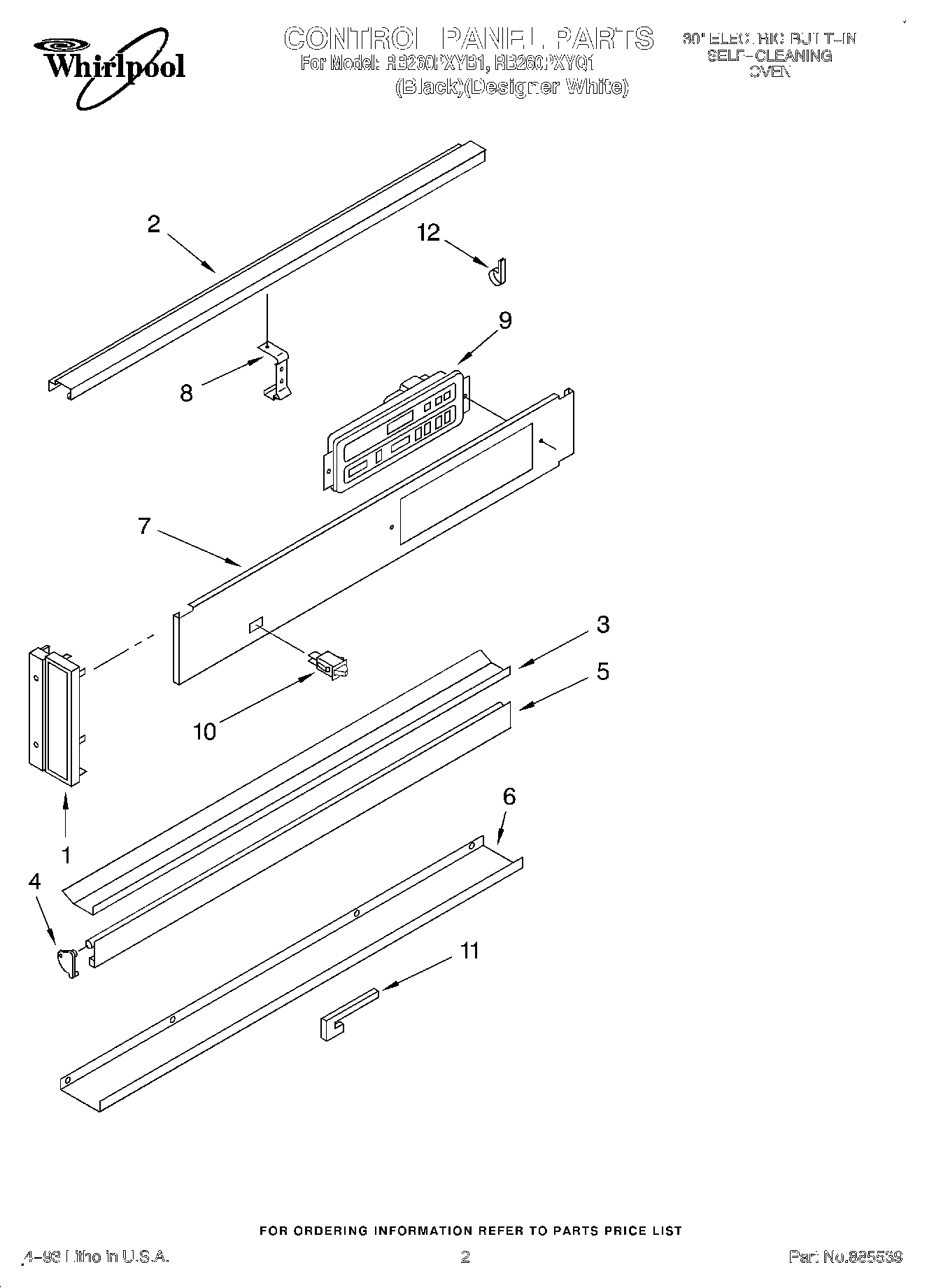

RB260PXYB1 01 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T11:42:15+00:00RB260PXYB1 01 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Repair Parts List |
| Brochure |
| WPL 3171507 |
| Installation Instructions |
| Tech Sheet |
| Use & Care Guide |
| 1 | End Cap. L.H. |
| 1 | End Cap (R.H.) |
| 2 | WP488627 Whirlpool Refrigerator Screw |
| 2 | Rail, Top |
| 3 | Trim, Center (Black Model) |
| 3 | Trim, Center (White Model) |
| 4 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 4 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 4 | End Trim, Vent (Left Side) |
| 4 | End Trim, Vent (Right Side) |
| 5 | Door, Vent (Brushed Aluminum) |
| 5 | Door, Vent (Black) |
| 6 | Screw, 10-32 x 1/2 |
| 6 | Trim, Bottom |
| 7 | Control Panel (White Model) |
| 7 | Control Panel (Black Model) |
| 8 | Screw |
| 8 | Bracket, Stiffener |
| 9 | Control, Electronic (Black) |
| 9 | Control, Electronic (White) |
| 10 | Switch, Rocker |
| 10 | Switch, Rocker (White) |
| 11 | Shield, Air |
| 11 | Screw (2) |
| 12 | 488946 Whirlpool Air Conditioner Clamp |
