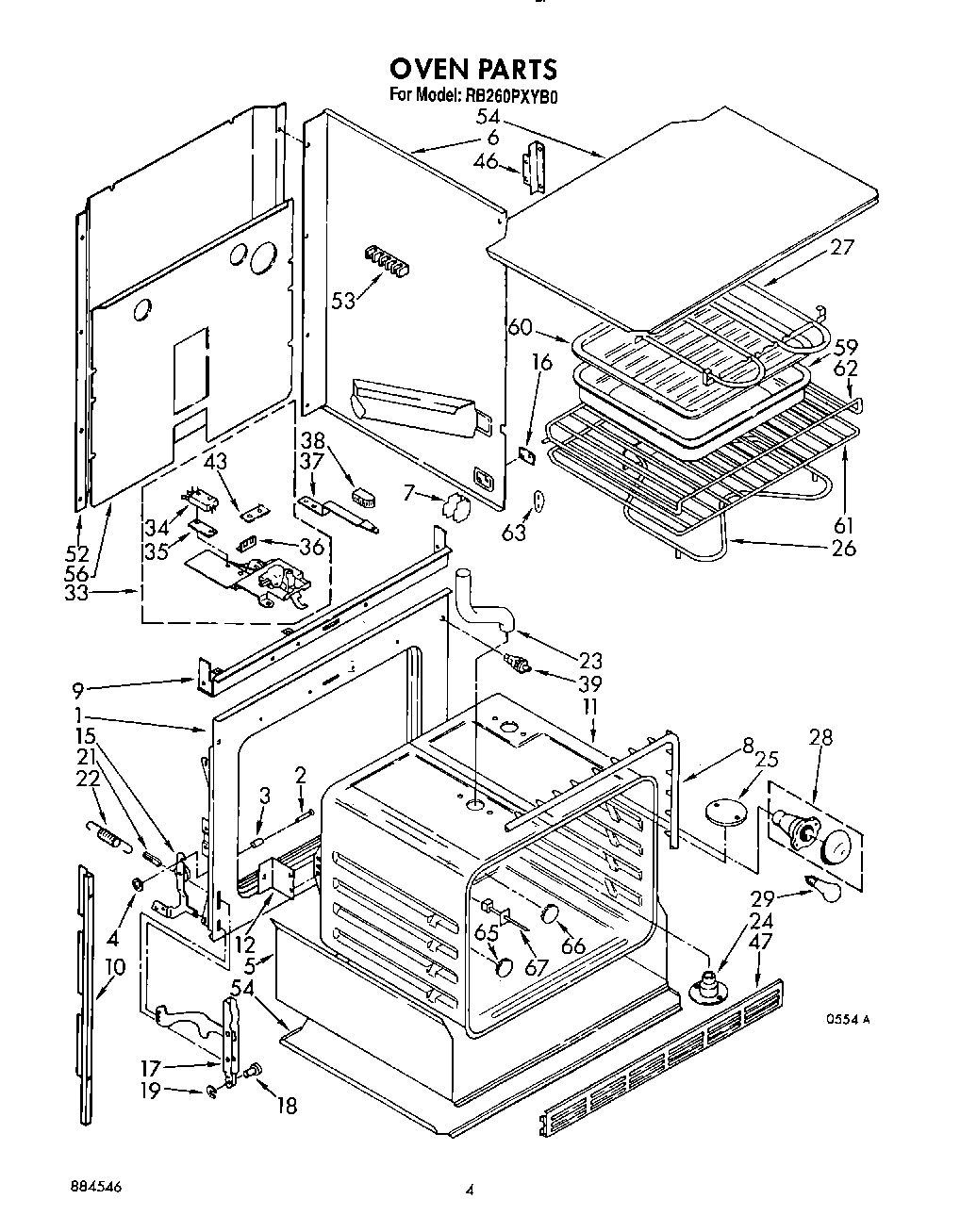

RB260PXYQ0 03 – OVEN
Written by
in
RB260PXYQ0 03 – OVEN
Products
Position
Product
1
Frame, Front
2
Pin, Hinge Ear (2)
3
Snubber, Door (2)
4
Pushnut (2)
5
Insulation Tray
6
Side Wrapper (L.H.)
6
Side Wrapper (R.H.)
7
Support, Side Wrapper (4)
8
WPL 3185197
9
Baffle, Top Insulation
10
Side Trim (Left Side)
10
Side Trim (Right Side)
11
Oven 30“
12
Bracket, Oven Mounting (2)
15
Hinge Ear, L.H.
15
Hinge Ear, R.H.
16
Plate, Side Panel (2)
16
WP308544 Whirlpool Screw
17
Channel Arm (2)
18
WP307986 Whirlpool Hinge Pin
19
Retainer Ring (2)
21
WP308125 Whirlpool Microwave Range/Cooktop Anchor
22
WP308126 Whirlpool Door Spring
23
SCREW
23
Vent, Extension (2)
23
Screw (2)
24
Eliminator, Smoke
25
WPL 310662
26
ELMNT-BAKE
27
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27
Screw (2)
28
W11594027 Whirlpool Range Oven Light Socket
29
RANGE ONLY 40W 120V APPL BULB
33
Latch Assembly
33
Screw (3)
34
Screw
34
Safety Switch
36
Shield, Latch
36
Screw
37
Latch, Handle
37
Screw
38
Screw
38
Knob, Latch Handle
39
Switch, Door
43
Insulator, Switch
46
Screw, 10A x 1/2 (2) (Black)
46
WP488627 Whirlpool Refrigerator Screw
46
WPL 310719
47
Grill, Bottom (Screw (3))
47
Grill, Bottom
47
Bottom Grill (White)
52
WPL 311011
53
WP112432 Whirlpool Nut Assembly
53
Screw (10-12 x .875)
53
WP8203546 Whirlpool Terminal Block
54
WPL 310458
56
Panel, Back
56
WP488729 Whirlpool Refrigerator Door Screw
60
4396923 Whirlpool Broil Pan Set Gray Porcelain
61
WPL 308173
62
WPL 308172
63
WPL 3183005
65
Button, Plug
66
WPL 3185086
67
Sensor, Heat
67
Screw (3)
67
WPL 310433
67
WPL 310435
67
WPL 3149328
←
