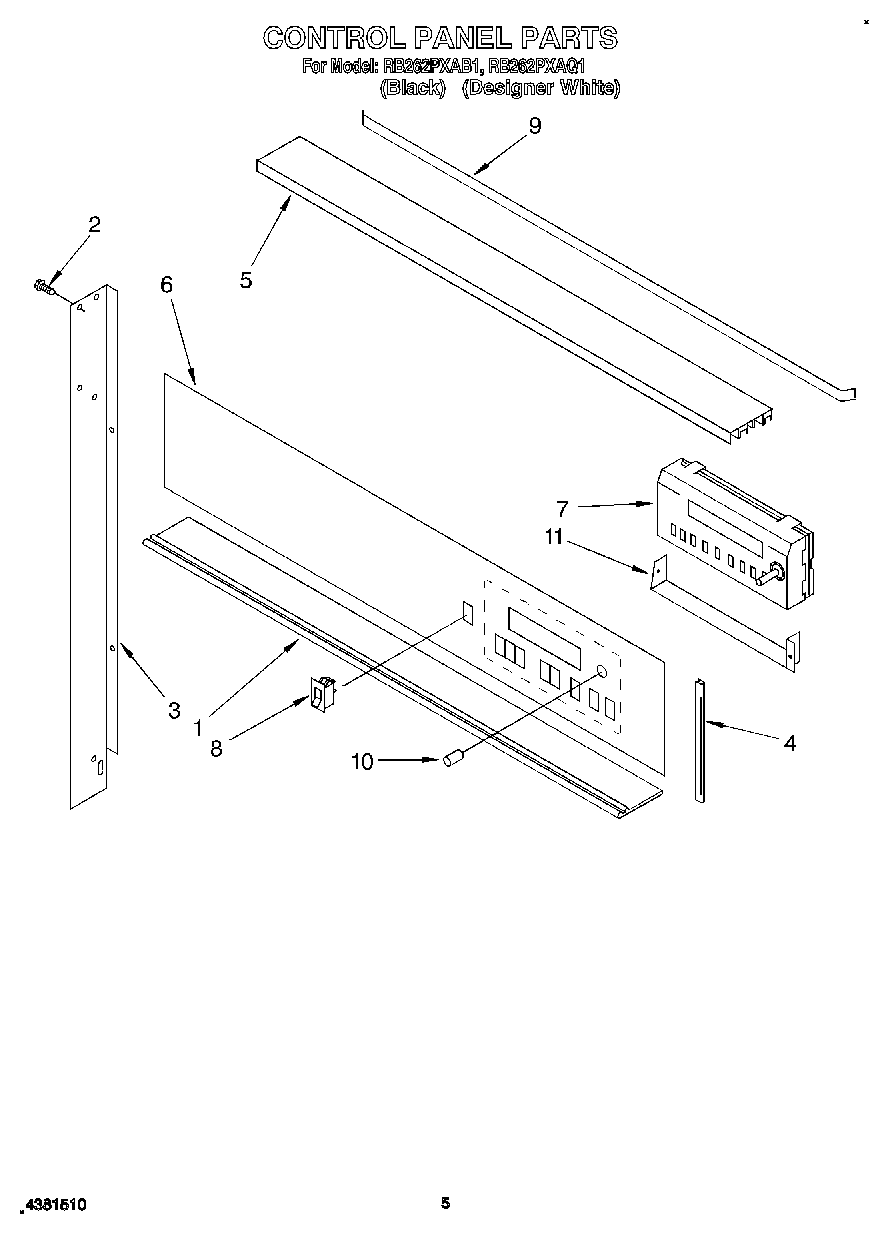

RB262PXAB1 03 – CONTROL PANELadmin2025-04-26T11:30:38+00:00RB262PXAB1 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Trim, Vent (White Model) |
| 1 | Trim, Vent (Black Model) |
| 2 | Screw, Trim (15) (White) |
| 2 | Screw, Trim (15) (Black) |
| 3 | Trim, Side Left (Black Model) |
| 3 | Trim, Side Left (Black Model) |
| 3 | Trim, Side Left (White Model) |
| 3 | Trim, Side Left (White Model Right) |
| 4 | Trim, Control Panel (White Model) |
| 4 | Trim, Control Panel (Black Model) |
| 5 | Trim, Top (Black Model) |
| 5 | Trim, Top (White Model) |
| 6 | Panel, Control (Black Model) |
| 6 | Panel, Control (White Model) |
| 7 | Timer, Electronic |
| 7 | 489392 Whirlpool Refrigerator Screw |
| 8 | WP4314961 Whirlpool Lite Switch |
| 9 | Trim, Filler (White Model) |
| 9 | Trim, Filler (Black Model) |
| 10 | Knob, Clock (Black Model) |
| 10 | Knob, Clock (White Model) |
| 11 | Shield, Timer |
