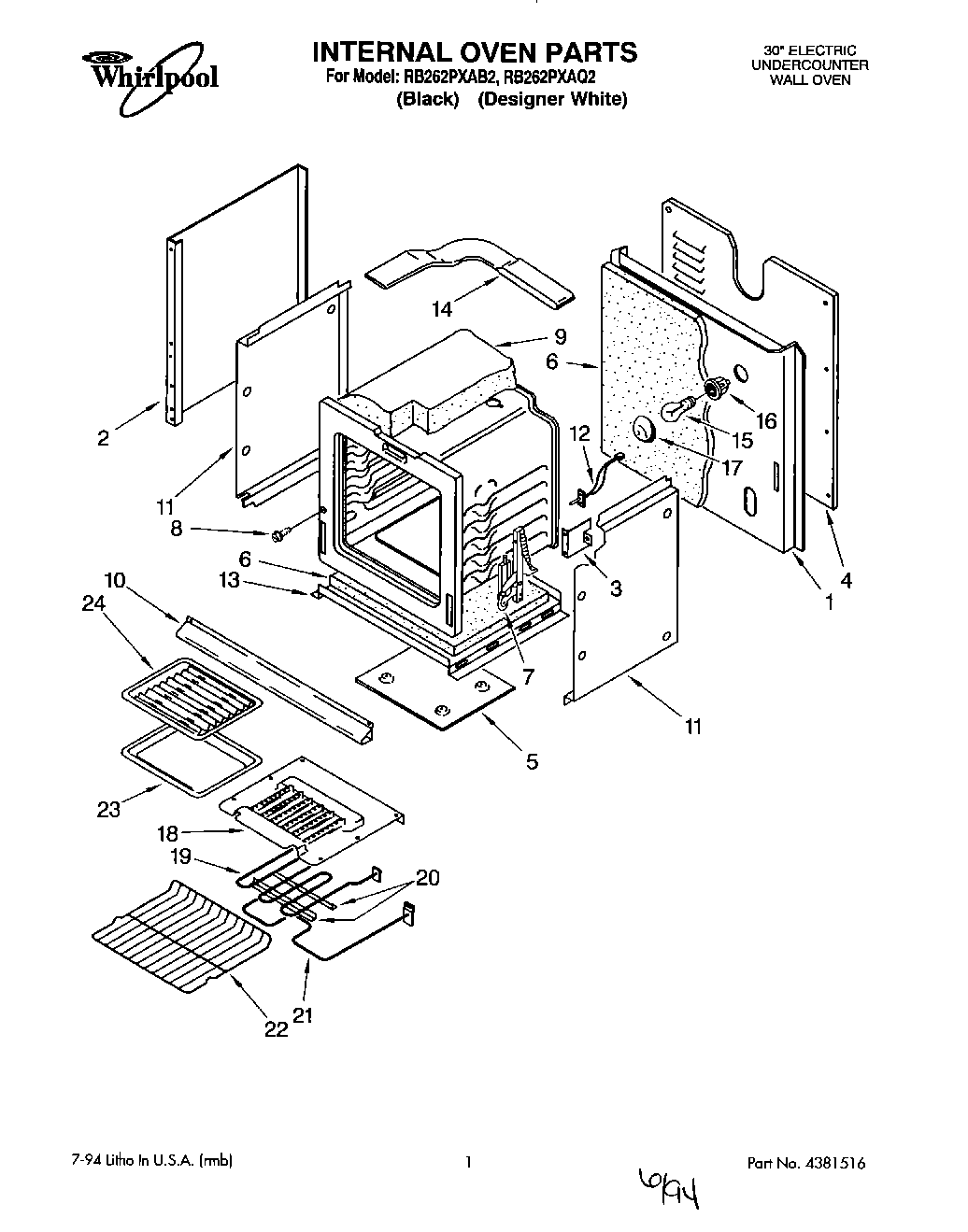

RB262PXAB2 01 – INTERNAL OVEN, OPTIONAL

Products

Position	Product
1	Back, Main
2	Panel, Side (2)
3	Support, Oven (2)
4	Cover, Rear
5	Shield, Heat
6	WPW10208653 Whirlpool Insulation
7	Hinge, Door (2)
8	WP4159193 Whirlpool Screw
9	Insulation, Wrap
10	Shield, Lower Vent (White Model)
10	Shield, Lower Vent (Black Model)
11	Retainer, Insulation (2)
12	12001656 Whirlpool Range Oven Temperature Sensor
13	Bottom, Main
14	Tube, Oven Vent
15	RANGE ONLY 40W 120V APPL BULB
16	W11594027 Whirlpool Range Oven Light Socket
18	Screw (6)
18	Baffle, Broil
19	Element, Broil
20	Support, Element
21	WP74003020 Whirlpool Range Bake Element
22	Rack, Oven (2)
23	4396923 Whirlpool Broil Pan Set Gray Porcelain
24	FOIL, ALUMINUM OVEN (18“ X 25 )
24	Wire, 25` Roll (Black 14 Ga.)
24	Wire, 25“ Roll (White 14 GA.)
24	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24	242831 Whirlpool Oven Wire
24	Wire (14 Ga. 150 c Blue)
24	Wire (14 Ga. 150 c Brown)
24	Wire (14 Ga. 150 c Green)
24	Wire (14 Ga. 150 c Orange)
24	Wire (14 Ga. 150 c Yellow)
24	Wire (12 Ga. 150 c Black)
24	18 Ga. 80~c Rating (Red)
24	Wire (14 Ga. 200 c Brown)
24	1
24	8212471 Whirlpool Oven Paint
24	Grease
