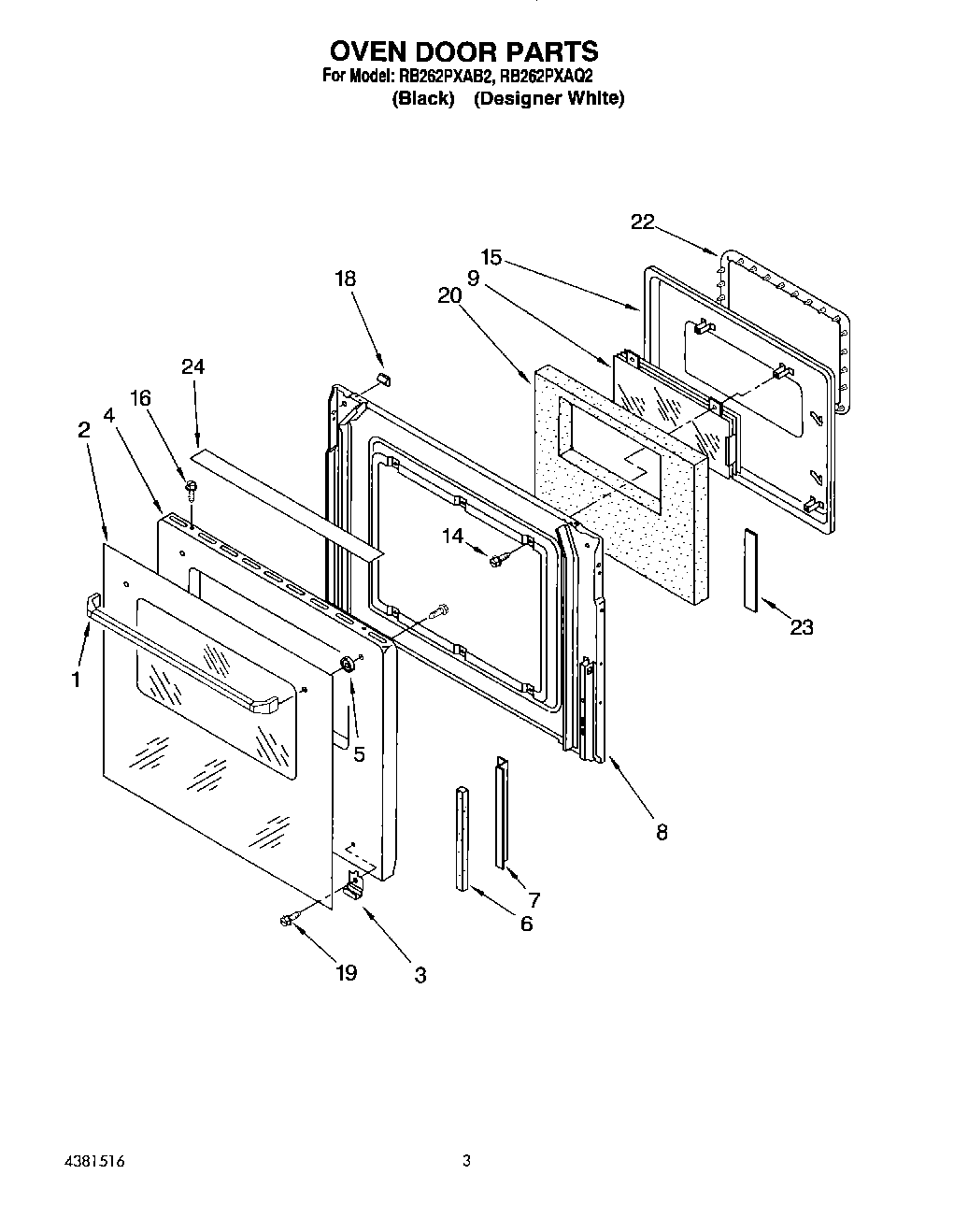

RB262PXAB2 02 – OVEN DOOR, LITERATURE

Products

Position	Product
	Tech Sheet
	Installation Instructions
	Use & Care Guide
1	Handle, Door (Black Model)
1	Handle, Door (White Model)
1	Handle, Door (Screw, Handle (2))
2	Glass, Outer (White Model)
2	Glass, Outer (Black Model)
3	Clip, Glass Retainer (2) (White Model)
3	Clip, Glass Retainer (2) (Black Model)
4	Panel, Door (White Model Screw, Panel (2))
4	Panel, Door (Black Model)
5	Spacer, Glass (2)
6	Seal, Foam (2)
7	Channel, Air (2)
8	Baffle, Door
9	Window Pak
14	Screw, Brkt. (2)
15	Liner, Door
16	Screw, Trim (15) (Black)
16	Screw, Panel (2) (White Model)
18	Spacer, Rubber (3)
19	Screw, Clip (2)
20	Insulation, Door
22	Gasket, Door
23	Seal, Glass
24	Tape, Foil
