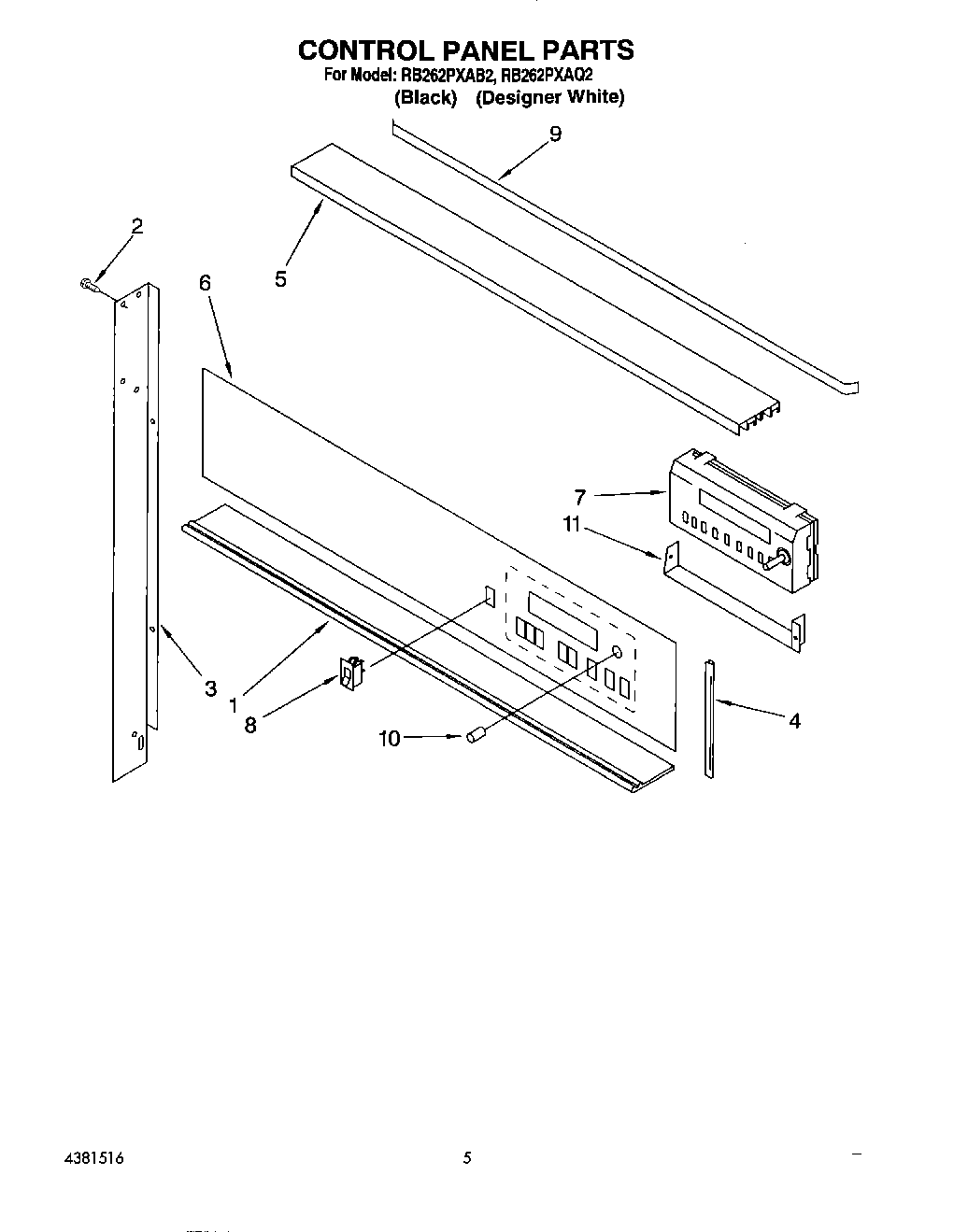

RB262PXAB2 03 – CONTROL PANEL

Products

Position	Product
1	Trim, Vent (White Model)
1	Trim, Vent (Black Model)
2	Screw, Trim (15) (Black)
2	Screw, Trim (15) (White)
3	Trim, Side Left (White Model Right)
3	Trim, Side Left (Black Model)
3	Trim, Side Left (White Model)
3	Trim, Side Left (Black Model)
4	Trim, Control Panel (Black Model)
4	Trim, Control Panel (White Model)
5	Trim, Top (White Model)
5	Trim, Top (Black Model)
6	Panel, Control (Black Model)
6	Panel, Control (White Model)
7	489392 Whirlpool Refrigerator Screw
7	Timer, Electronic
8	WP4314961 Whirlpool Lite Switch
9	Trim, Filler (White Model)
9	Trim, Filler (Black Model)
10	Knob, Clock (Black Model)
10	Knob, Clock (White Model)
11	Shield, Timer
