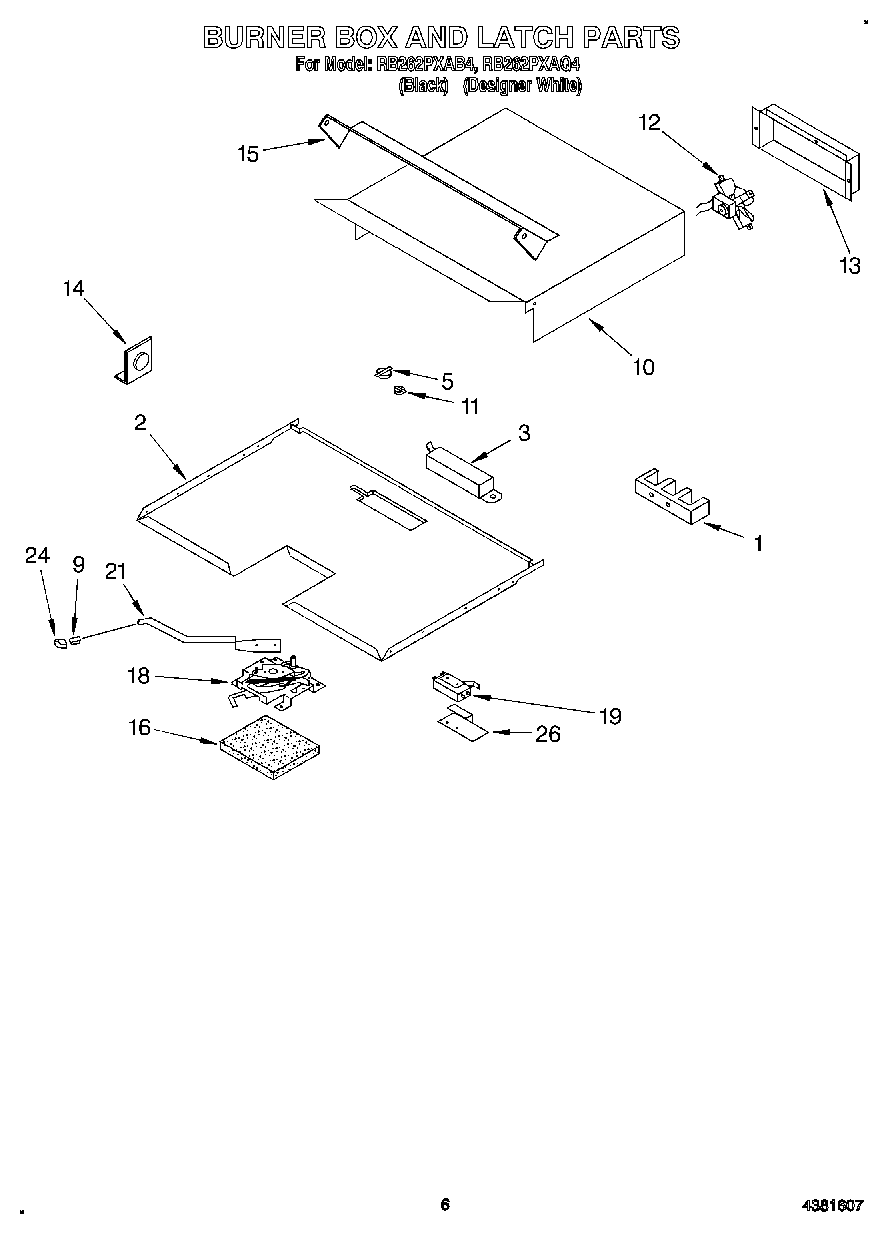

RB262PXAB4 04 – BURNER BOX AND LATCH

RB262PXAB4 04 – BURNER BOX AND LATCH

Written by

in

RB262PXAB4 04 – BURNER BOX AND LATCH

Products

PositionProduct
1WPW10245259 Whirlpool Terminal Block
2Retainer, Insulation (Top)
3Cover, Wire
5Shield, Timer
5Switch, Limit
9Clip, Handle
10Housing, Fan
11WP7403P316-60 Whirlpool High Switch
12Fan Assembly
13Cover, Fan
14Plate, Conduit
15Cover, Fan Housing
16Insulation, Latch
18Latch Assembly
19Screw, Switch (2)
19Switch, Latch
21Bolt
21Handle, Latch
21Screw, Handle
24Knob, Latch Handle (Black Model)
24Knob, Latch Handle (White Model)
26Shield, Switch
