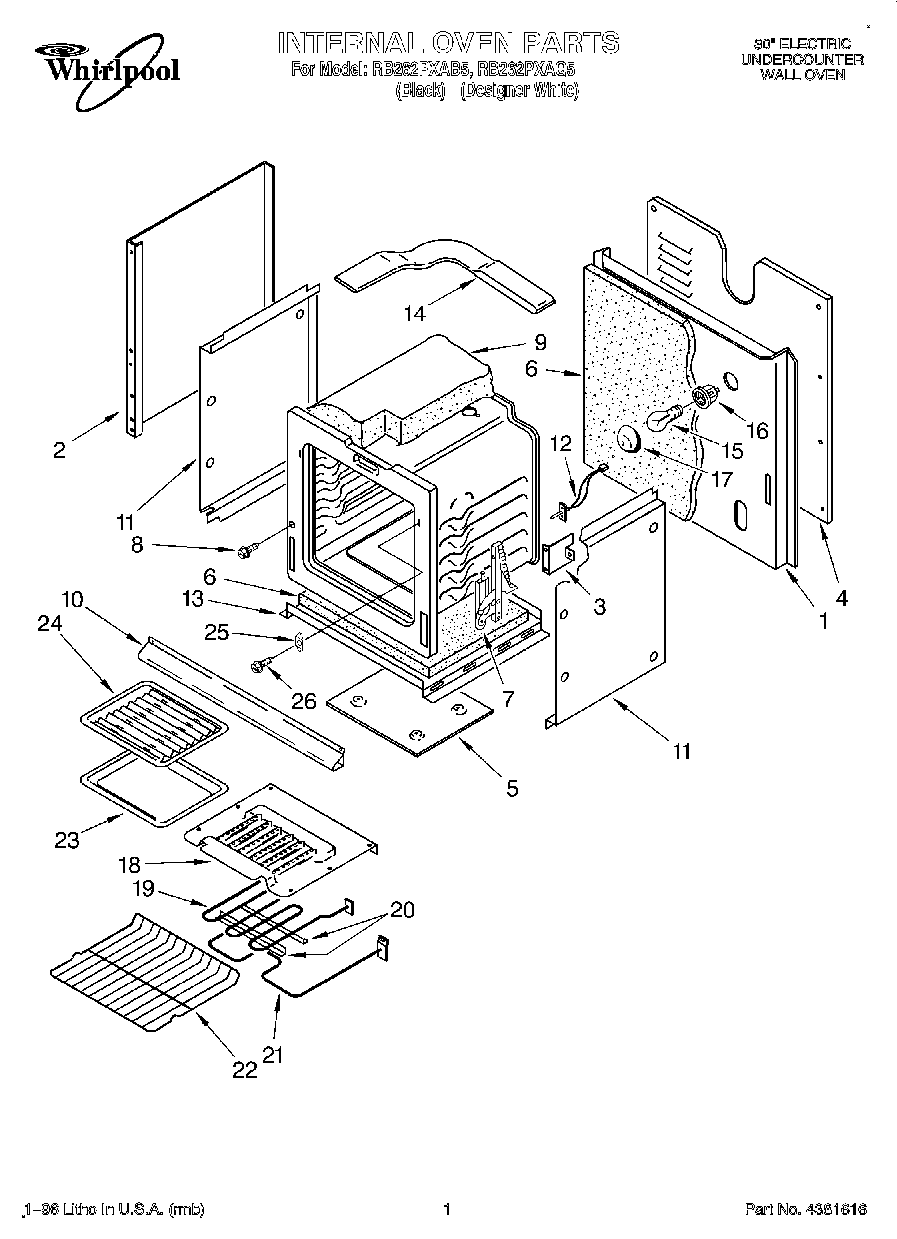

RB262PXAB5 01 – INTERNAL OVEN, OPTIONAL

RB262PXAB5 01 – INTERNAL OVEN, OPTIONAL

Written by

in

RB262PXAB5 01 – INTERNAL OVEN, OPTIONAL

Products

PositionProduct
1Back, Main
2Panel, Side (2)
3Support, Oven (2)
4Cover, Rear
5Shield, Heat
6WPW10208653 Whirlpool Insulation
7Hinge, Door (2)
8WP4159193 Whirlpool Screw
9Insulation, Wrap
10Shield, Lower Vent (White Model)
10Shield, Lower Vent (Black Model)
11Retainer, Insulation (2)
1212001656 Whirlpool Range Oven Temperature Sensor
13Bottom, Main
14Tube, Oven Vent
15RANGE ONLY 40W 120V APPL BULB
16W11594027 Whirlpool Range Oven Light Socket
18Screw (6)
18Baffle, Broil
19Element, Broil
20Support, Element
21WP74003020 Whirlpool Range Bake Element
22Rack, Oven (2)
234396923 Whirlpool Broil Pan Set Gray Porcelain
25Adapter, Mounting (Black Model)
25Adapter, Mounting (White Model)
26Grease
26W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
26Wire, 25` Roll (Black 14 Ga.)
26FOIL, ALUMINUM OVEN (18“ X 25 )
26Wire, 25“ Roll (White 14 GA.)
26Screw, Adapter (Black Model)
26242831 Whirlpool Oven Wire
26Wire (14 Ga. 150 c Blue)
268212471 Whirlpool Oven Paint
261
2618 Ga. 80~c Rating (Red)
26Wire (12 Ga. 150 c Black)
26Wire (14 Ga. 200 c Brown)
26Wire (14 Ga. 150 c Yellow)
26Wire (14 Ga. 150 c Orange)
26Wire (14 Ga. 150 c Green)
26Wire (14 Ga. 150 c Brown)
26Screw, Adapter (White Model)
