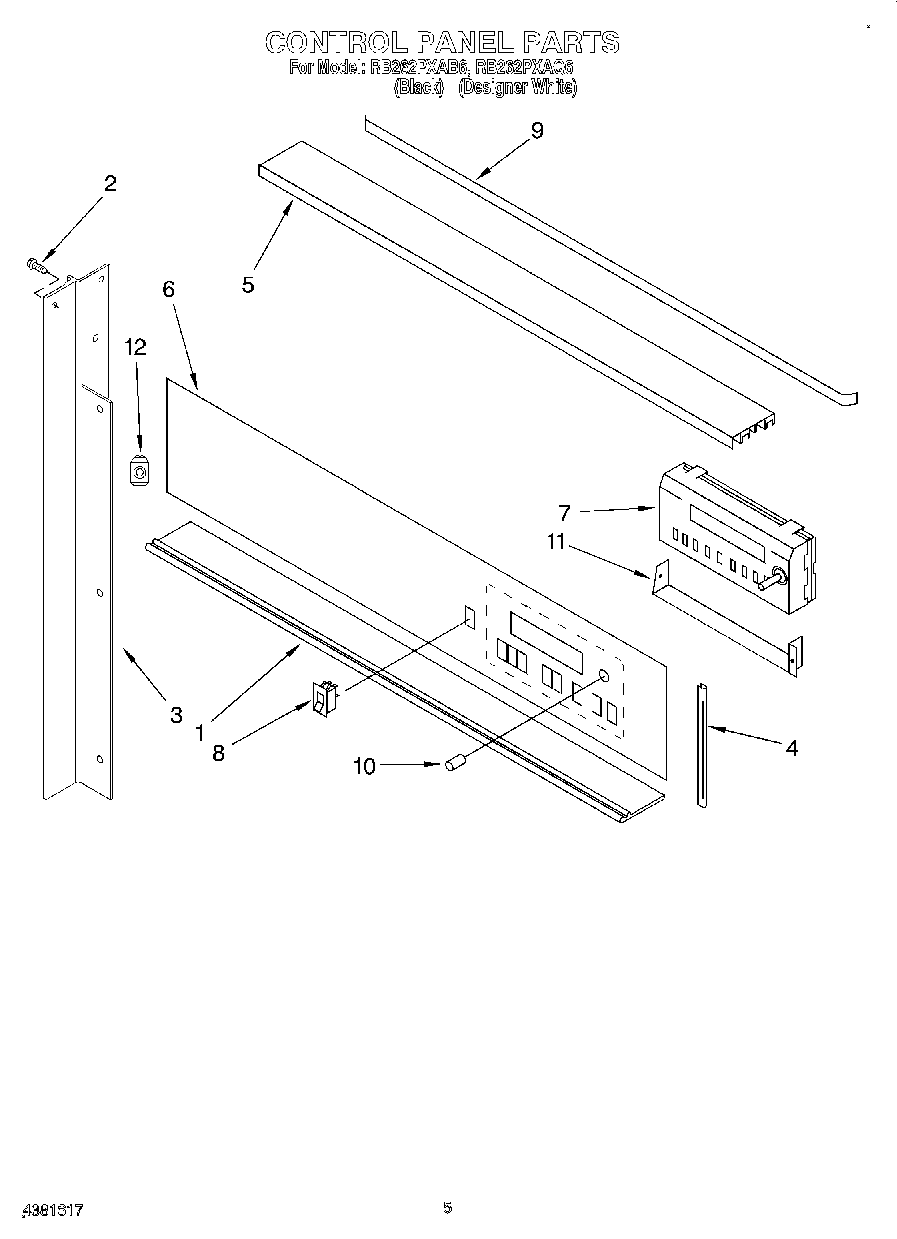

RB262PXAB6 03 – CONTROL PANEL

Products

Position	Product
1	Trim, Vent (White Model)
1	Trim, Vent (Black Model)
2	Screw, Trim (Black No.8 x 1/4)
2	Screw, Trim (White No.10 x 1“)
2	Screw, Trim (15) (White)
2	Screw, Trim (Black No.10 x 1“)
3	Trim, Side (Left) (Black Model)
3	Trim, Side (White Model, Left)
3	Trim, Side (White Model, Right)
3	Trim, Side (Black Model, Right)
4	Trim, Control Panel (White Model)
4	Trim, Control Panel (Black Model)
5	Trim, Top (White Model)
5	Trim, Top (Black Model)
6	Panel, Control (Black Model)
6	Panel, Control (White Model)
7	489392 Whirlpool Refrigerator Screw
7	Timer, Electronic
8	WP4314961 Whirlpool Lite Switch
9	Trim, Filler (White Model)
9	Trim, Filler (Black Model)
10	Knob, Clock (White Model)
10	Knob, Clock (Black Model)
11	Shield, Timer
12	Spacer, Trim (2) (Black Model)
12	Spacer, Trim (2) (White Model)
