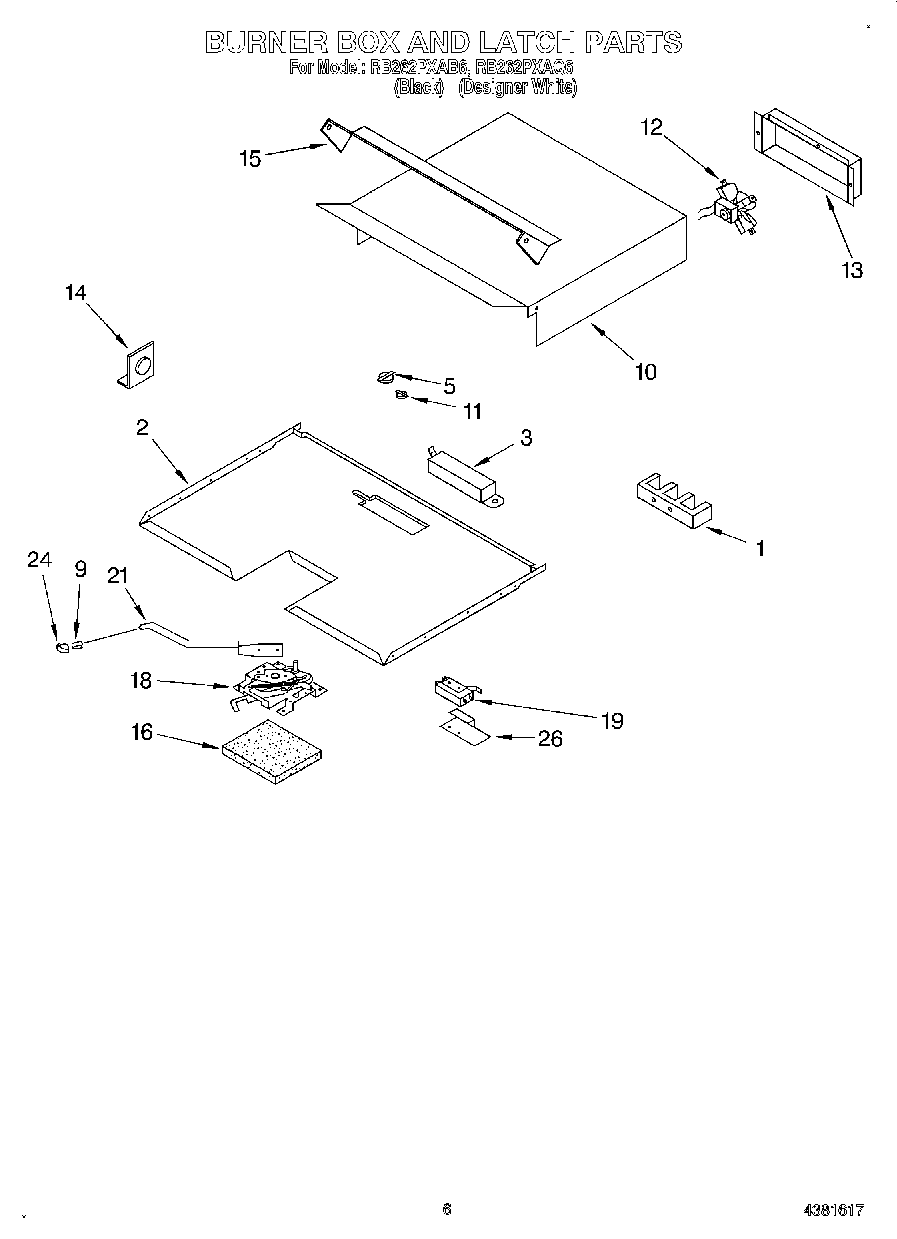

RB262PXAB6 04 – BURNER BOX AND LATCHadmin2025-04-26T11:35:40+00:00RB262PXAB6 04 – BURNER BOX AND LATCH
Products
| Position | Product |
|---|
| 1 | WPW10245259 Whirlpool Terminal Block |
| 2 | Retainer, Insulation (Top) |
| 3 | Cover, Wire |
| 5 | Shield, Timer |
| 5 | Switch, Limit |
| 9 | Clip, Handle |
| 10 | Housing, Fan |
| 11 | WP7403P316-60 Whirlpool High Switch |
| 12 | Fan Assembly |
| 13 | Cover, Fan |
| 14 | Plate, Conduit |
| 15 | Cover, Fan Housing |
| 16 | Insulation, Latch |
| 18 | Latch Assembly |
| 19 | Screw, Switch (2) |
| 19 | Switch, Latch |
| 21 | Bolt |
| 21 | Handle, Latch |
| 21 | Screw, Handle |
| 24 | Knob, Latch Handle (Black Model) |
| 24 | Knob, Latch Handle (White Model) |
| 26 | Shield, Switch |
