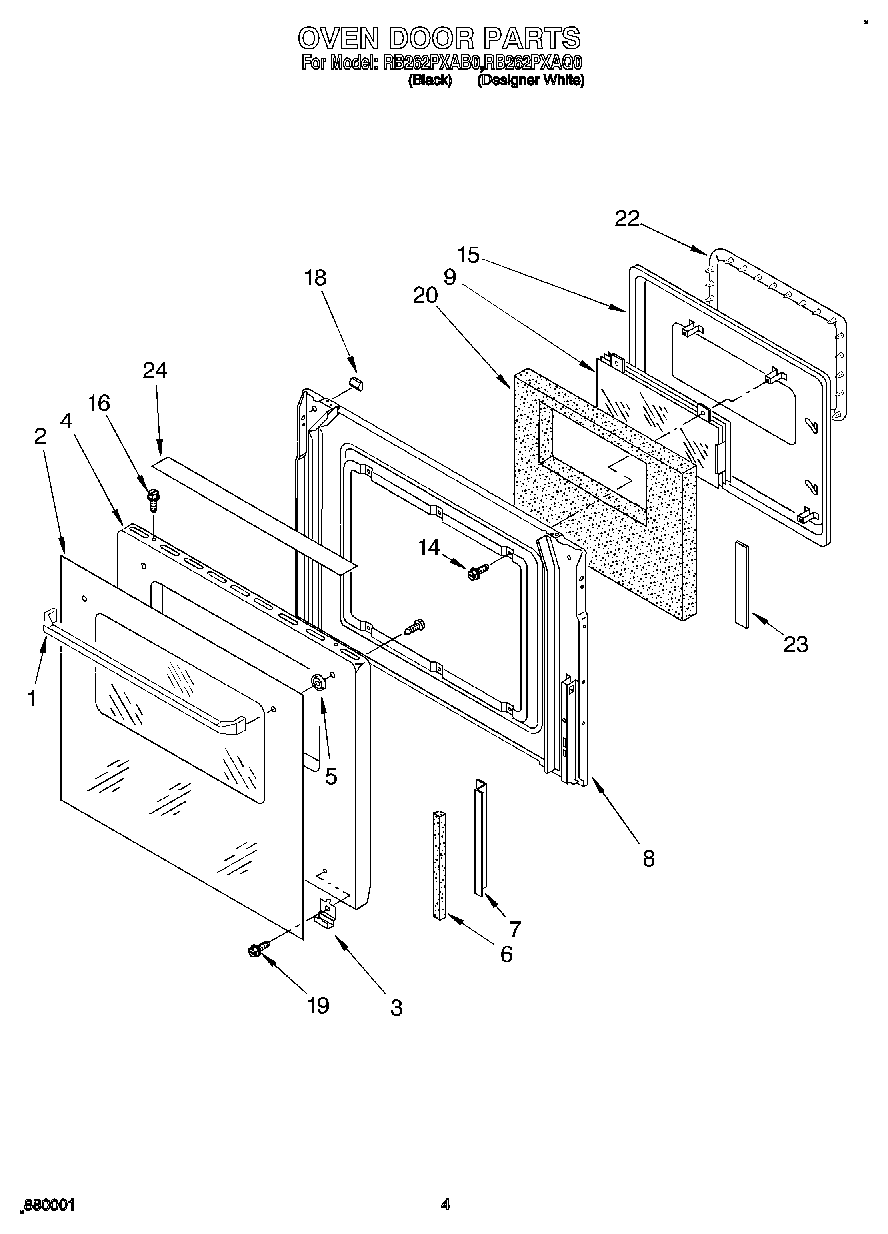

RB262PXAQ0 03 – OVEN DOOR, LITERATUREadmin2025-04-26T11:35:39+00:00RB262PXAQ0 03 – OVEN DOOR, LITERATURE
Products
| Position | Product |
|---|
| Tech Sheet |
| Installation Instructions |
| Use & Care Guide |
| 1 | Handle, Door (White Model) |
| 1 | Handle, Door (Black Model) |
| 1 | Handle, Door (Screw, Handle (2)) |
| 2 | Glass, Outer (Black Model) |
| 2 | Glass, Outer (White Model) |
| 3 | Clip, Glass Retainer (2) (White Model) |
| 3 | Clip, Glass Retainer (2) (Black Model) |
| 4 | Panel, Door (White Model Screw, Panel (2)) |
| 4 | Panel, Door (Black Model) |
| 5 | Spacer, Glass (2) |
| 6 | Seal, Foam (2) |
| 7 | Channel, Air (2) |
| 8 | Screw, Brkt. (2) |
| 8 | Baffle, Door |
| 9 | Window Pak |
| 15 | Liner, Door |
| 16 | Screw, Trim (15) (Black) |
| 16 | Screw, Panel (2) (White Model) |
| 18 | Spacer, Rubber (3) |
| 19 | Screw, Clip (2) |
| 20 | Insulation, Door |
| 22 | Gasket, Door |
| 23 | Seal, Glass |
| 24 | Tape, Foil |
