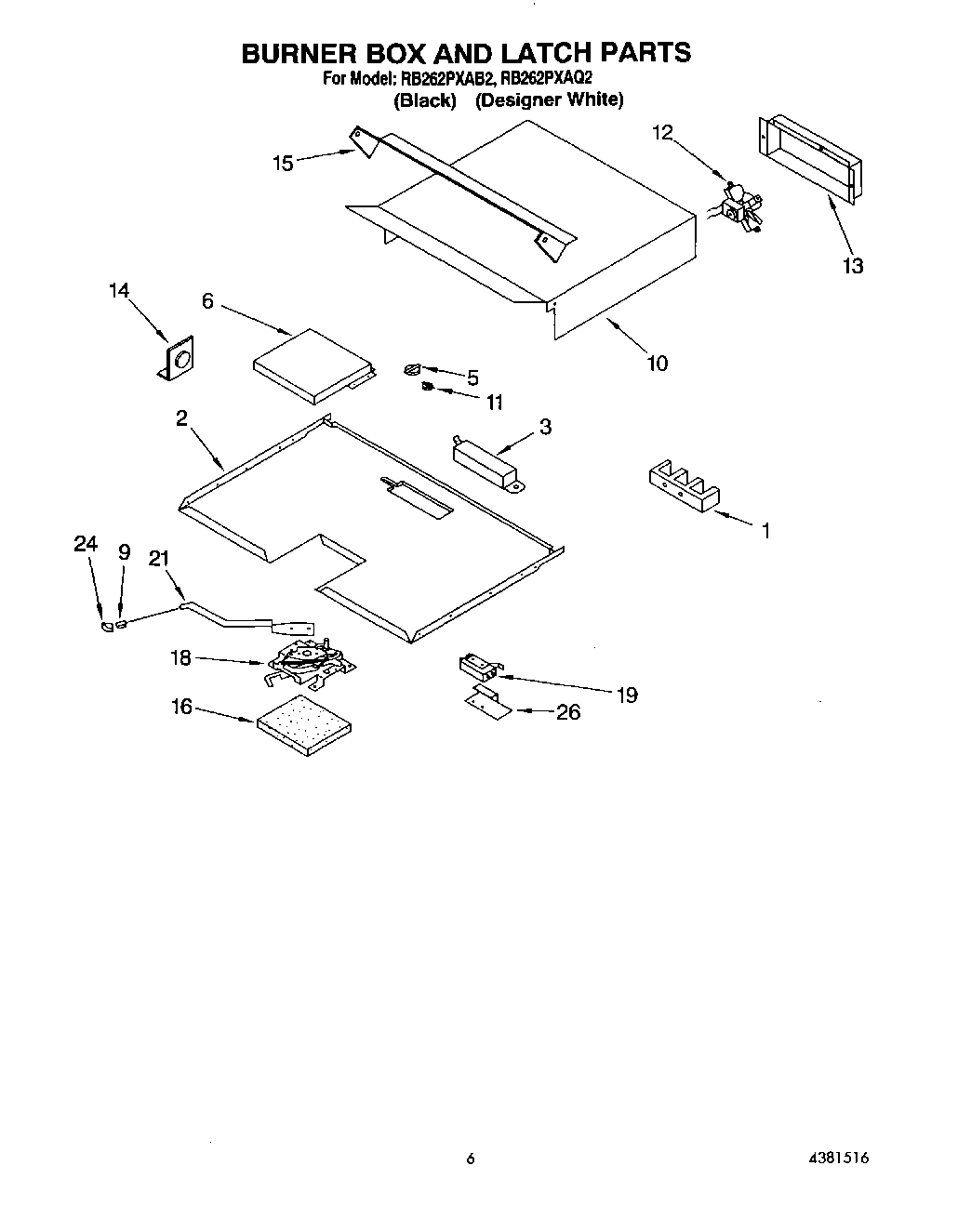

RB262PXAQ2 04 – BURNER BOX AND LATCH

RB262PXAQ2 04 – BURNER BOX AND LATCH

Written by

in

RB262PXAQ2 04 – BURNER BOX AND LATCH

Products

PositionProduct
1WPW10245259 Whirlpool Terminal Block
2Retainer, Insulation (Top)
3Cover, Wire
5Switch, Limit
5Shield, Timer
6Cover, Latch
9Clip, Handle
10Housing, Fan
11WP7403P316-60 Whirlpool High Switch
12Fan Assembly
13Cover, Fan
14Plate, Conduit
15Cover, Fan Housing
16Insulation, Latch
18Latch Assembly
19Switch, Latch
19Screw, Switch (2)
21Bolt
21Handle, Latch
21Screw, Handle
24Knob, Latch Handle (White Model)
24Knob, Latch Handle (Black Model)
26Shield, Switch
