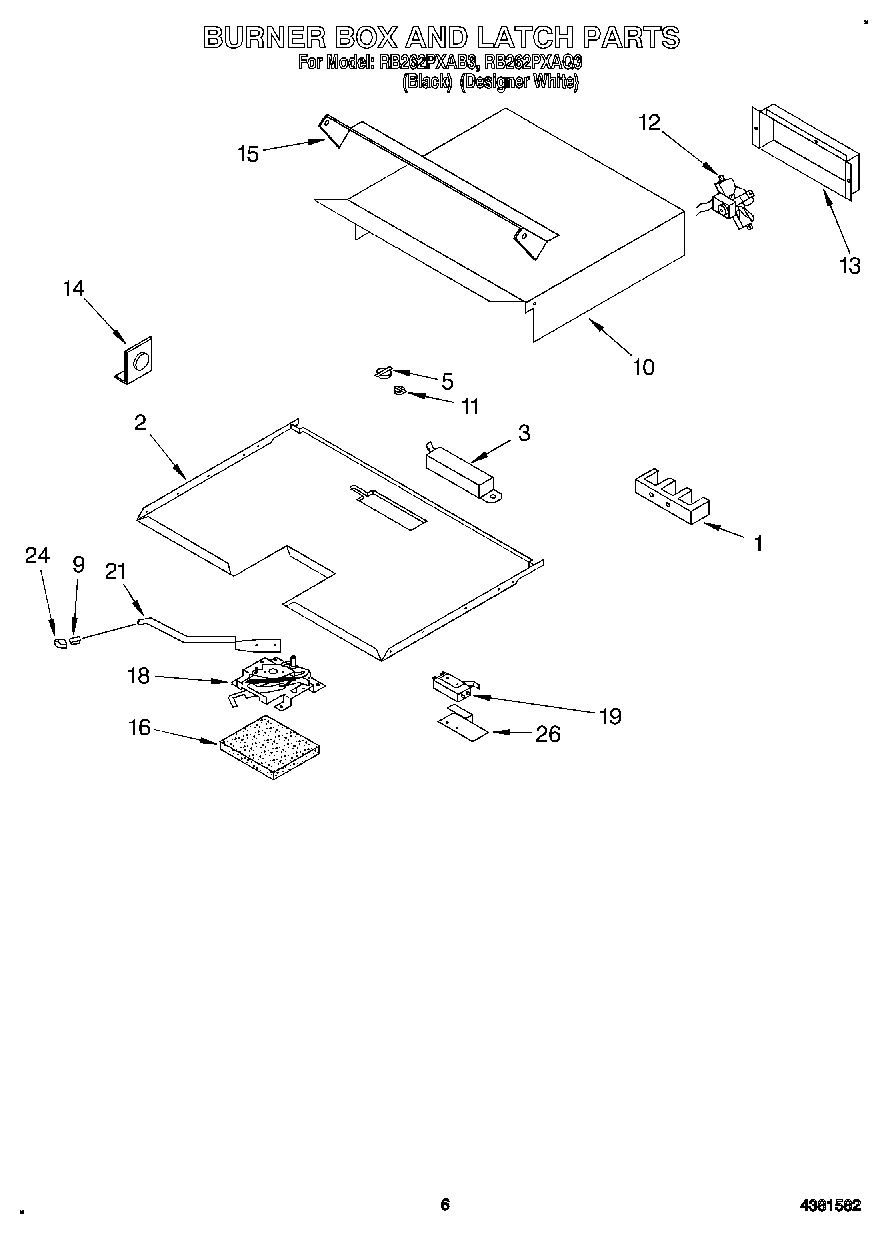

RB262PXAQ3 04 – BURNER BOX AND LATCH

Products

Position	Product
1	WPW10245259 Whirlpool Terminal Block
2	Retainer, Insulation (Top)
3	Cover, Wire
5	Shield, Timer
5	Switch, Limit
9	Clip, Handle
10	Housing, Fan
11	WP7403P316-60 Whirlpool High Switch
12	Fan Assembly
13	Cover, Fan
14	Plate, Conduit
15	Cover, Fan Housing
16	Insulation, Latch
18	Latch Assembly
19	Screw, Switch (2)
19	Switch, Latch
21	Bolt
21	Handle, Latch
21	Screw, Handle
24	Knob, Latch Handle (Black Model)
24	Knob, Latch Handle (White Model)
26	Shield, Switch
