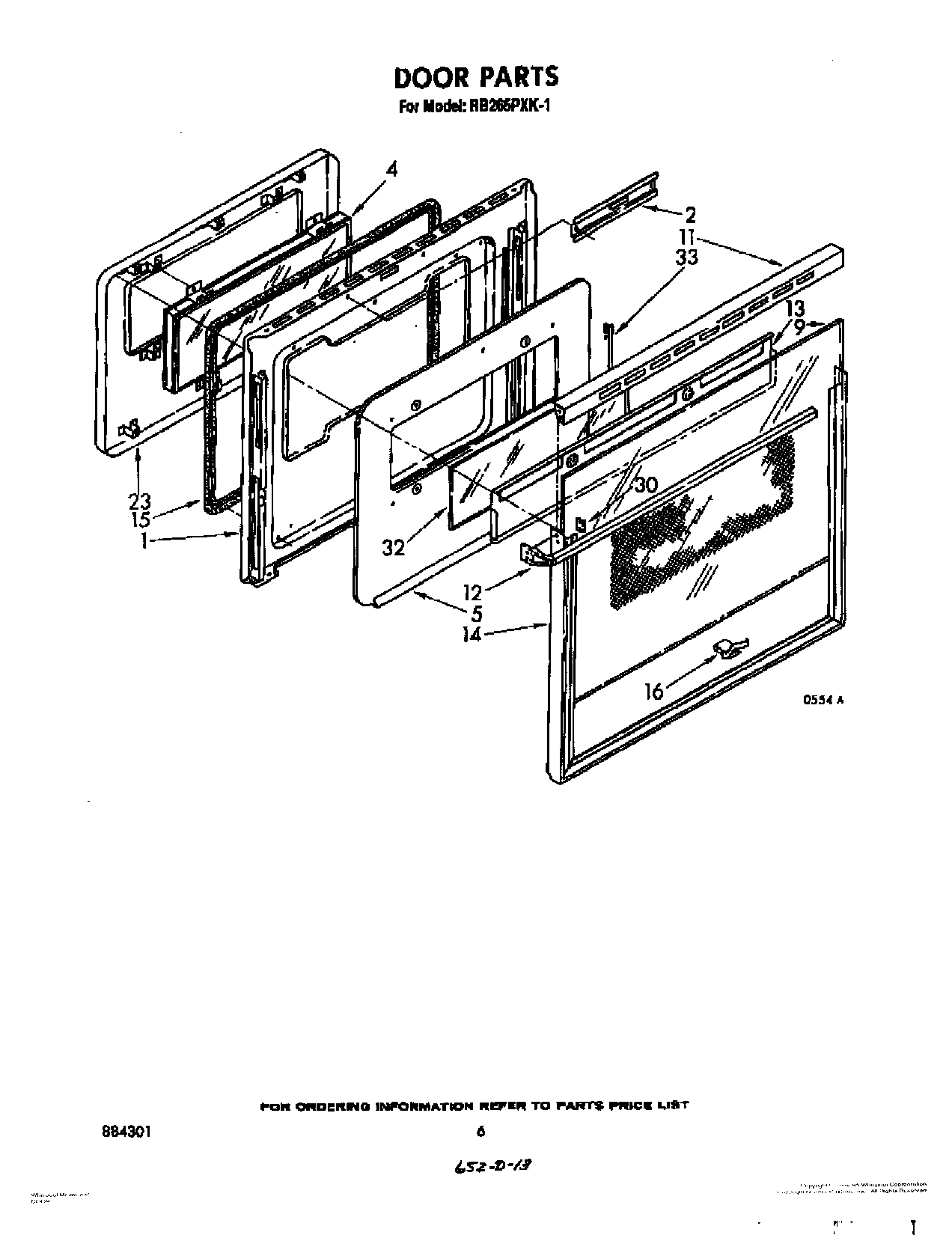

RB265PXK1 04 – DOOR

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	Screw (2)
2	Channel, Latch
4	Window Package
5	Retainer, Insulation
9	Glass, Outer
11	Top, Door Frame
12	WP355515 Whirlpool Screw
12	WP912618 Whirlpool Dishwasher Screw
12	Handle, Oven Door
13	Baffle, Heat
13	WP90296 Whirlpool Clip
14	frame, door 30“
14	Screw, 10A x 1/2 (2) (Black)
15	Seal, Fiberglass
16	clip, glass (10)
23	Panel, Inner
30	Clip (2)
32	Glass (6.81“ x 18.31“)
33	Retainer, Glass (2)
