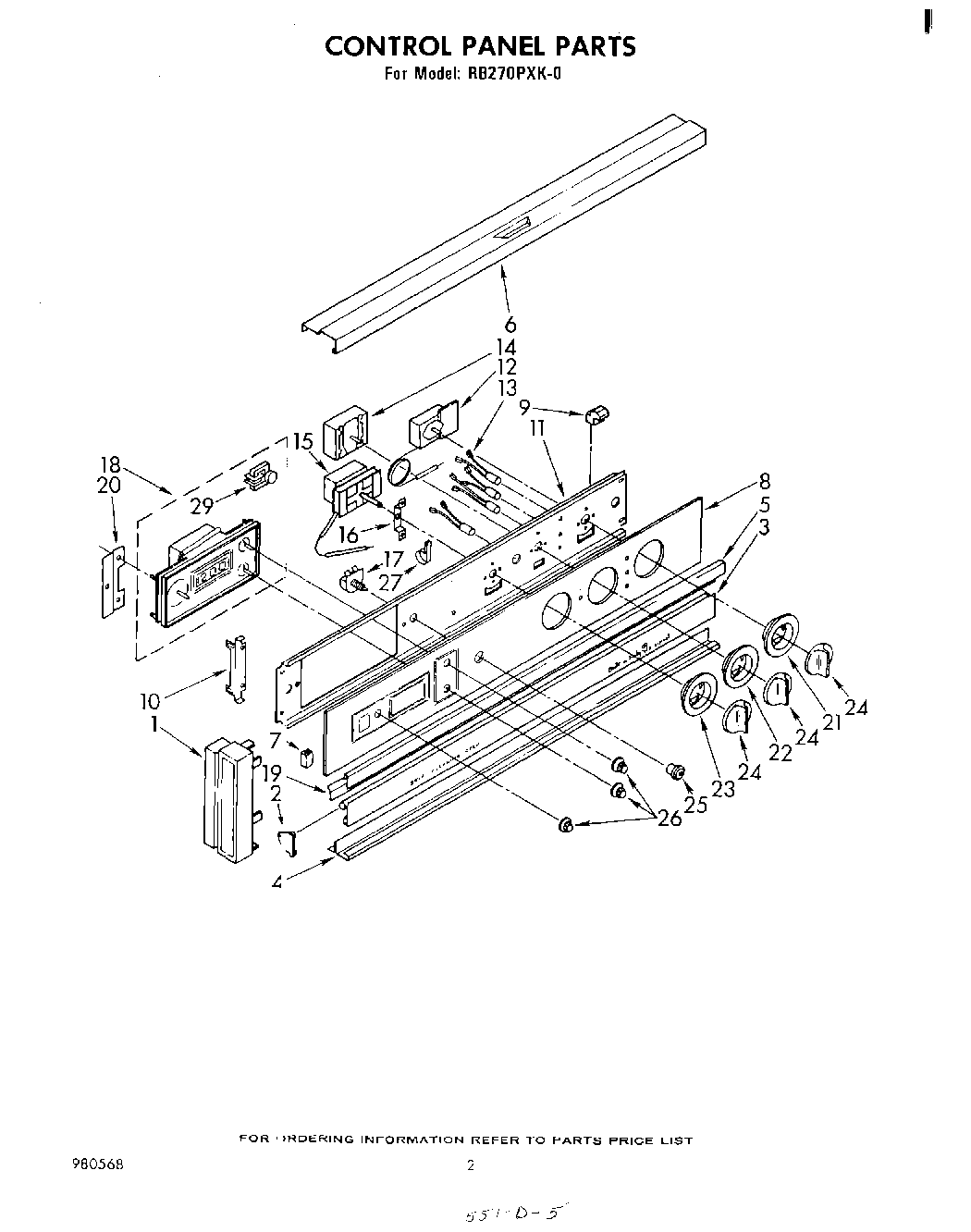

RB270PXK0 02 – CONTROL PANELadmin2025-04-26T11:29:37+00:00RB270PXK0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Cap (L.H.) |
| 1 | End Cap (R.H.) |
| 2 | End Trim, Vent (Right Side) |
| 2 | End Trim, Vent (Left Side) |
| 3 | Door, Vent |
| 4 | Trim, Bottom |
| 5 | Trim, Center |
| 5 | Screw, 10-32 x 1/2 |
| 6 | WP488627 Whirlpool Refrigerator Screw |
| 6 | Rail, Top |
| 7 | Rubber Channel (2) (Black Model Only) |
| 8 | Control Panel, Glass |
| 9 | Retainer, Glass (4) |
| 10 | Screw (2) |
| 10 | Bracket, Control Panel (2) |
| 11 | Bracket, Control |
| 12 | screw, 6-32 x 1/4 (2) |
| 12 | Thermostat, Oven Pyro |
| 13 | Indicator Light (4) |
| 14 | Selector Switch |
| 14 | WP486579 Whirlpool Air Conditioner Screw |
| 15 | Thermostat, Oven Continuous Clean |
| 16 | Screw (2) |
| 16 | Bracket, Thermostat |
| 17 | Switch, Oven Light |
| 17 | nut, 3/8 x 27 |
| 18 | Timer, Digital (Includes Illus. 29) |
| 18 | Timer, Automatic (Palnut (Timer)) |
| 19 | Seal, Backguard |
| 20 | Bracket, Timer |
| 21 | Escutcheon, Thermostat |
| 22 | WP311068 Whirlpool Dial Knob Black |
| 23 | Escutcheon, Thermostat - Lower Oven |
| 23 | Screw, |
| 24 | WP3150371 Whirlpool Control Knob |
| 25 | bezel, switch (2) |
| 26 | knob, timer |
| 27 | WP965173 Whirlpool Dishwasher Screw |
| 27 | WP308605 Whirlpool Refrigerator Clamp |
| 29 | Motor, Timer |
