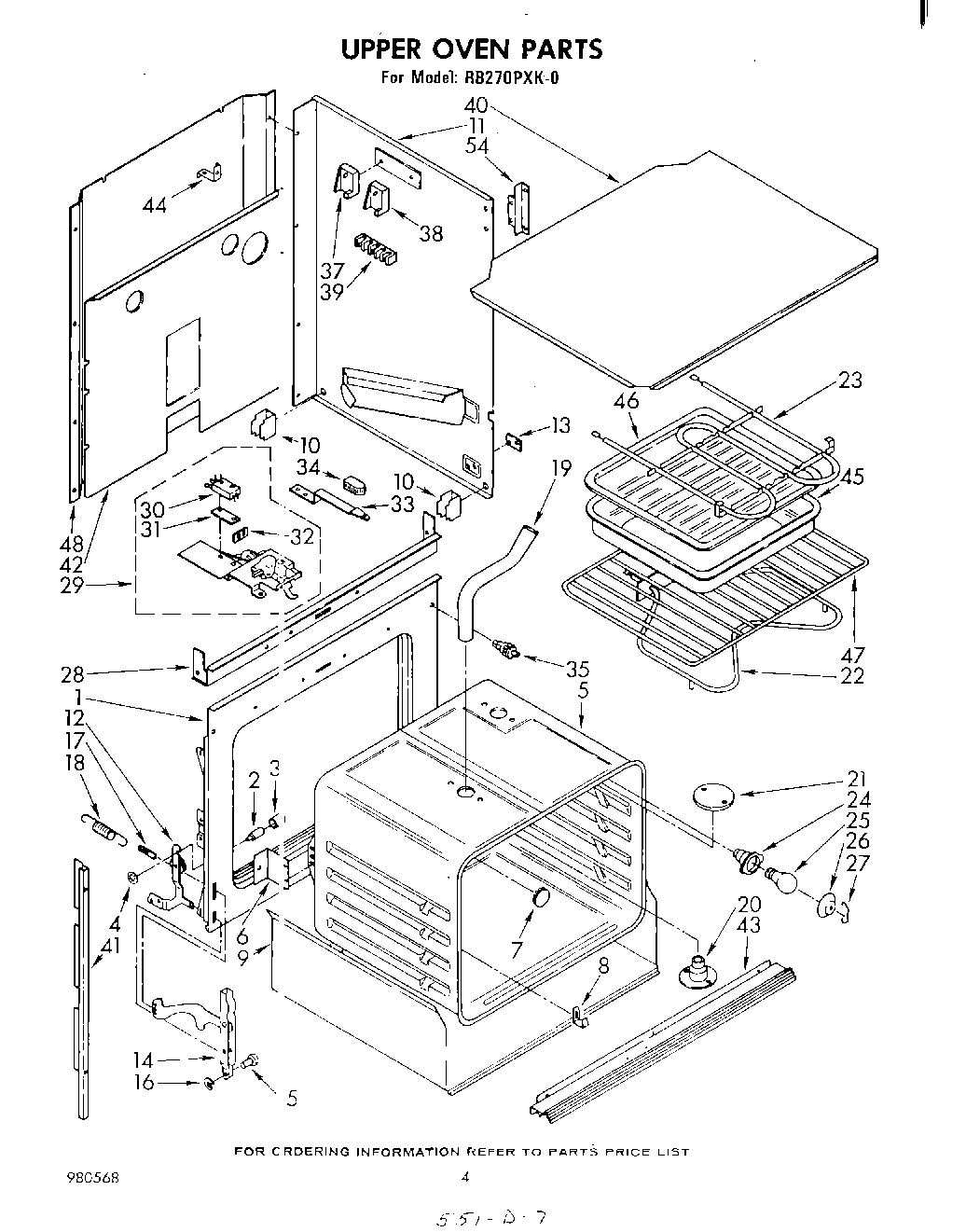

RB270PXK0 03 – UPPER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Screw (3)
5	Oven (30“ Pyro)
6	Bracket, Oven Mounting (2)
7	Plug Button
8	98005642 Whirlpool Clip
9	Insulation Tray
10	Support, Side Wrapper (4)
11	Side Wrapper (R.H.)
11	Side Wrapper (L.H.)
12	Hinge Ear, R.H.
12	Hinge Ear, L.H.
13	Plate, Side Panel (2)
13	WP308544 Whirlpool Screw
14	Channel Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	WP308125 Whirlpool Microwave Range/Cooktop Anchor
18	WP308126 Whirlpool Door Spring
19	Vent, Extension (2)
20	Eliminator, Smoke
20	WP965173 Whirlpool Dishwasher Screw
21	WPL 310662
22	ELMNT-BAKE
23	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
23	Screw, 10-32 x 5/8 (4)
24	Socket, Oven Light (Alt.)
24	Screw (10-12 x .875)
24	Socket, Oven Light (Alt.)
25	RANGE ONLY 40W 120V APPL BULB
26	Cover, Light
27	Retainer, Light
28	Baffle, Top Insulation
29	Latch Assembly
30	Screw
30	Safety Switch
31	Insulator, Switch
32	Terminal
33	Latch, Handle
33	Screw
34	Screw, 80 x 5/16
34	Knob, Latch Handle
35	Switch, Door
37	Switch, Broil
38	WPL 311585
39	W10841059 Whirlpool Screw
39	WP8203546 Whirlpool Terminal Block
39	WP112432 Whirlpool Nut Assembly
40	WPL 310458
41	WPL 310690
41	WPL 310686
42	WPL 310459
43	Screw, 10A x 1/2 (2) (Black)
43	WPL 329019
44	Stand Off
45	Pan, Broiler
46	Rack, Broiler
47	WPL 308173
47	WPL 308172
48	WPL 311011
54	WP308685 Whirlpool Microwave Screw
54	WP488627 Whirlpool Refrigerator Screw
54	WPL 310719
