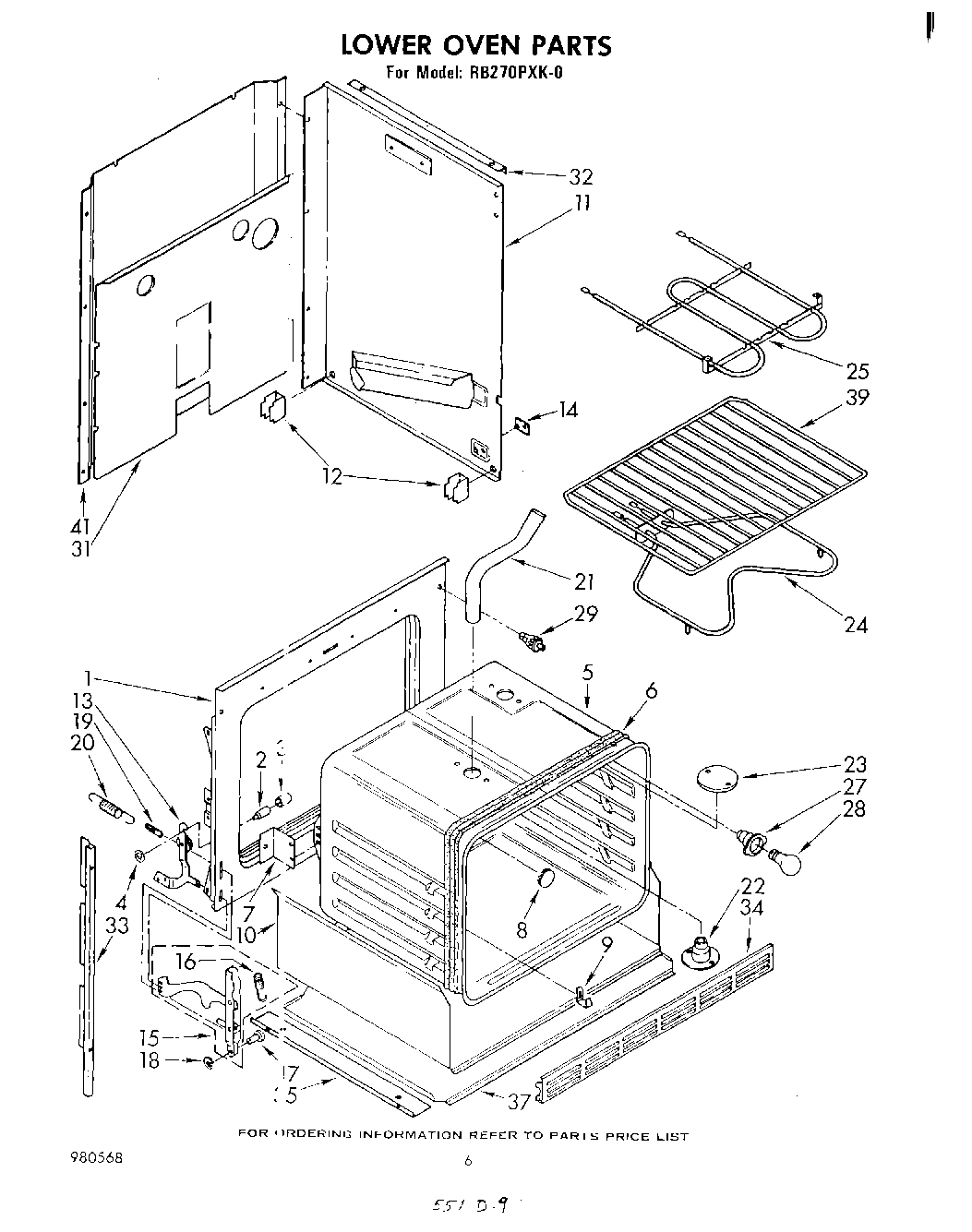

RB270PXK0 04 – LOWER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Oven, 30“ Continuous Clean
5	Screw (3)
6	Heat Seal
7	Bracket, Oven Mounting (2)
8	Plug Button
9	98005642 Whirlpool Clip
10	Insulation Tray
11	Side Wrapper (Right Side)
11	Side Wrapper (Left Side)
12	SCREW
12	Support, Side Wrapper (4)
13	Hinge Ear, L.H.
13	Hinge Ear, R.H.
14	WP308544 Whirlpool Screw
14	Plate, Side Panel (2)
15	Channel, Arm (2)
16	Spring, Door Stop (2)
17	WP307986 Whirlpool Hinge Pin
18	Retainer Ring (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Spring, Oven Door (2)
21	Tube, Lower Vent
22	WP90767 Whirlpool Screw
22	Eliminator, Smoke
23	WPL 310662
24	ELMNT-BAKE
25	Screw, 10-32 x 5/8 (4)
25	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Socket, Oven Light (Alt.)
27	Screw (10-12 x .875)
27	Socket, Oven Light (Alt.)
28	RANGE ONLY 40W 120V APPL BULB
29	Switch, Door
31	WPL 310459
32	Support Angle (2)
33	Side Trim (Left Side)
33	Side Trim (Right Side)
34	Grill, Bottom
34	Grill, Bottom (Screw (3))
35	Angle, Support (2)
37	WPL 310458
39	WPL 308173
41	WPL 311013
41	WP308685 Whirlpool Microwave Screw
