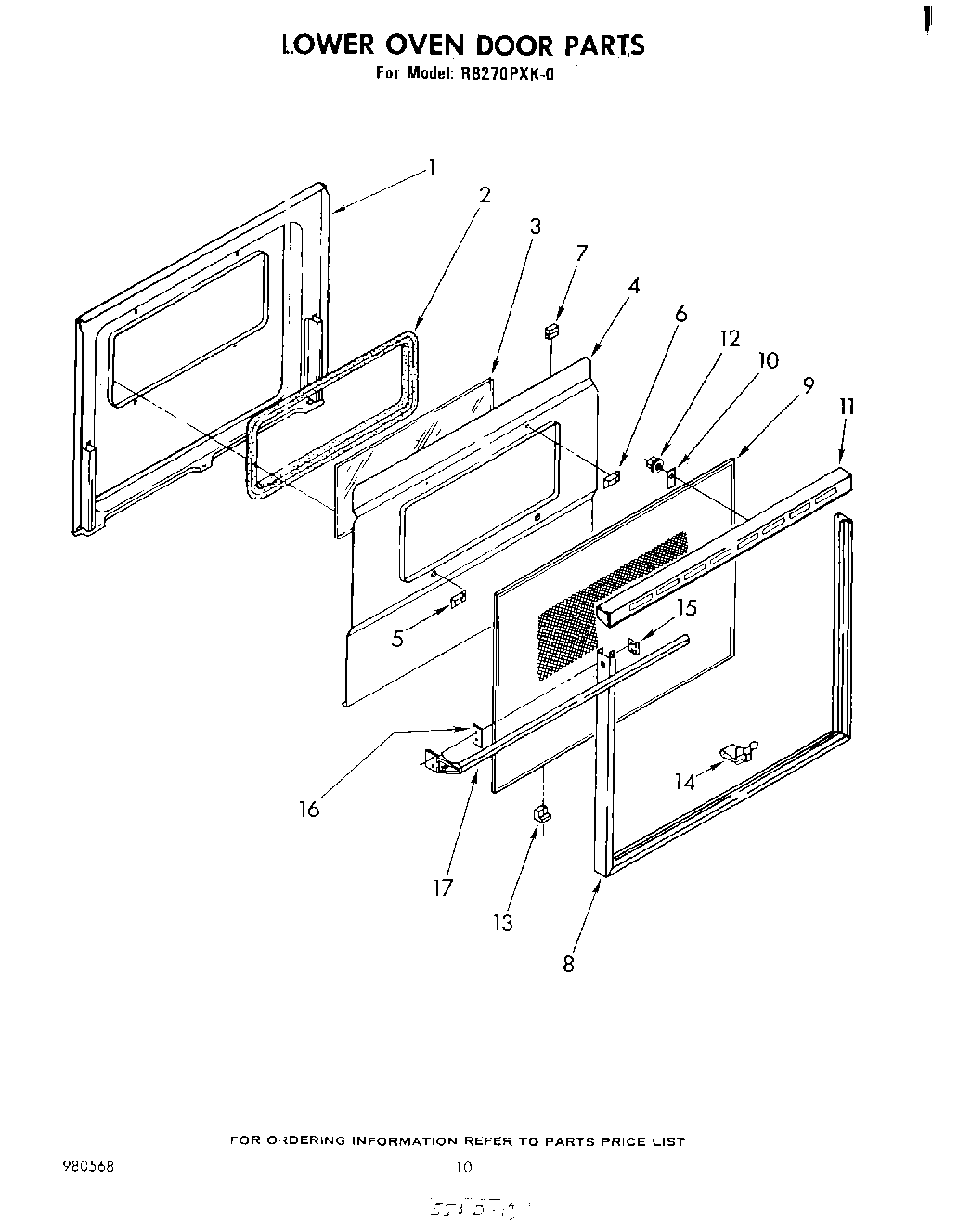

RB270PXK0 06 – LOWER OVEN DOOR, LITERATURE AND OPTIONAL

Products

Position	Product
1	Clip (2)
1	Liner, Door
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
6	spacer, insulation baffle (4)
6	WP308685 Whirlpool Microwave Screw
7	channel, rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	WP90296 Whirlpool Clip
13	Cushion, Oven Door (3)
14	clip, glass (10)
15	screw (3)
16	Spacer, Door Handle (2)
17	WPL 980568
17	WPL 311949
17	WPL 311509
17	Guide, Use & C
17	WP912618 Whirlpool Dishwasher Screw
17	Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gray)
17	Wire, 25“ Roll (White 14 GA.)
17	Handle, Oven Door
17	WPL 308500
17	Grease
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	Wire, 25` Roll (Black 14 Ga.)
17	Wire, 25` Roll (Red 14 Ga.)
17	242831 Whirlpool Oven Wire
17	Wire (14 Ga. 150 c Blue)
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (12 Ga. 150 c Black)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	Rotisserie Kit
17	WPW10208653 Whirlpool Insulation
