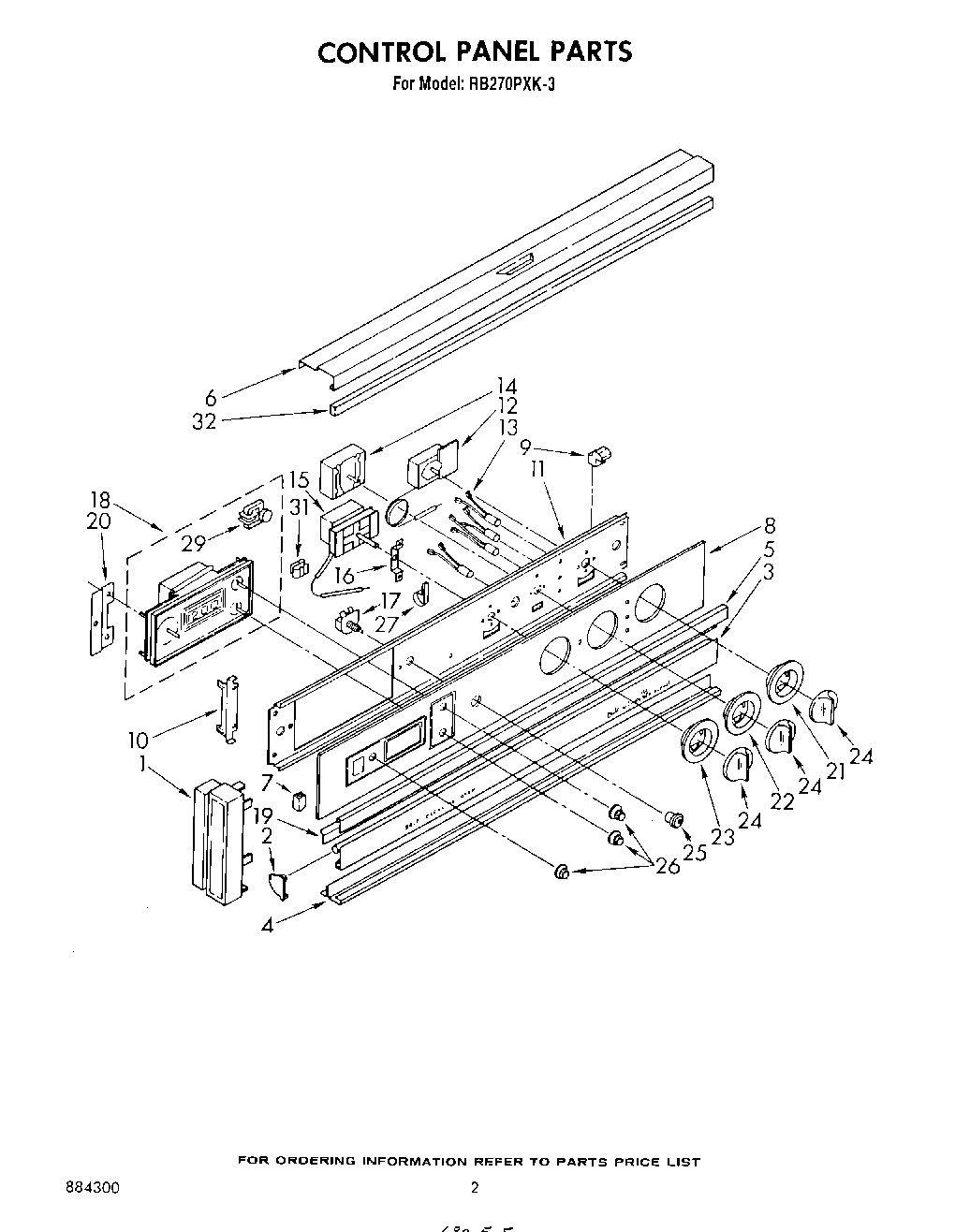

RB270PXK3 02 – CONTROL PANEL

RB270PXK3 02 – CONTROL PANEL

Written by

in

RB270PXK3 02 – CONTROL PANEL

Products

PositionProduct
1End Cap (L.H.)
1End Cap (R.H.)
2End Trim, Vent (Right Side)
2End Trim, Vent (Left Side)
3Door, Vent
4Trim, Bottom
5Screw, 10-32 x 1/2
5Trim, Center
6Rail, Top
6WP488627 Whirlpool Refrigerator Screw
7Rubber Channel (2) (Black Model Only)
8Control Panel, Glass
9Retainer, Glass (4)
10Bracket, Control Panel (2)
10Screw (2)
11Bracket, Control
12Thermostat, Oven Pyro
128528351 Whirlpool Clip
13Indicator Light (4)
14WP486579 Whirlpool Air Conditioner Screw
14Selector Switch
15Thermostat, Oven Continuous Clean
16Screw (2)
16WP313808 Whirlpool Screw
16Bracket, Thermostat
17Switch, Oven Light
17Lockwasher
18Timer, Digital (Included No.14)
18Timer, Automatic (Palnut (Timer))
19Seal, Backguard
20Bracket, Timer
21Escutcheon, Thermostat
22WP311068 Whirlpool Dial Knob Black
23Screw,
23Escutcheon, Thermostat – Lower Oven
24WP3150371 Whirlpool Control Knob
25Bezel Switch (1)
26WP3169181 Whirlpool Knob
26Spring (3)
27488946 Whirlpool Air Conditioner Clamp
27WP965173 Whirlpool Dishwasher Screw
29Motor, Timer
31WPL 309211
31Clip, Tube
32Rail, Top (Seal, Backguard)
