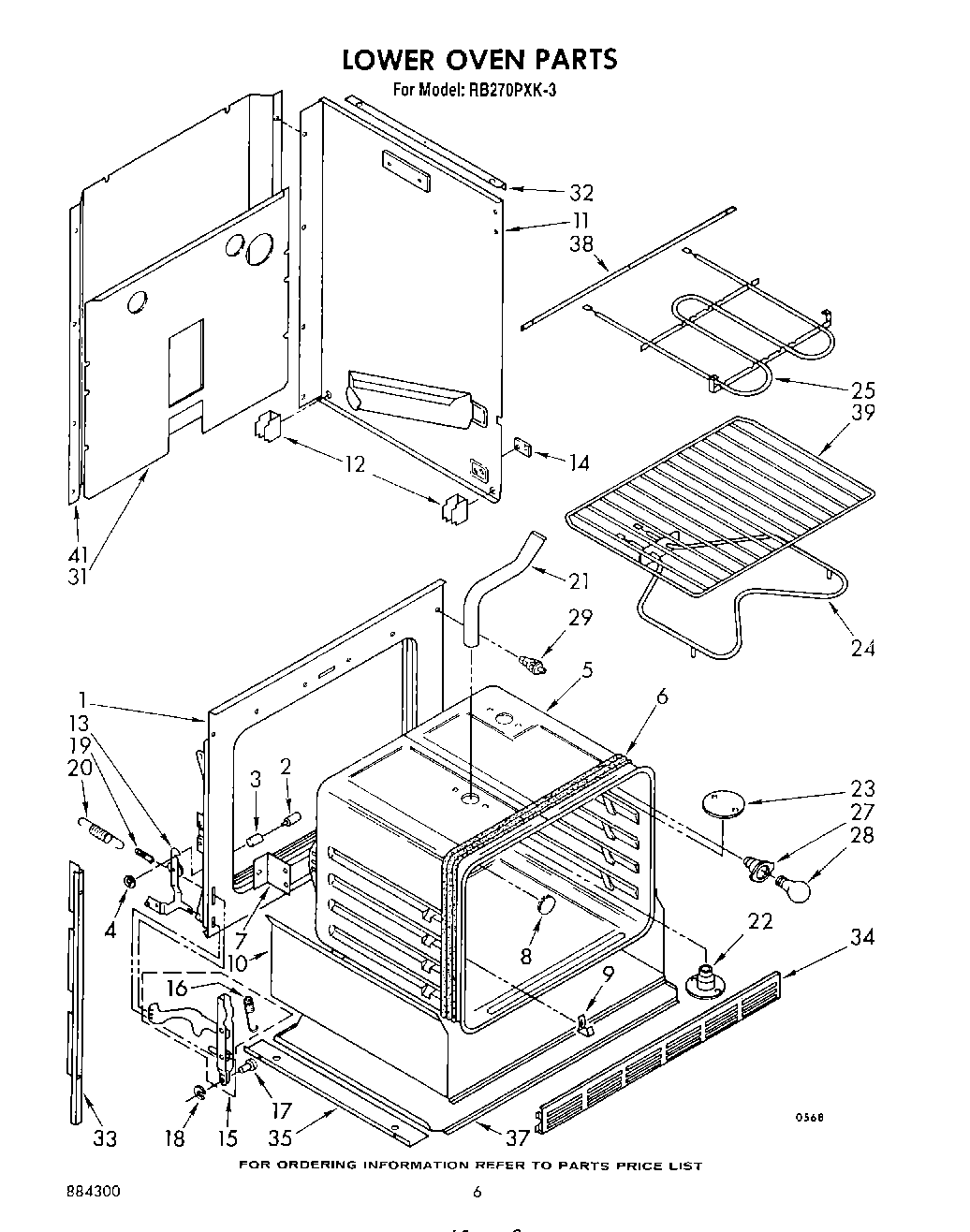

RB270PXK3 04 – LOWER OVEN

Products

Position	Product
	Screw (10-12 x .875)
	Screw, 10-32 x 5/8 (4)
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Screw (3)
5	Oven, 30“ Continuous Clean
6	Heat Seal
7	Bracket, Oven Mounting (2)
8	Plug Button
9	98005642 Whirlpool Clip
10	Insulation Tray
11	Side Wrapper (Right Side)
11	Side Wrapper (Left Side)
12	Support, Side Wrapper (4)
13	Hinge Ear, L.H.
13	Hinge Ear, R.H.
14	Plate, Side Panel (2)
14	WP308544 Whirlpool Screw
15	Channel Arm (2)
16	Spring, Door Stop (2)
17	WP307986 Whirlpool Hinge Pin
18	Retainer Ring (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Spring, Oven Door (2)
21	Tube, Lower Vent
21	SCREW
22	Eliminator, Smoke
23	WPL 310662
24	ELMNT-BAKE
25	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Socket, Oven Light (Alt.)
27	Socket, Oven Light (Alt.)
27	Socket, Oven Light
28	RANGE ONLY 40W 120V APPL BULB
29	Switch, Door
31	WPL 310459
32	Support Angle (2)
33	Side Trim (Right Side)
33	Side Trim (Left Side)
34	Grill, Bottom
34	Grill, Bottom (Screw (3))
35	Angle, Support (2)
37	WPL 310458
38	Screw,
38	WPL 312029
39	WPL 308173
41	WPL 311013
41	WP488729 Whirlpool Refrigerator Door Screw
