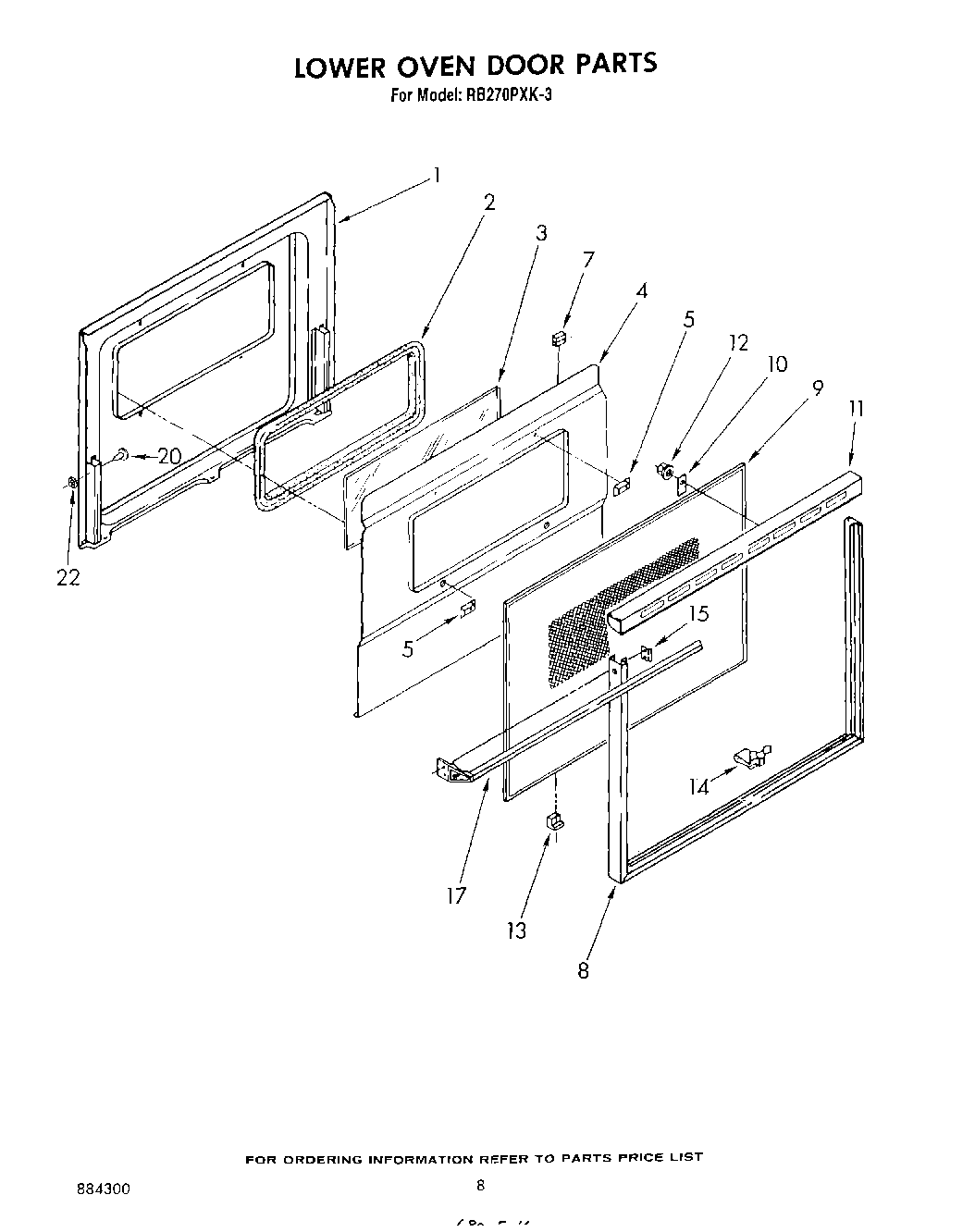

RB270PXK3 05 – LOWER OVEN DOOR , LITERATURE AND OPTIONAL

Products

Position	Product
	Tech Sheet
	WPL LIT313358
	List, Parts
	Guide, Use & Care
	Instructions, Installation
1	liner, door
1	WP308685 Whirlpool Microwave Screw
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
5	spacer, insulation baffle (4)
7	Channel, Rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	WP90296 Whirlpool Clip
13	Seal, Foam
14	clip, glass (10)
15	Clip (2)
17	Handle, Oven Door
17	WP355515 Whirlpool Screw
20	pin, wedge (2)
22	Wire (14 Ga. 150 c Brown)
22	18 Ga. 80~c Rating (Red)
22	WPW10208653 Whirlpool Insulation
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	pushnut (2)
22	Wire, 25“ Roll (White 14 GA.)
22	Wire (12 Ga. 150 c Black)
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Touch-Up Oven (1 Oz.)
22	242831 Whirlpool Oven Wire
22	Wire (14 Ga. 150 c Blue)
22	Wire (14 Ga. 150 c Yellow)
22	Grease
22	Rotisserie Kit
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 200 c Brown)
22	Wire (14 Ga. 150 c Green)
22	1
