RB270PXK3 06 – UPPER OVEN DOOR

RB270PXK3 06 – UPPER OVEN DOOR

Written by

in

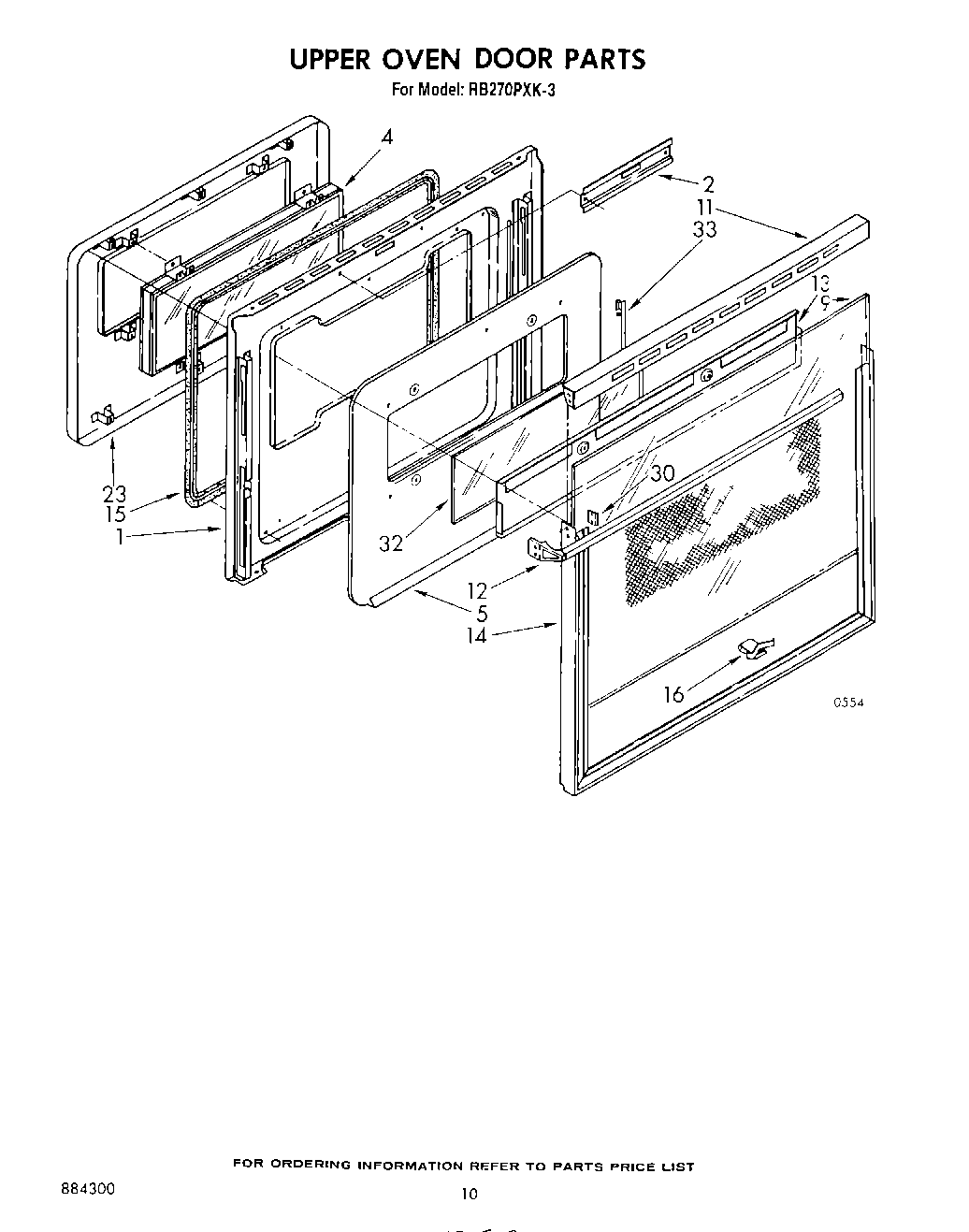

RB270PXK3 06 – UPPER OVEN DOOR

Products

PositionProduct
1WP308685 Whirlpool Microwave Screw
1Screw (3)
1Liner, Door
2Screw (2)
2Channel, Latch
4Window Package
5Retainer, Insulation
9Glass, Outer
11Top, Door Frame
12WP355515 Whirlpool Screw
12WP912618 Whirlpool Dishwasher Screw
12Handle, Oven Door
13WP90296 Whirlpool Clip
13Seal, Foam
13Baffle, Heat
14frame, door 30“
14Screw, 10A x 1/2 (2) (Black)
15Seal, Fiberglass
16clip, glass (10)
23Panel, Inner
30Clip (2)
32Glass (6.81“ x 18.31“)
33Retainer, Glass (2)
