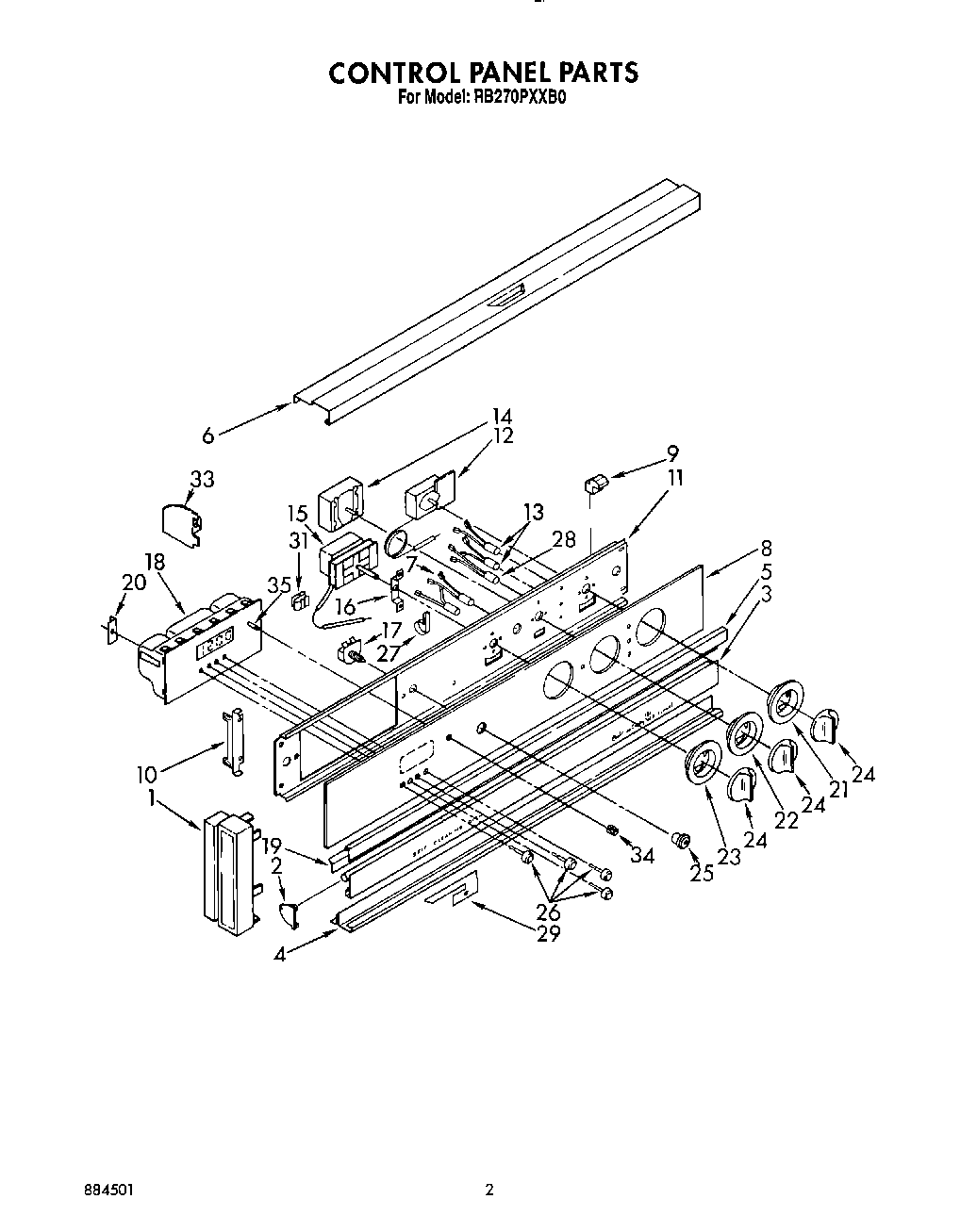

RB270PXXB0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT313358
	WPL LIT3148599
	WPL LIT884501
	WPL LIT3185069
	WPL LIT3149595
1	End Cap. L.H.
1	End Cap (R.H.)
2	Trim, Vent Door (Brite Aluminum, L.H.)
2	Trim, Vent Door (Brite Aluminum, R.H.)
2	End Trim, Vent (Right Side)
2	End Trim, Vent (Left Side)
3	Door, Vent (Brushed Chrome)
3	Door, Vent
4	Trim, Bottom
5	Trim, Center (Brushed Chrome)
5	Trim, Center (Black)
5	Screw, 10-32 x 1/2
6	Rail, Top
6	WP488627 Whirlpool Refrigerator Screw
7	Light, Indicator (Double)
8	Glass, Control Panel (White)
8	Glass, Control Panel (Black)
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
11	Bracket, Control
12	Thermostat, Oven
12	8528351 Whirlpool Clip
13	Indicator Light (4)
14	WP486579 Whirlpool Air Conditioner Screw
14	Selector Switch
15	Thermostat, Oven Continuous Clean
16	WP313808 Whirlpool Screw
16	Bracket, Thermostat
16	Screw (2)
17	White Model
17	Lockwasher
17	Switch, Oven Light
18	Timer
18	Timer, Digital (Includes Knobs)
19	Seal, Backguard
20	Bracket, Timer (2)
21	Escutcheon, Thermostat Upper Oven (White)
21	Escutcheon, Thermostat
22	WP311068 Whirlpool Dial Knob Black
23	Screw,
23	WPL 3149173
23	Escutcheon, Thermostat – Lower Oven
24	WP3150371 Whirlpool Control Knob
24	Knob, Control (2)
25	Bezel Switch (1)
25	Bezel, Switch (White)
26	WPL 313958
26	WPL 3149177
27	Strain Relief (3)
28	Light, Indicator Standard Clean
29	WP488729 Whirlpool Refrigerator Door Screw
29	Shield, Air
31	Clip, Tube
33	Shield, Timer (2)
33	Screw (2)
34	Knob, Bit Generat
34	Knob, Bit Generator (Black)
35	Shaft, Bit Generator
