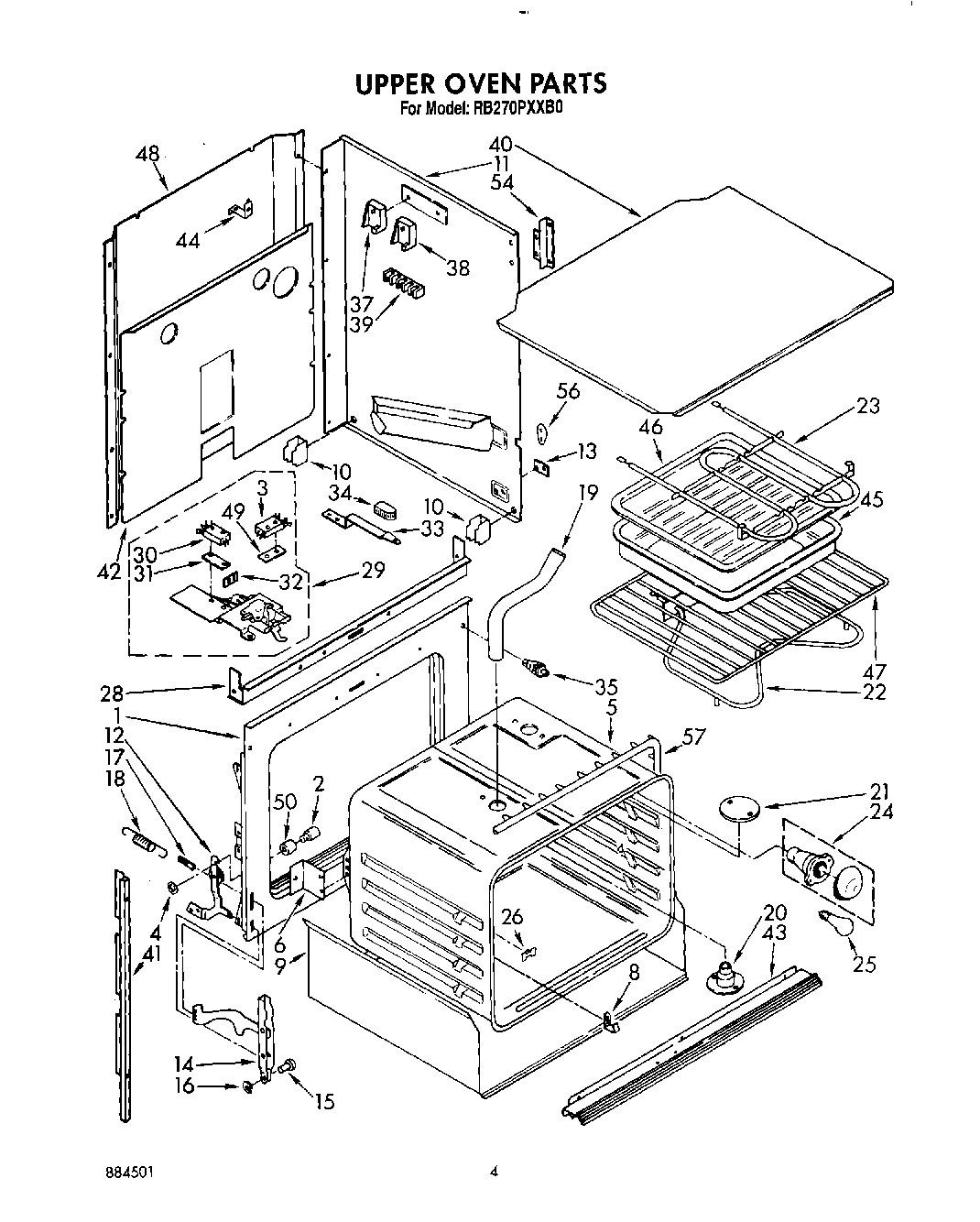

RB270PXXB0 03 – UPPER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Switch, Lock
3	Screw (2)
4	Pushnut (2)
5	Screw (3)
5	Oven, 30“
6	Bracket, Oven Mounting (2)
8	98005642 Whirlpool Clip
9	Insulation Tray
10	Support, Side Wrapper (4)
11	Side Wrapper (R.H.)
11	Side Wrapper (L.H.)
12	Hinge Ear, L.H.
12	Hinge Ear, R.H.
13	Plate, Side Panel (2)
13	WP308544 Whirlpool Screw
14	Channel Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	WP308125 Whirlpool Microwave Range/Cooktop Anchor
18	WP308126 Whirlpool Door Spring
19	Vent, Extension (2)
20	Eliminator, Smoke
20	SCREW
21	WPL 310662
22	ELMNT-BAKE
23	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
23	Screw (2)
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WPL 3169107
28	Baffle, Top Insulation
29	Latch Assembly
30	Safety Switch
30	Screw
31	Insulator, Switch
32	Shield, Latch
32	Screw
33	Latch, Handle
33	Screw
34	Knob, Latch Handle
34	Screw, 80 x 5/16
35	Switch, Door
37	Sw
38	Switch, Bake
39	Screw (10-12 x .875)
39	WP112432 Whirlpool Nut Assembly
39	WP8203546 Whirlpool Terminal Block
40	WPL 310458
41	WPL 310690
41	WPL 310686
42	Panel, Back (2)
43	WPL 3171868
43	WPL 302831
43	WPL 329019
43	Screw
44	Stand Off
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	WPL 308172
47	WPL 308173
48	WPL 311011
49	WPL 3147864
50	Snubber, Door (2)
54	WPL 310719
54	WP488627 Whirlpool Refrigerator Screw
56	WP488729 Whirlpool Refrigerator Door Screw
56	WPL 311982
57	WPL 310434
57	WPL 3185197
57	WPL 3149328
57	WPL 310433
