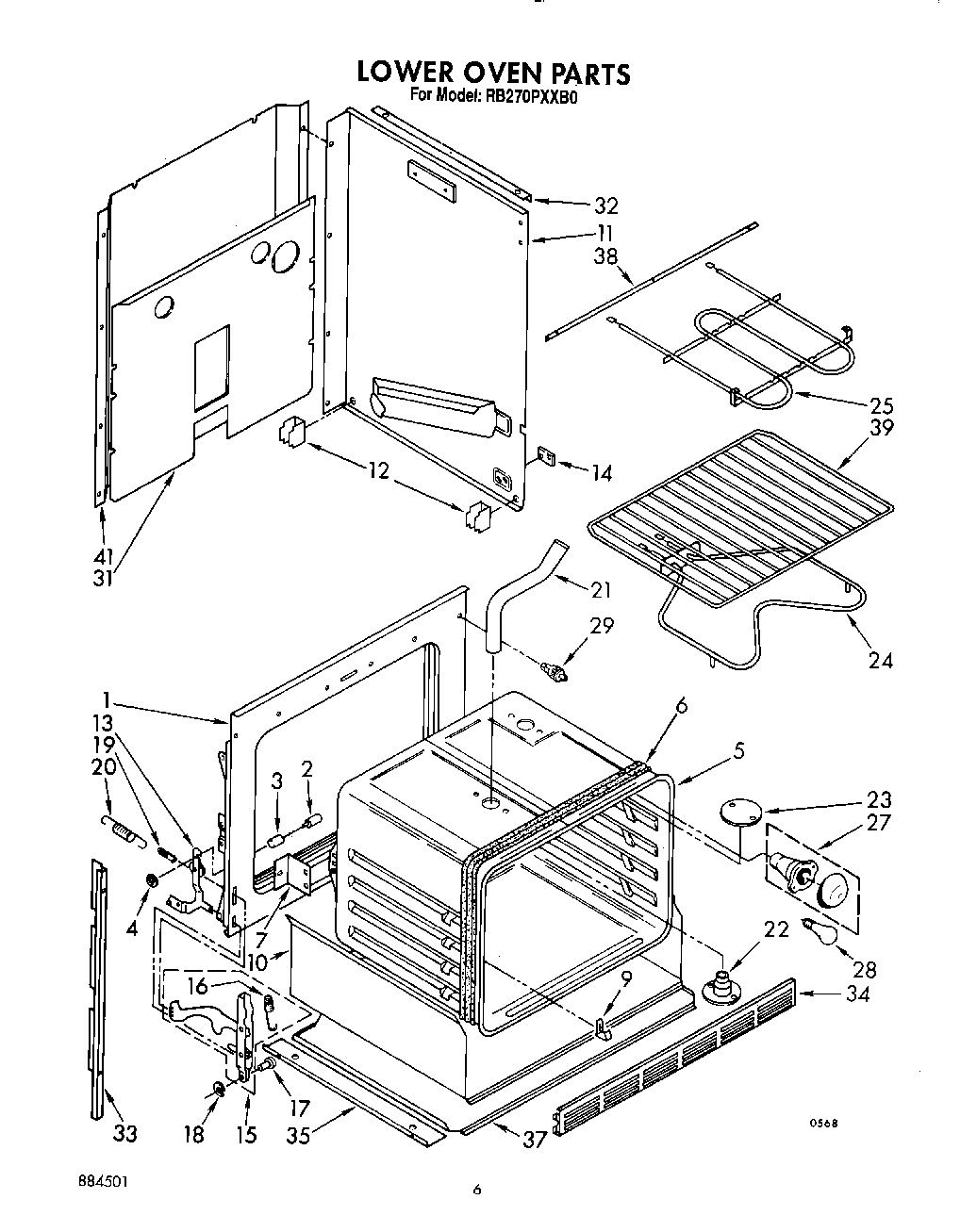

RB270PXXB0 04 – LOWER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Screw (3)
5	Oven 30`` Standard Clean
6	Heat Seal
7	Bracket, Oven Mounting (2)
9	98005642 Whirlpool Clip
10	Insulation Tray
11	Side Wrapper (Left Side)
11	Side Wrapper (Right Side)
12	Support, Side Wrapper (4)
13	Hinge Ear, R.H.
13	Hinge Ear, L.H.
14	Plate, Side Panel (2)
14	WP308544 Whirlpool Screw
15	Channel Arm (2)
16	Spring, Door Stop (2)
17	WP307986 Whirlpool Hinge Pin
18	Retainer Ring (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Spring, Oven Door (2)
21	SCREW
21	Tube, Lower Vent
22	Eliminator, Smoke
23	WPL 310662
24	ELMNT-BAKE
25	Screw (2)
25	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	W11594027 Whirlpool Range Oven Light Socket
28	RANGE ONLY 40W 120V APPL BULB
29	Switch, Door
31	Panel, Back (2)
32	Support Angle (2)
33	Side Trim (Left Side)
33	Side Trim (Right Side)
34	Grill, Bottom
34	Grill, Bottom (Screw (3))
34	Bottom Grill (White)
34	WP488627 Whirlpool Refrigerator Screw
37	WPL 310458
38	Screw,
38	Angle, Support (2)
39	WPL 308173
41	WP488729 Whirlpool Refrigerator Door Screw
41	WPL 311013
42	WPL 309102
42	WPL 310434
42	WPL 310433
