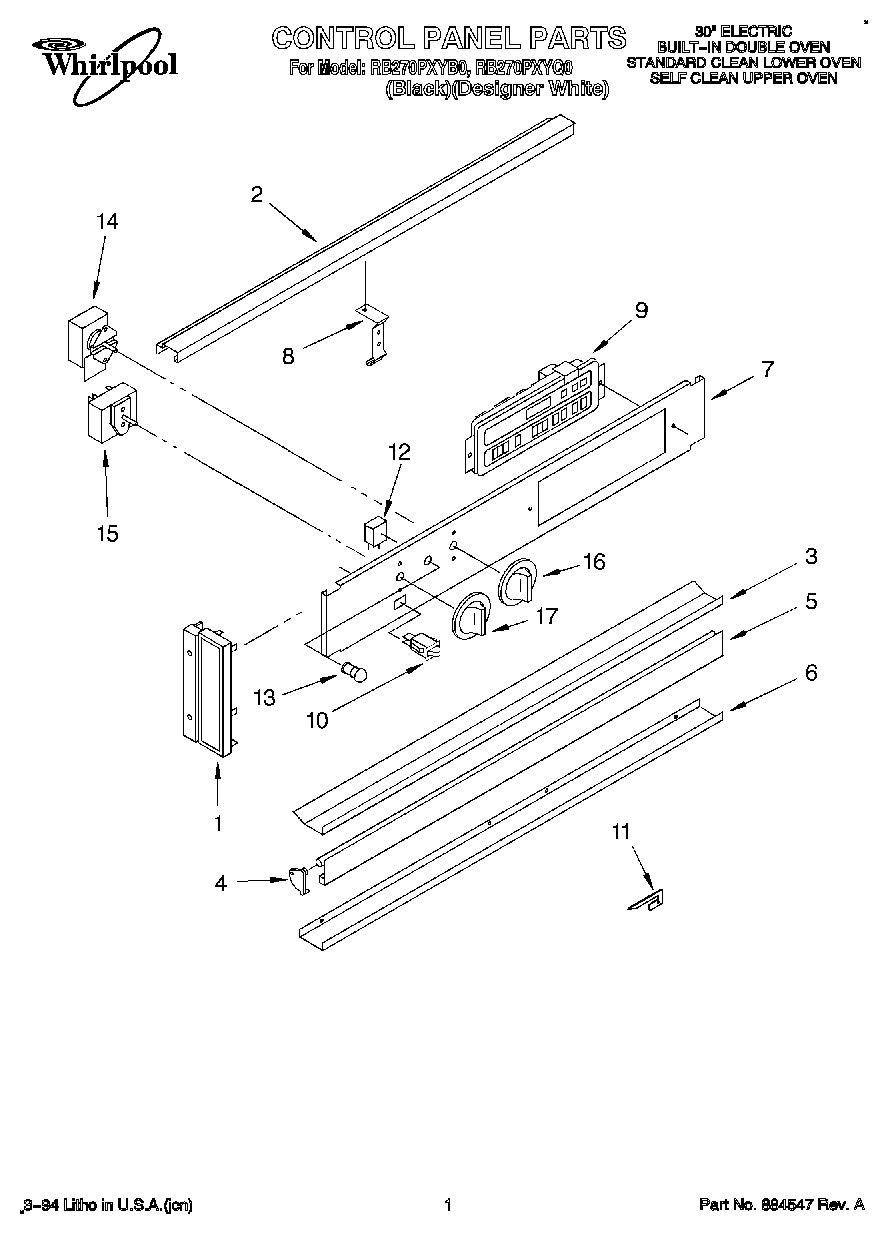

RB270PXYB0 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Use & Care Guide
	Repair Parts List
	Tech Sheet
	Installation Instructions
1	End Cap. L.H.
1	End Cap (R.H.)
2	WP488627 Whirlpool Refrigerator Screw
2	Rail, Top
3	Trim, Center (Black Model)
3	Trim, Center (White Model)
4	End Trim, Vent (Right Side)
4	Trim, Vent Door (Brite Aluminum, L.H.)
4	Trim, Vent Door (Brite Aluminum, R.H.)
4	End Trim, Vent (Left Side)
5	Door, Vent (Brushed Aluminum)
5	Door, Vent (Black)
6	Screw, 10-32 x 1/2
6	Trim, Bottom
7	Control Panel (White Model)
7	Control Panel (Black Model)
8	Bracket, Stiffener
8	Screw
9	Control, Electronic (Black)
9	Control, Electronic (White)
10	Switch, Rocker (White)
10	Switch, Rocker
11	Screw (2)
11	Shield, Air
12	Light, Indicator (250V)
13	Lens, Amber
14	Screw (2)
14	Thermostat
15	WP486579 Whirlpool Air Conditioner Screw
15	Switch, Selector
16	Knob, Thermostat
16	Knob, Temperature (Designer Mdl)
17	Knob, Selector (White/Almond/Gold)
17	Knob, Selector (Designer Mdl)
