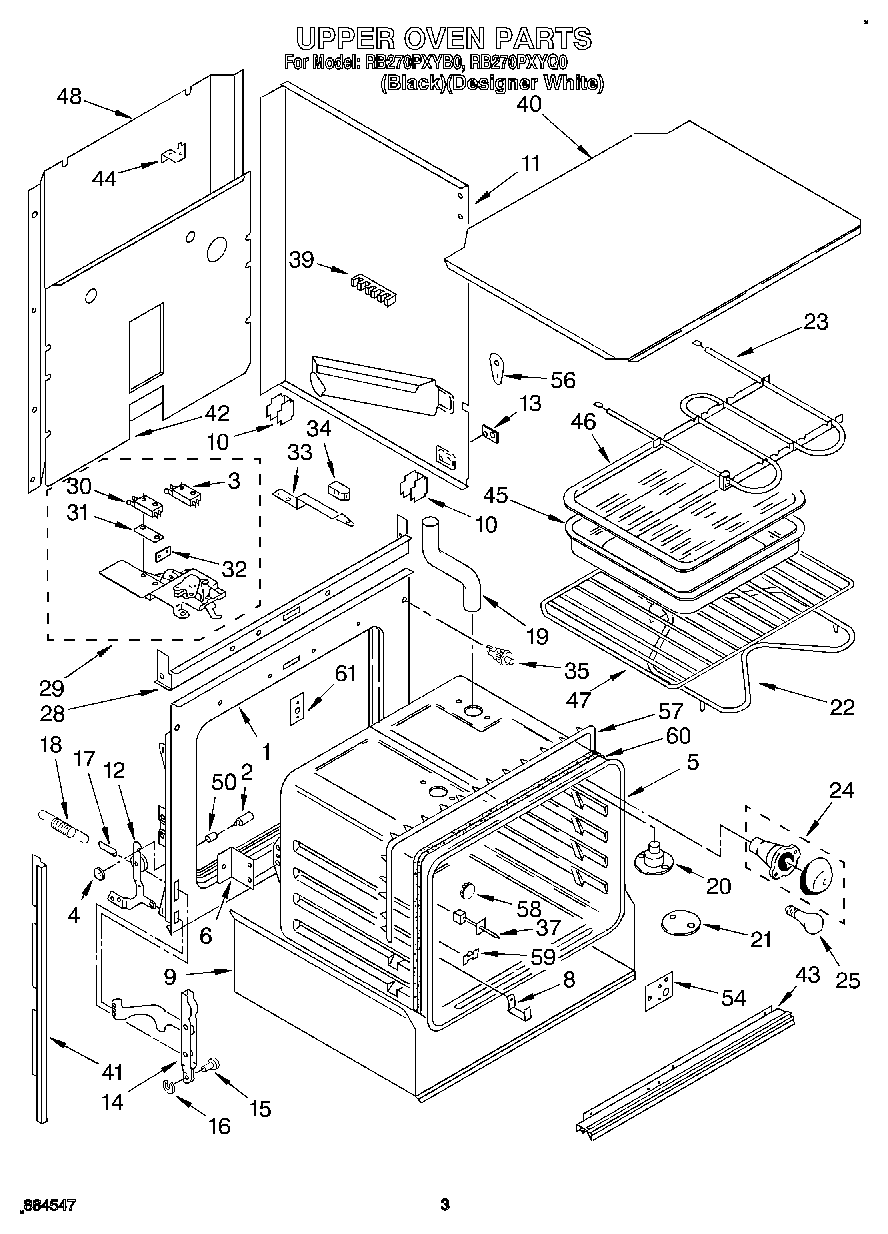

RB270PXYB0 02 – UPPER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Switch, Latch
4	Pushnut (2)
5	Oven 30“
6	Bracket, Oven Mounting (2)
8	98005642 Whirlpool Clip
9	Insulation Tray
10	Support, Side Wrapper (4)
11	Side Wrapper (R.H.)
11	Side Wrapper (L.H.)
12	Hinge Ear, L.H.
12	Hinge Ear, R.H.
13	Plate, Side Panel (2)
13	WP308544 Whirlpool Screw
14	Channel Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	WP308125 Whirlpool Microwave Range/Cooktop Anchor
18	WP308126 Whirlpool Door Spring
19	Vent, Extension (2)
20	SCREW
20	Eliminator, Smoke
21	WPL 310662
22	ELMNT-BAKE
23	Screw (2)
23	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
28	Baffle, Top Insulation
29	Latch Assembly
30	Safety Switch
30	Screw
31	Insulator, Switch
32	Screw
32	Shield, Latch
33	Latch, Handle
33	Screw
34	Knob, Latch Handle
34	Screw
35	Switch, Door
37	Sensor, Heat
39	Screw (10-12 x .875)
39	WP8203546 Whirlpool Terminal Block
39	WP112432 Whirlpool Nut Assembly
40	WPL 310458
41	WPL 310690
41	WPL 310686
42	Panel, Back
43	Screw
43	WPL 3171868
43	WPL 329019
43	Screw
44	Stand Off
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	WPL 308172
47	WPL 308173
48	WPL 311011
49	WPL 3147864
50	Snubber, Door (2)
54	WP488627 Whirlpool Refrigerator Screw
56	WPL 3183005
56	WP488729 Whirlpool Refrigerator Door Screw
57	WPL 3185197
58	Button, Plug
59	WPL 3169107
60	Heat Seal
61	WPL 310435
61	Plate, Cover
61	WPL 310433
61	WPL 3149328
