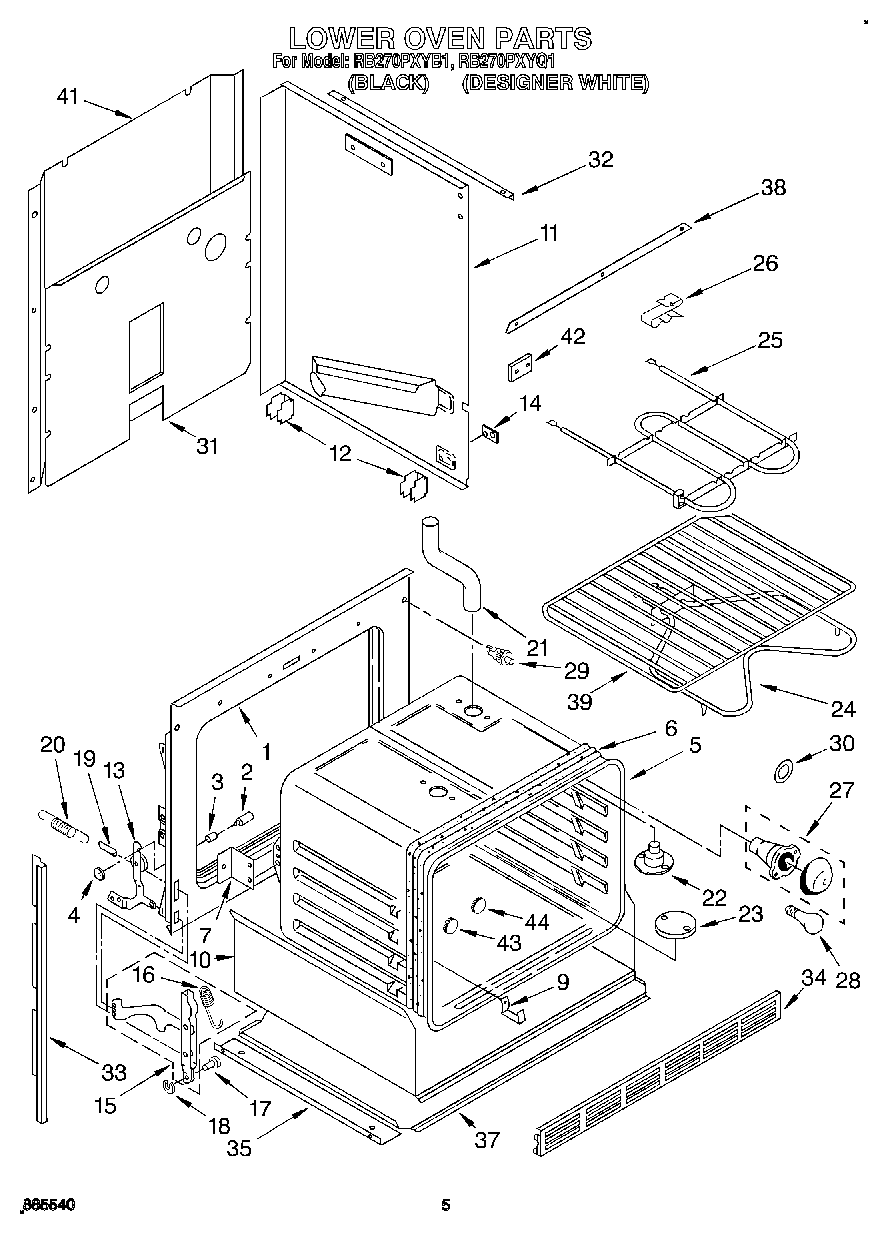

RB270PXYB1 03 – LOWER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Screw (3)
5	Oven 30“
6	Heat Seal
7	Bracket, Oven Mounting (2)
9	98005642 Whirlpool Clip
10	Insulation Tray
11	Side Wrapper (Right Side)
11	Side Wrapper (Left Side)
12	Support, Side Wrapper (4)
13	Hinge, Ear (Right Side)
13	Hinge, Ear (Left Side)
14	Plate, Side Panel (2)
14	WP308544 Whirlpool Screw
15	Channel, Arm (2)
16	Spring, Door Stop (2)
17	WP307986 Whirlpool Hinge Pin
18	Retainer Ring (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Spring, Oven Door (2)
21	SCREW
21	Tube, Lower Vent
22	Eliminator, Smoke
23	WPL 310662
24	ELMNT-BAKE
25	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
25	Screw (2)
26	Clip, Tube
27	W11594027 Whirlpool Range Oven Light Socket
28	RANGE ONLY 40W 120V APPL BULB
29	Switch, Door
30	WP3184533 Whirlpool Range Light Lens Gasket
31	Panel, Back
32	Support Angle (2)
33	Side Trim (Right Side)
33	Side Trim (Left Side)
34	WP488627 Whirlpool Refrigerator Screw
34	Grill, Bottom
34	Bottom Grill (White)
34	Grill, Bottom (Screw (3))
37	WPL 310458
38	Angle, Support (2)
39	WPL 308173
41	WP488729 Whirlpool Refrigerator Door Screw
41	WPL 311013
42	WPL 3183005
43	Button, Plug
44	WPL 310433
44	WPL 3185086
44	WPL 310435
