RB270PXYB3 01 – CONTROL PANEL, LITERATUREadmin2025-04-26T11:31:40+00:00RB270PXYB3 01 – CONTROL PANEL, LITERATURE
Products
| Position | Product |
|---|
| Tech Sheet |
| Installation Instructions |
| Use & Care Guide |

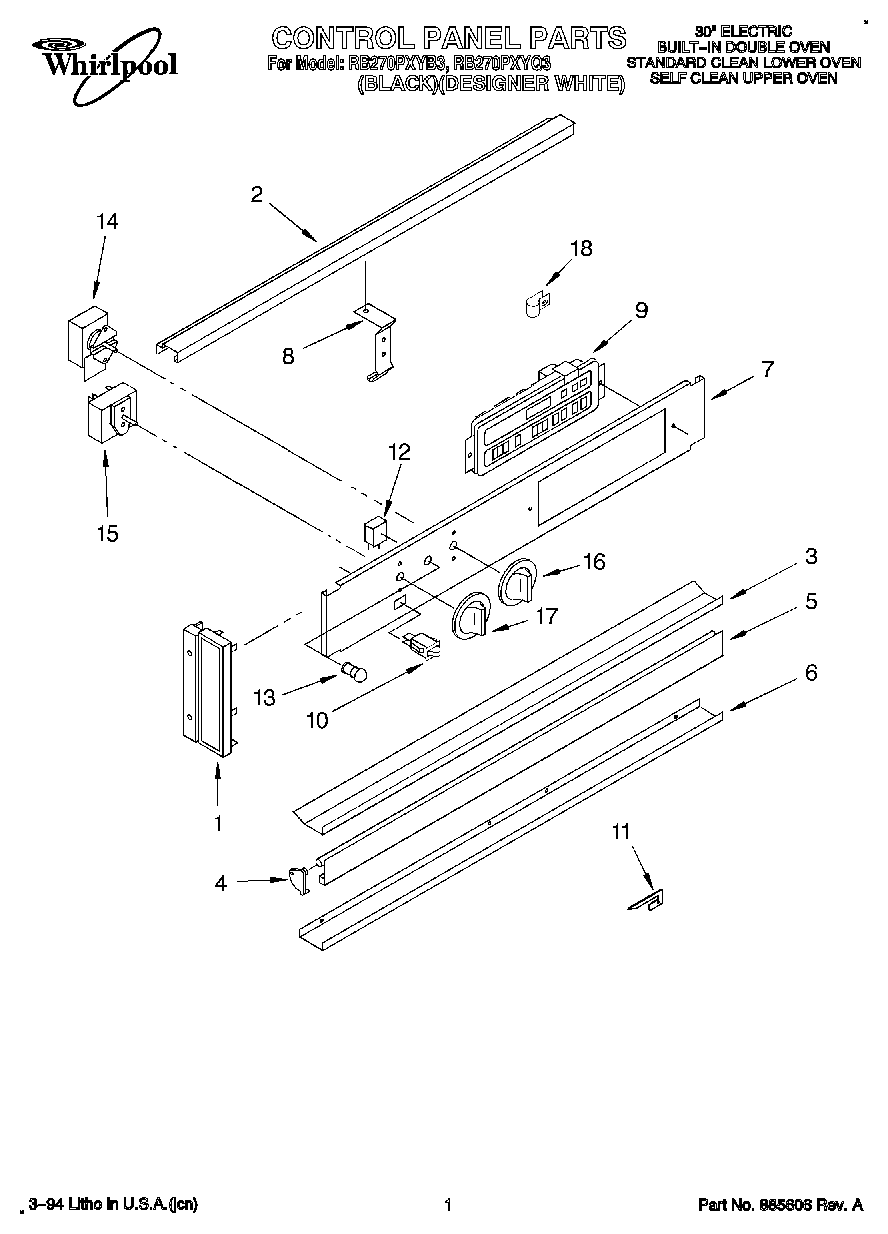

| 1 | End Cap (R.H.) |
| 1 | End Cap. L.H. |
| 2 | Rail, Top |
| 2 | WP488627 Whirlpool Refrigerator Screw |
| 3 | Trim, Center (Black Model) |
| 3 | Trim, Center (White Model) |
| 4 | End Trim, Vent (Right Side) |
| 4 | End Trim, Vent (Left Side) |
| 4 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 4 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | Door, Vent (Black) |
| 5 | Door, Vent (Brushed Aluminum) |
| 6 | Screw, 10-32 x 1/2 |
| 6 | Trim, Bottom |
| 7 | Control Panel (White Model) |
| 7 | Control Panel (Black Model) |
| 8 | Bracket, Stiffener |
| 8 | Screw |
| 9 | Control, Electronic (White) |
| 9 | Control, Electronic (Black) |
| 10 | Switch, Rocker (White) |
| 10 | Switch, Rocker |
| 11 | Screw (2) |
| 11 | Shield, Air |
| 12 | Light, Indicator (250V) |
| 13 | Lens, Amber |
| 14 | Therm |
| 14 | Screw (2) |
| 15 | Switch, Selector |
| 15 | WP486579 Whirlpool Air Conditioner Screw |
| 16 | Knob, Temperature (Designer Mdl) |
| 16 | Knob, Thermostat |
| 17 | Knob, Selector (White/Almond/Gold) |
| 17 | Knob, Selector (Designer Mdl) |
| 18 | Strain Relief (3) |
