RB270PXYB3 02 – UPPER OVEN
Written by
in

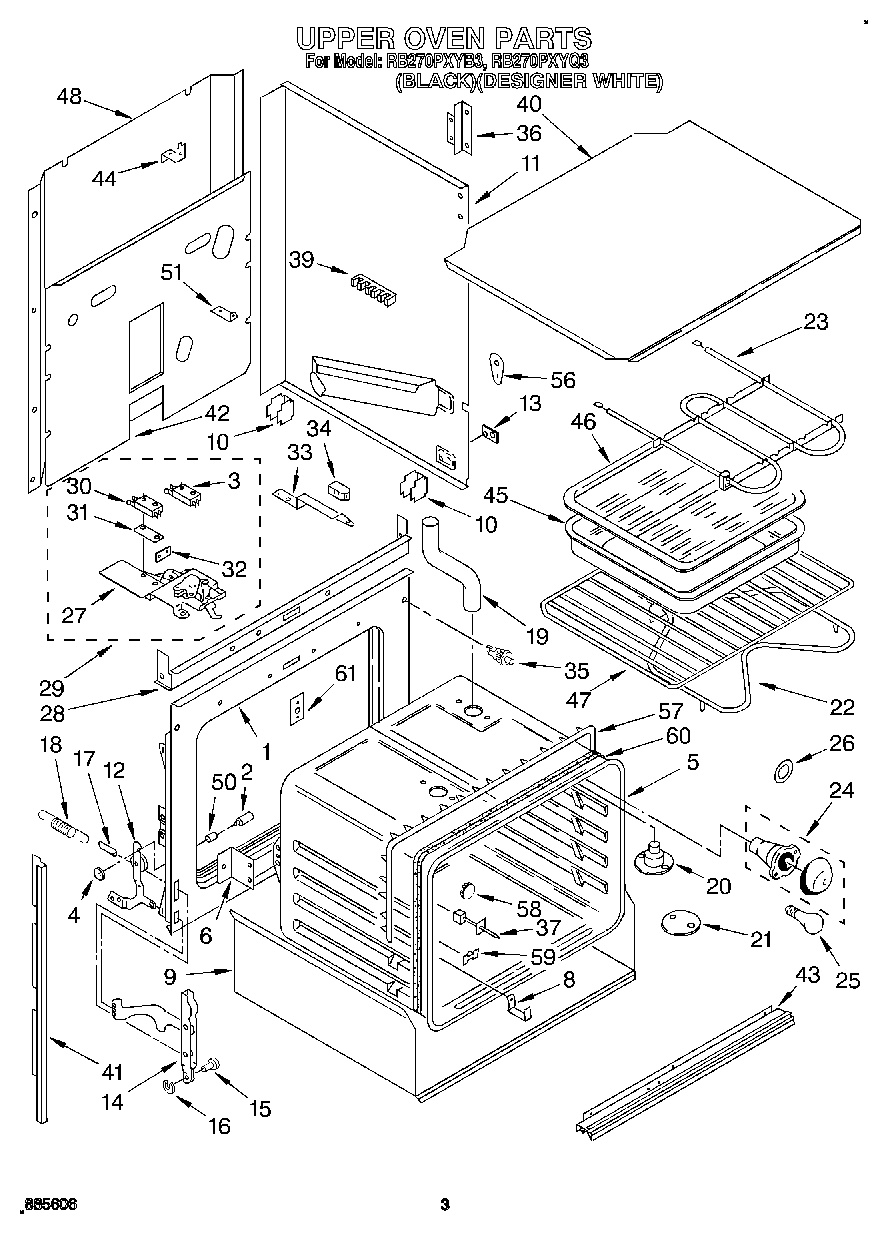

RB270PXYB3 02 – UPPER OVEN
Products
Position
Product
1
Frame, Front
2
Pin, Hinge Ear (2)
3
Switch, Latch
4
Pushnut (2)
5
Oven 30“
6
Bracket, Oven Mounting (2)
8
98005642 Whirlpool Clip
9
Insulation Tray
10
Support, Side Wrapper (4)
11
Side Wrapper (R.H.)
11
Side Wrapper (L.H.)
12
Hinge, Ear (Left Side)
12
Hinge, Ear (Right Side)
13
Plate, Side Panel (2)
13
WP308544 Whirlpool Screw
14
Channel Arm (2)
15
WP307986 Whirlpool Hinge Pin
16
Retainer Ring (2)
17
WP308125 Whirlpool Microwave Range/Cooktop Anchor
18
WP308126 Whirlpool Door Spring
19
Vent, Extension (2)
20
SCREW
20
Eliminator, Smoke
21
WPL 310662
22
ELMNT-BAKE
23
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
23
Screw (2)
24
W11594027 Whirlpool Range Oven Light Socket
25
RANGE ONLY 40W 120V APPL BULB
26
WP3184533 Whirlpool Range Light Lens Gasket
27
Latch Mechanism
28
Baffle, Top Insulation
29
Latch Assembly
30
Safety Switch
31
Insulator, Switch
31
Screw (2)
32
Shield, Latch
32
Screw
33
Latch, Handle
33
Screw
34
Screw
34
Knob, Latch Handle
35
Switch, Door
36
WPL 310719
37
Sensor, Heat
39
Screw (10-12 x .875)
39
WP8203546 Whirlpool Terminal Block
39
WP112432 Whirlpool Nut Assembly
40
Cover, Bottom
41
WPL 310690
41
WPL 310686
42
Panel, Back
43
Screw
43
WPL 3171868
43
WPL 329019
43
Screw
44
Stand Off
46
4396923 Whirlpool Broil Pan Set Gray Porcelain
47
Rack, Straight
47
Rack, Offset
48
WPL 3185961
50
Snubber, Door (2)
51
WPL 309102
56
WPL 3183005
56
WP488729 Whirlpool Refrigerator Door Screw
57
WPL 3185197
58
Button, Plug
59
WPL 3169107
60
Heat Seal
61
WPL 310435
61
Plate, Cover
61
WPL 3149328
61
WPL 310433
←
