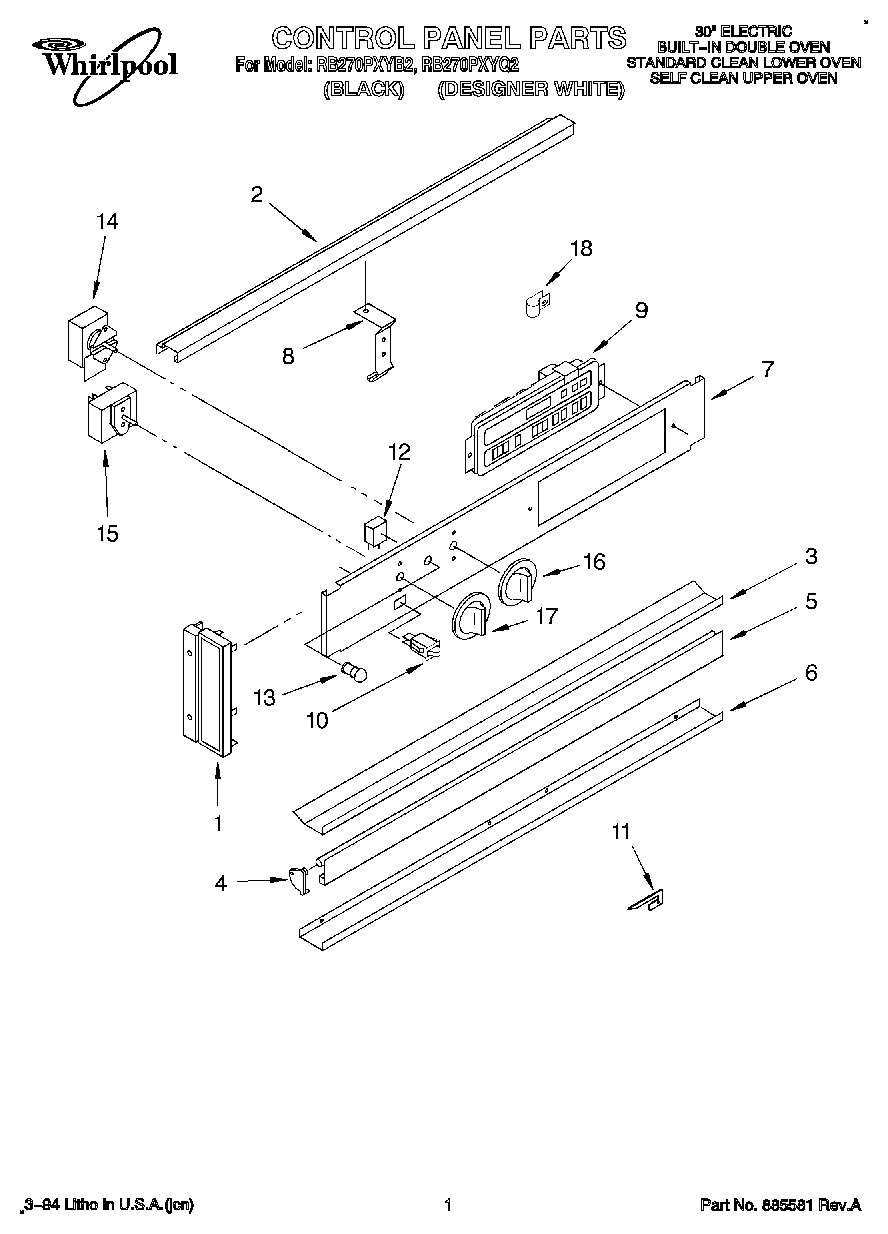

RB270PXYQ2 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Use & Care Guide
	Installation Instructions
	Tech Sheet
1	End Cap. L.H.
1	End Cap (R.H.)
2	WP488627 Whirlpool Refrigerator Screw
2	Rail, Top
3	Trim, Center (Black Model)
3	Trim, Center (White Model)
4	End Trim, Vent (Left Side)
4	Trim, Vent Door (Brite Aluminum, L.H.)
4	Trim, Vent Door (Brite Aluminum, R.H.)
4	End Trim, Vent (Right Side)
5	Door, Vent (Black)
5	Door, Vent (Brushed Aluminum)
6	Trim, Bottom
6	Screw, 10-32 x 1/2
7	Control Panel (Black Model)
7	Control Panel (White Model)
8	Bracket, Stiffener
8	Screw
9	Control, Electronic (Black)
9	Control, Electronic (White)
10	Switch, Rocker (White)
10	Switch, Rocker
11	Screw (2)
11	Shield, Air
12	Light, Indicator (250V)
13	Lens, Amber
14	Thermostat
14	Screw (2)
15	Switch, Selector
15	WP486579 Whirlpool Air Conditioner Screw
16	Knob, Thermostat
16	Knob, Temperature (Designer Mdl)
17	Knob, Selector (Designer Mdl)
17	Knob, Selector (White/Almond/Gold)
18	Strain Relief (3)
