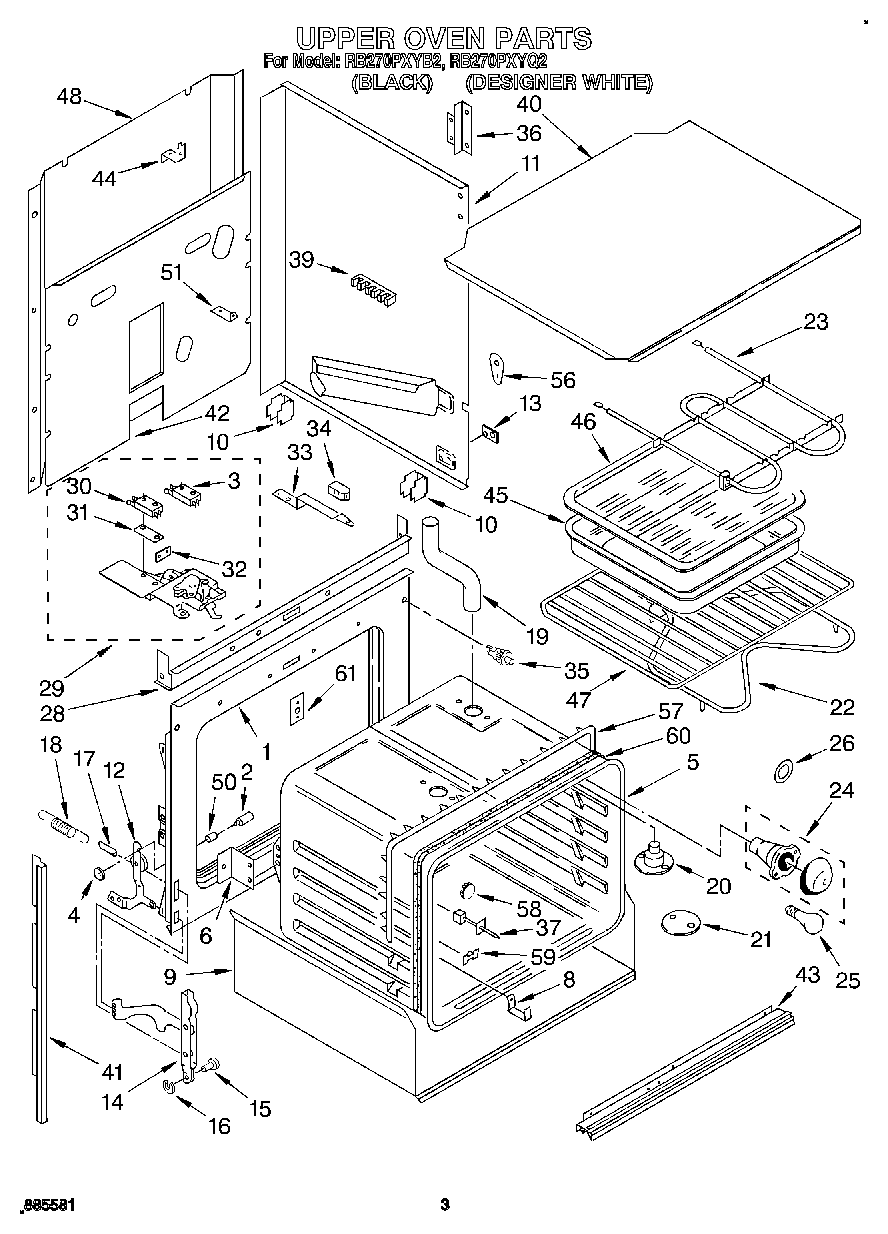

RB270PXYQ2 02 – UPPER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Switch, Latch
4	Pushnut (2)
5	Oven 30“
6	Bracket, Oven Mounting (2)
8	98005642 Whirlpool Clip
9	Insulation Tray
10	Support, Side Wrapper (4)
11	Side Wrapper (R.H.)
11	Side Wrapper (L.H.)
12	Hinge, Ear (Right Side)
12	Hinge, Ear (Left Side)
13	WP308544 Whirlpool Screw
13	Plate, Side Panel (2)
14	Channel Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	WP308125 Whirlpool Microwave Range/Cooktop Anchor
18	WP308126 Whirlpool Door Spring
19	Vent, Extension (2)
20	Eliminator, Smoke
20	SCREW
21	WPL 310662
22	ELMNT-BAKE
23	Screw (2)
23	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WP3184533 Whirlpool Range Light Lens Gasket
28	Baffle, Top Insulation
29	Latch Assembly
30	Safety Switch
31	Screw (2)
31	Insulator, Switch
32	Shield, Latch
32	Screw
33	Latch, Handle
33	Screw
34	Knob, Latch Handle
34	Screw
35	Switch, Door
36	WPL 310719
37	Sensor, Heat
39	WP8203546 Whirlpool Terminal Block
39	Screw (10-12 x .875)
39	WP112432 Whirlpool Nut Assembly
40	Cover, Bottom
41	WPL 310690
41	WPL 310686
42	Panel, Back
43	Screw
43	WPL 3171868
43	WPL 329019
43	Screw
44	Stand Off
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	Rack, Straight
47	Rack, Offset
48	WPL 3185961
50	Snubber, Door (2)
51	WPL 309102
56	WPL 3183005
56	WP488729 Whirlpool Refrigerator Door Screw
57	WPL 3185197
58	Button, Plug
59	WPL 3169107
60	Heat Seal
61	WPL 310435
61	WPL 3149328
61	Plate, Cover
61	WPL 310433
