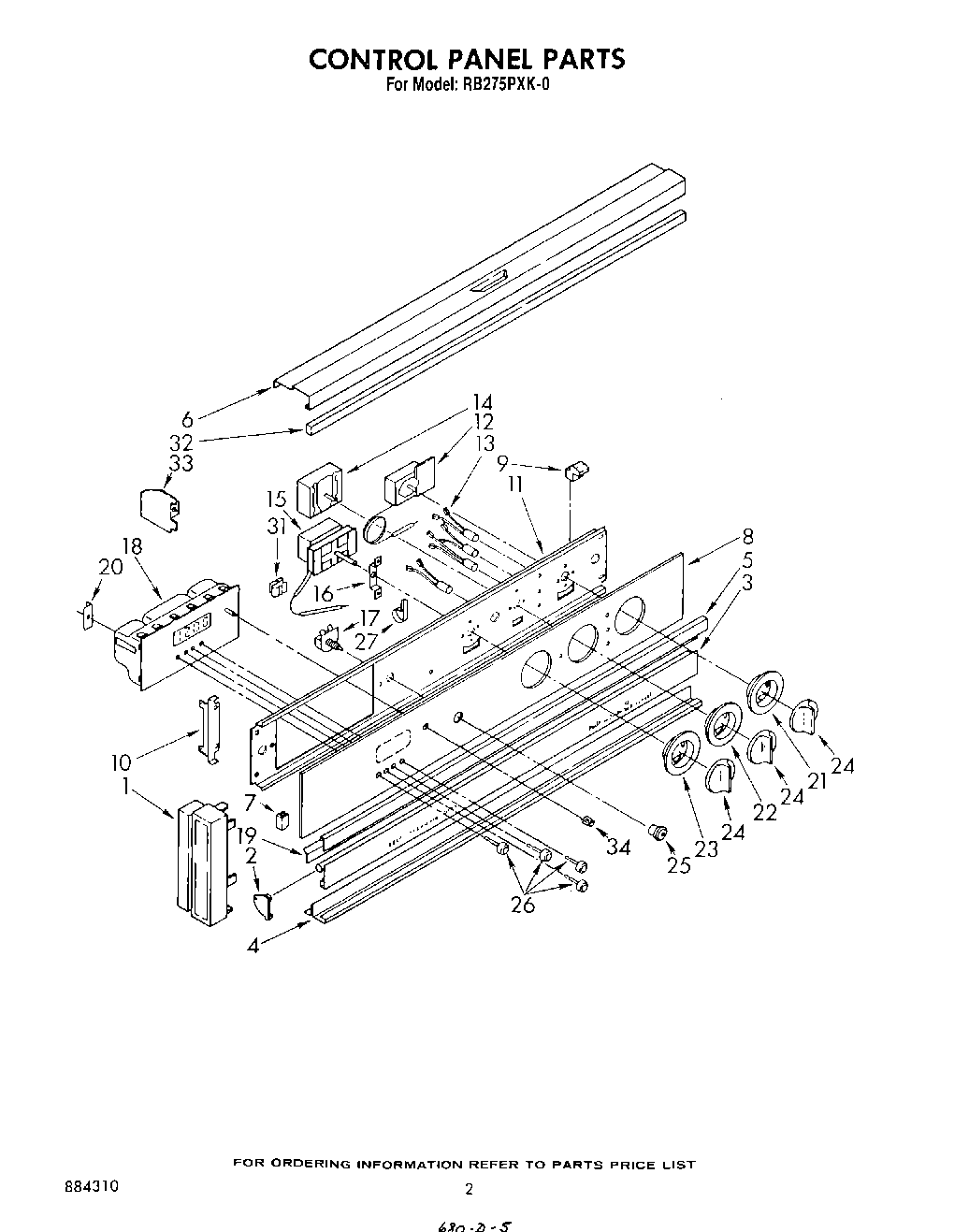

RB275PXK0 02 – CONTROL PANEL

RB275PXK0 02 – CONTROL PANEL

Written by

in

RB275PXK0 02 – CONTROL PANEL

Products

PositionProduct
1End Cap (R.H.)
1End Cap (L.H.)
2End Trim, Vent (Left Side)
2End Trim, Vent (Right Side)
3Door, Vent
4Trim, Bottom
5Screw, 10-32 x 1/2
5Trim, Center
6Rail, Top
6WP488627 Whirlpool Refrigerator Screw
7Rubber Channel (2) (Black Model Only)
8Control Panel, Glass
9Retainer, Glass (4)
10Bracket, Control Panel (2)
11Bracket, Control
128528351 Whirlpool Clip
12Thermostat, Oven Pyro
13Indicator Light (4)
14Selector Switch
14WP486579 Whirlpool Air Conditioner Screw
15Thermostat, Oven Continuous Clean
16Screw (2)
16WP313808 Whirlpool Screw
16Bracket, Thermostat
17Lockwasher
17Switch, Oven Light
18Timer, Digital
19Seal, Backguard
20Bracket, Timer (2)
21Escutcheon, Thermostat
22WP311068 Whirlpool Dial Knob Black
23Escutcheon, Thermostat – Lower Oven
23Screw,
24WP3150371 Whirlpool Control Knob
25Bezel Switch (1)
26WPL 313958
27WP308605 Whirlpool Refrigerator Clamp
31WPL 309211
31Clip, Tube
32Rail, Top (Seal, Backguard)
33Shield, Timer (2)
33Screw (2)
34Knob, Bit Generator (Black)
