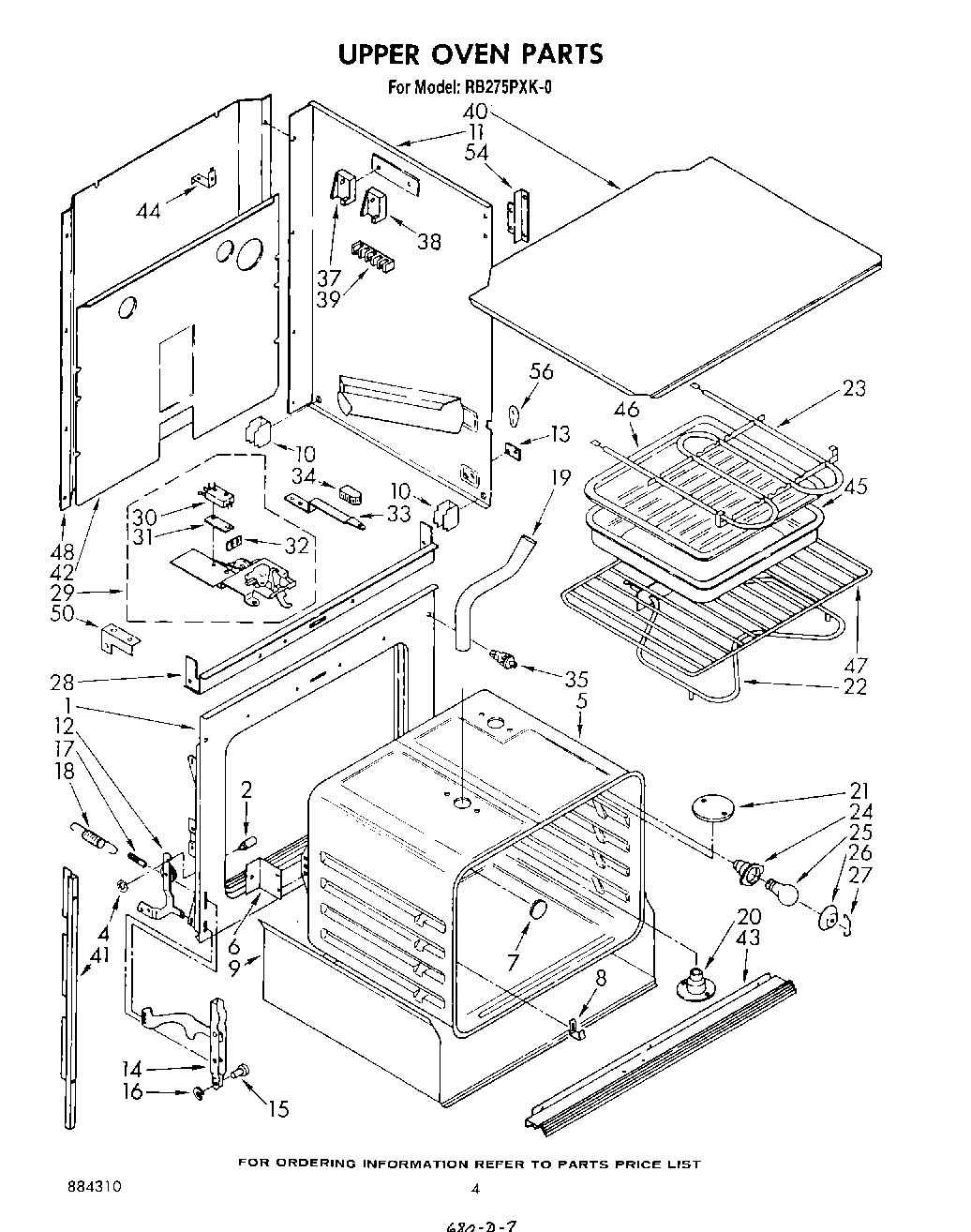

RB275PXK0 03 – UPPER OVEN
Written by
in
RB275PXK0 03 – UPPER OVEN
Products
Position
Product
Screw, 10-32 x 5/8 (4)
WP488729 Whirlpool Refrigerator Door Screw
Screw (10-12 x .875)
1
Frame, Front
2
Pin, Hinge Ear (2)
4
Pushnut (2)
5
Oven (30“ Pyro)
5
Screw (3)
6
Bracket, Oven Mounting (2)
7
Plug Button
8
98005642 Whirlpool Clip
9
Insulation Tray
10
Support, Side Wrapper (4)
11
Side Wrapper (L.H.)
11
Side Wrapper (R.H.)
12
Hinge Ear, L.H.
12
Hinge Ear, R.H.
13
WP308544 Whirlpool Screw
13
Plate, Side Panel (2)
14
Channel Arm (2)
15
WP307986 Whirlpool Hinge Pin
16
Retainer Ring (2)
17
WP308125 Whirlpool Microwave Range/Cooktop Anchor
18
WP308126 Whirlpool Door Spring
19
Vent, Extension (2)
20
SCREW
20
Eliminator, Smoke
21
WPL 310662
22
ELMNT-BAKE
23
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
24
Socket, Oven Light
24
Socket, Oven Light (Alt.)
24
Socket, Oven Light (Alt.)
25
RANGE ONLY 40W 120V APPL BULB
26
Cover, Light
27
Retainer, Light
28
Baffle, Top Insulation
29
Latch Assembly
30
Screw
30
Safety Switch
31
Insulator, Switch
32
Screw
32
Shield, Latch
33
Screw
33
Latch, Handle
34
Knob, Latch Handle
34
Screw, 80 x 5/16
35
Switch, Door
37
Sw
38
WPL 314211
39
WP112432 Whirlpool Nut Assembly
39
WP8203546 Whirlpool Terminal Block
40
WPL 310458
41
WPL 310686
41
WPL 310690
42
WPL 310459
43
Screw, 10A x 1/2 (2) (Black)
43
WPL 329019
44
Stand Off
46
4396923 Whirlpool Broil Pan Set Gray Porcelain
47
WPL 308172
47
WPL 308173
48
WPL 311011
50
WPL 312320
54
WPL 310719
54
WP488627 Whirlpool Refrigerator Screw
56
WPL 311982
←
