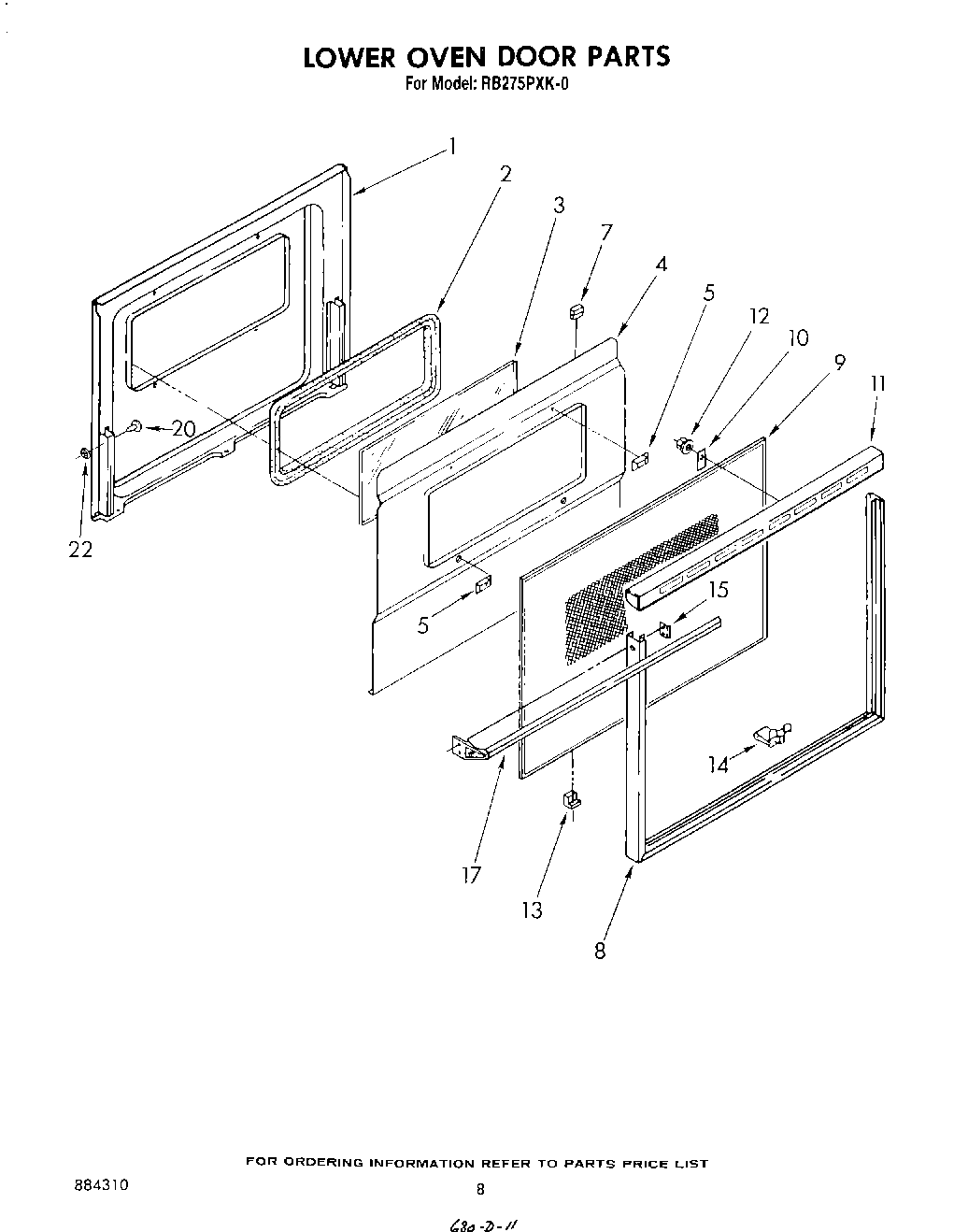

RB275PXK0 05 – LOWER OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
	List, Parts
	Tech Sheet
	Guide, Use & Care
	Instructions, Installation
	WPL LIT313358
1	WP488729 Whirlpool Refrigerator Door Screw
1	Screw (3)
1	liner, door
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
5	spacer, insulation baffle (4)
7	Channel, Rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	WP90296 Whirlpool Clip
13	Seal, Foam
14	clip, glass (10)
15	Clip (2)
17	Handle, Oven Door
17	WP355515 Whirlpool Screw
20	pin, wedge (2)
22	Wire (14 Ga. 150 c Brown)
22	18 Ga. 80~c Rating (Red)
22	WPW10208653 Whirlpool Insulation
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	pushnut (2)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire (12 Ga. 150 c Black)
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25“ Roll (White 14 GA.)
22	Touch-Up Oven (1 Oz.)
22	242831 Whirlpool Oven Wire
22	Wire (14 Ga. 150 c Blue)
22	Wire (14 Ga. 150 c Yellow)
22	Grease
22	Rotisserie Kit
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 200 c Brown)
22	Wire (14 Ga. 150 c Green)
22	1
