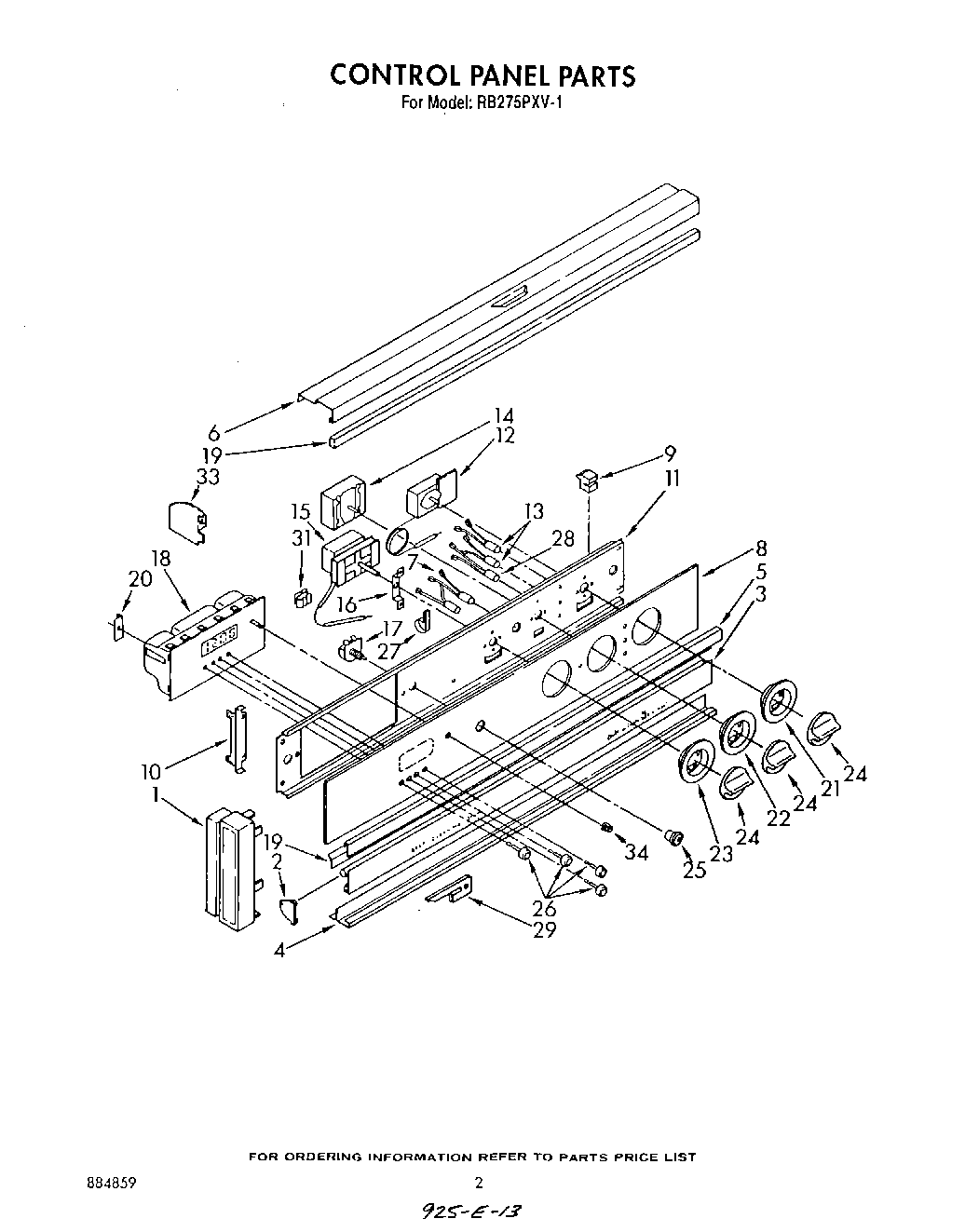

RB275PXV1 02 – SECTION

Products

Position	Product
	WPL LIT313358
	Repair Parts List
	Guide, Use & Care
	WPL LIT3148599
	Instructions, Installation
1	End Cap (R.H.)
1	End Cap. L.H.
2	End Trim, Vent (Right Side)
2	End Trim, Vent (Left Side)
3	Door, Vent
4	Trim, Bottom
5	Trim, Center (Black)
5	Screw, 10-32 x 1/2
6	WP488627 Whirlpool Refrigerator Screw
6	Rail, Top
7	Light, Indicator (Double)
8	Glass, Control Panel (Black)
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
11	Bracket, Control
12	Thermostat, Oven
12	8528351 Whirlpool Clip
13	Indicator Light (4)
14	Selector Switch
14	WP486579 Whirlpool Air Conditioner Screw
15	Thermostat, Oven Continuous Clean
16	WP313808 Whirlpool Screw
16	Bracket, Thermostat
16	Screw (2)
17	Lockwasher
17	Switch, Oven Light
18	Timer, Digital (Includes Knobs)
20	Bracket, Timer (2)
21	Escutcheon, Thermostat
22	WP311068 Whirlpool Dial Knob Black
23	Escutcheon, Thermostat – Lower Oven
23	Screw,
24	WP3150371 Whirlpool Control Knob
25	Bezel Switch (1)
26	WPL 313958
27	Strain Relief (3)
28	Light, Indicator Standard Clean
29	Shield, Air
29	WP488729 Whirlpool Refrigerator Door Screw
31	Clip, Tube
32	Seal, Backguard
33	Screw (2)
33	Shield, Timer (2)
34	Knob, Bit Generator (Black)
