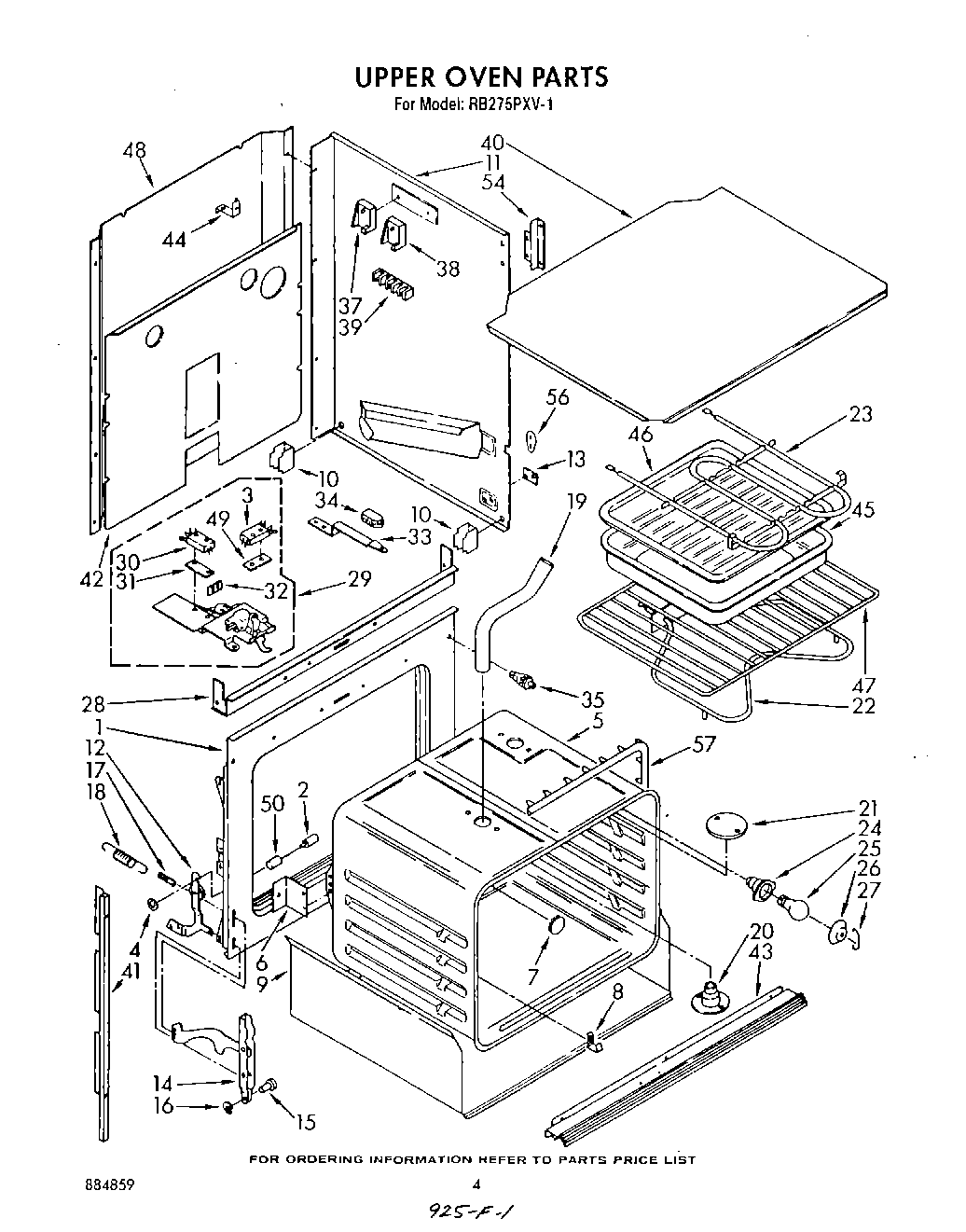

RB275PXV1 03 – SECTION

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Switch, Lock
3	Screw (2)
4	Pushnut (2)
5	Oven 30“
5	Screw (3)
6	Bracket, Oven Mounting (2)
7	Plug Button
8	98005642 Whirlpool Clip
9	Insulation Tray
10	Support, Side Wrapper (4)
11	Side Wrapper (L.H.)
11	Side Wrapper (R.H.)
12	Hinge Ear, R.H.
12	Hinge Ear, L.H.
13	Plate, Side Panel (2)
13	WP308544 Whirlpool Screw
14	Channel Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	WP308125 Whirlpool Microwave Range/Cooktop Anchor
18	WP308126 Whirlpool Door Spring
19	Vent, Extension (2)
20	Eliminator, Smoke
20	SCREW
21	WPL 310662
22	ELMNT-BAKE
23	Screw (2)
23	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
23	WPL 312318
24	Socket, Oven Light
25	RANGE ONLY 40W 120V APPL BULB
26	Cover, Light
27	Retainer, Light
28	Baffle, Top Insulation
29	Latch Assembly
30	Safety Switch
30	Screw
31	Insulator, Switch
32	Shield, Latch
32	Screw
33	Screw
33	Latch, Handle
34	Knob, Latch Handle
34	Screw, 80 x 5/16
35	Switch, Door
37	Sw
38	Switch, Bake
39	WP8203546 Whirlpool Terminal Block
39	Screw (10-12 x .875)
39	WP112432 Whirlpool Nut Assembly
40	WPL 310458
41	WPL 310686
41	WPL 310690
42	Panel, Back (2)
43	Screw
43	WPL 329019
44	Stand Off
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	WPL 308172
47	WPL 308173
48	WPL 311011
49	WPL 3147864
50	Snubber, Door (2)
54	WP488627 Whirlpool Refrigerator Screw
54	WPL 310719
56	WPL 311982
56	WP488729 Whirlpool Refrigerator Door Screw
57	WPL 310433
57	WPL 310434
57	Seal, Door
57	WPL 3149328
