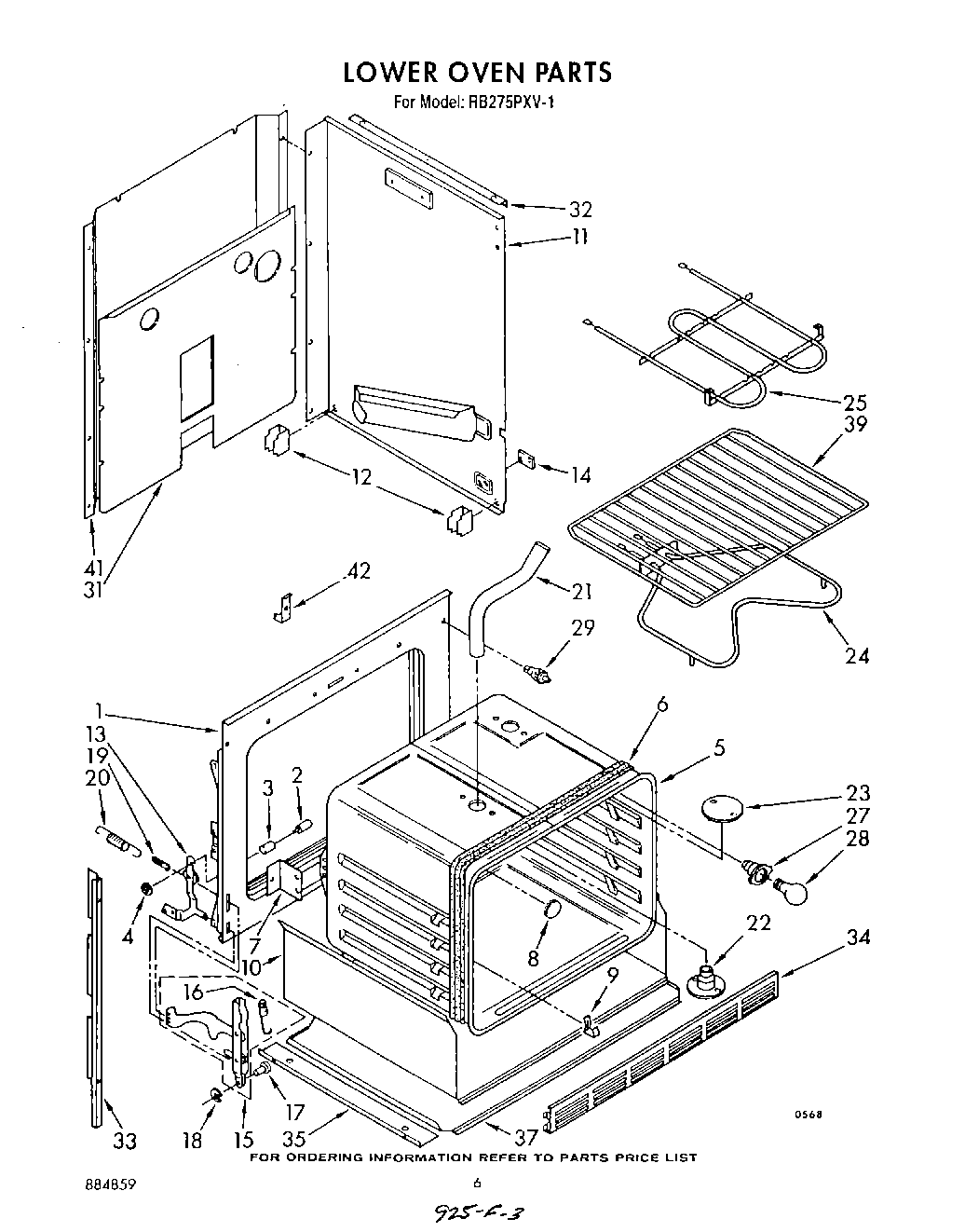

RB275PXV1 04 – SECTION

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Oven, 30“ Continuous Clean
5	Screw (3)
6	Heat Seal
7	Bracket, Oven Mounting (2)
8	Plug Button
9	98005642 Whirlpool Clip
10	Insulation Tray
11	Side Wrapper (Right Side)
11	Side Wrapper (Left Side)
12	Support, Side Wrapper (4)
13	Hinge Ear, R.H.
13	Hinge Ear, L.H.
14	Plate, Side Panel (2)
14	WP308544 Whirlpool Screw
15	Channel Arm (2)
16	Spring, Door Stop (2)
17	WP307986 Whirlpool Hinge Pin
18	Retainer Ring (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Spring, Oven Door (2)
21	SCREW
21	Tube, Lower Vent
22	Eliminator, Smoke
23	WPL 310662
24	ELMNT-BAKE
25	Screw (2)
25	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Socket, Oven Light
28	RANGE ONLY 40W 120V APPL BULB
28	Screw (10-12 x .875)
29	Switch, Door
31	Panel, Back (2)
32	Support Angle (2)
33	Side Trim (Left Side)
33	Side Trim (Right Side)
34	Grill, Bottom (Screw (3))
34	Grill, Bottom
35	Angle, Support (2)
37	WPL 310458
39	WPL 308173
41	WPL 311013
41	WP488729 Whirlpool Refrigerator Door Screw
42	WPL 309102
42	WPL 310433
42	WPL 310434
