RB524*A1

Products

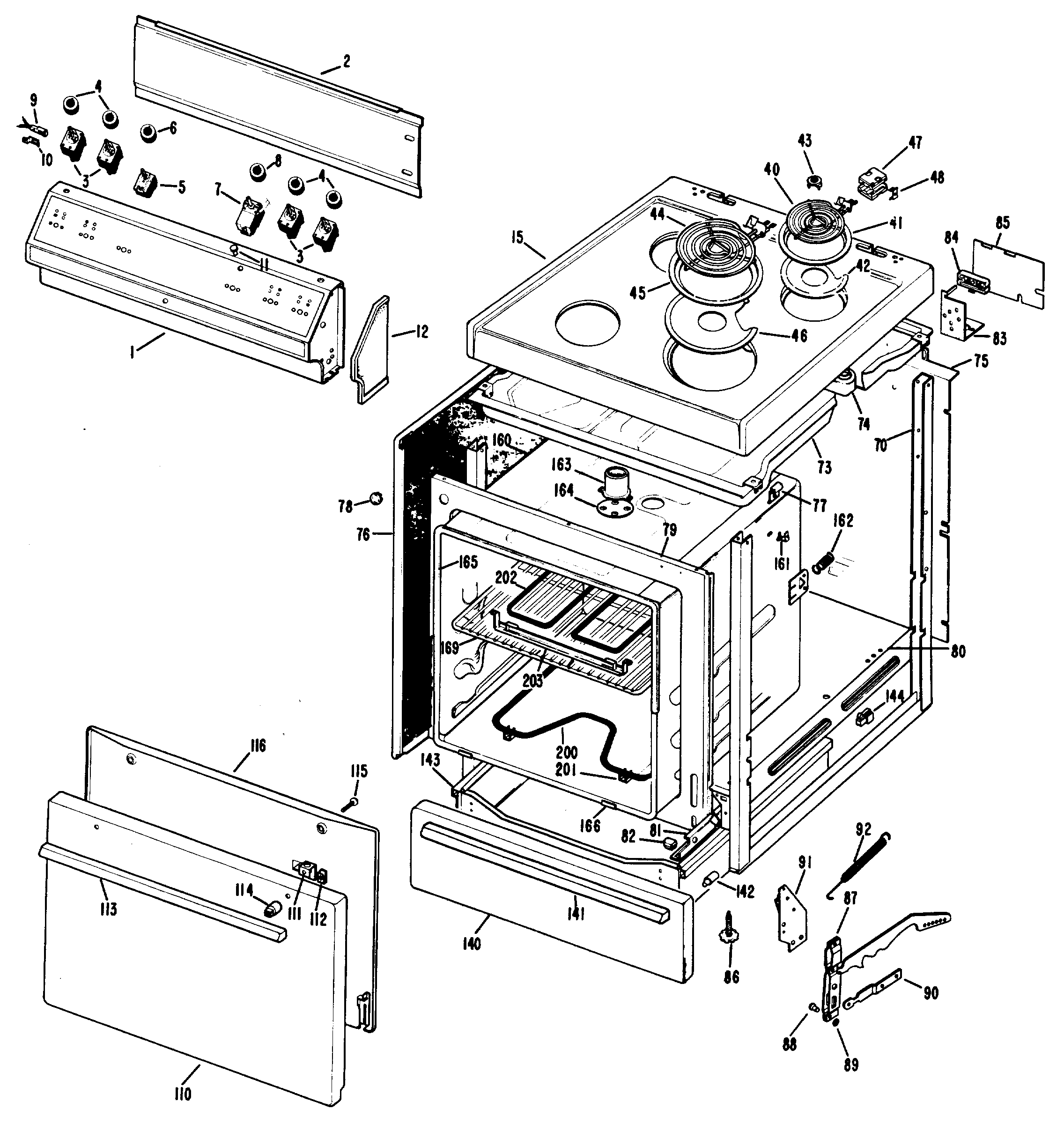

Position	Product
1	WZ4X345D GE Screw Package 12 C92
1	GEN WB61X6001
1	GEN WB61X6000
1	GEN WB61X5999
1	GEN WB61X5998
1	GEN WB61X5997
2	GEN WB63X5193
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5479
5	GEN WB22X5023
6	GEN WB03X5502
7	GEN WB01X5218
7	GEN WB02X5760
7	THERMOSTAT – UPPER OVEN
8	KNOB THERMSOTAT U.O.
9	NEON LAMP 118V
10	CLIP MTG LAMP
11	WB25X65 GE Oven Light Indicator
12	GEN WB07X6692
12	GEN WB07X6691
12	GEN WZ05X0250
15	GEN WB62X5230
15	GEN WB02X5165
15	GEN WZ04X0319
15	GEN WB62X5227
15	GEN WB62X5229
15	GEN WZ04X0350
15	GEN WB62X5228
15	GEN WB62X5226
40	WB30X342 GE Oven Cooktop 6" Burner Unit 3w No Trim Ring
41	WB31X5013 GE Oven 6" Chrome Trim Ring
42	WB32X10012 GE Oven Range Cooktop 6" Chrome Drip Pan
43	GEN WB32X0052
43	GEN WB32X0051
44	GEN WB01X5485
44	WB1X500D GE Oven Screw Package
44	WB30X348 GE Oven 8" Surface Unit Element with Screw
45	WB31X5014 GE 8-Inch Chrome Trim Ring
46	WB32X10013 GE Oven 8" Chrome Drip Pan
47	TERM BLOCK SINGLE COIL
47	WB2X1351 GE Oven Terminal Block
48	CLIP INSULATOR
70	GEN WB63X5096
73	GEN WB63X5132
74	GEN WB38X5032
75	GEN WB56X5732
75	GEN WB63X5191
75	GEN WB56X5729
75	GEN WB56X5731
75	GEN WB56X5730
75	GEN WB56X5728
77	GEN WB02X5522
78	GEN WB03X5012
79	GEN WB63X5094
80	GEN WB63X5190
81	GUIDE DRAWER
82	SLIDE-NYLON(AT FRONT OF GUIDE)
83	GEN WB02X6519
84	WB17X5095 GE Black Oven Terminal
84	PLATE GROUND
85	GEN WB02X6521
87	DOOR GUIDE ASM.-LH & RH
88	HINGE PIN FOR SERVICE 3/16" DIA.
89	RETAINING RING FOR HINGE PIN
90	DOOR SUPPORT – LH & RH
91	SPEC. SCREW – TRIMMED HD. 1/2-28X3/8"
91	GEN WB10X5042
91	GEN WB10X5041
92	GEN WB09X5018
110	GEN WB56X5719
110	GEN WB56X5720
110	GEN WB56X5721
110	GEN WB02X5804
110	GEN WB56X5722
110	GEN WB56X5718
111	GEN WB02X6036
112	SPEEDNUT ON HANDLE SUPPORT
114	GEN WB01X5530
115	GEN WB01X5272
116	GEN WB55X5121
140	GEN WB56X5821
140	GEN WB56X5824
140	GEN WB56X5820
140	GEN WB56X5823
140	GEN WB56X5822
141	GEN WB01X5203
141	GEN WB15X5125
141	WASHER
142	GEN WB02X5521
143	GEN WB58X5003
160	WB1X119D GE Oven Range Washer
160	GEN WB53X5062
160	LINER SCREW
160	GEN WB02X5206
160	GEN WB02X5208
161	CLIP FOR THERMOSTAT TUBE
162	HOOK PACKAGE
