RB525*R2

RB525*R2

Written by

in

RB525*R2

Products

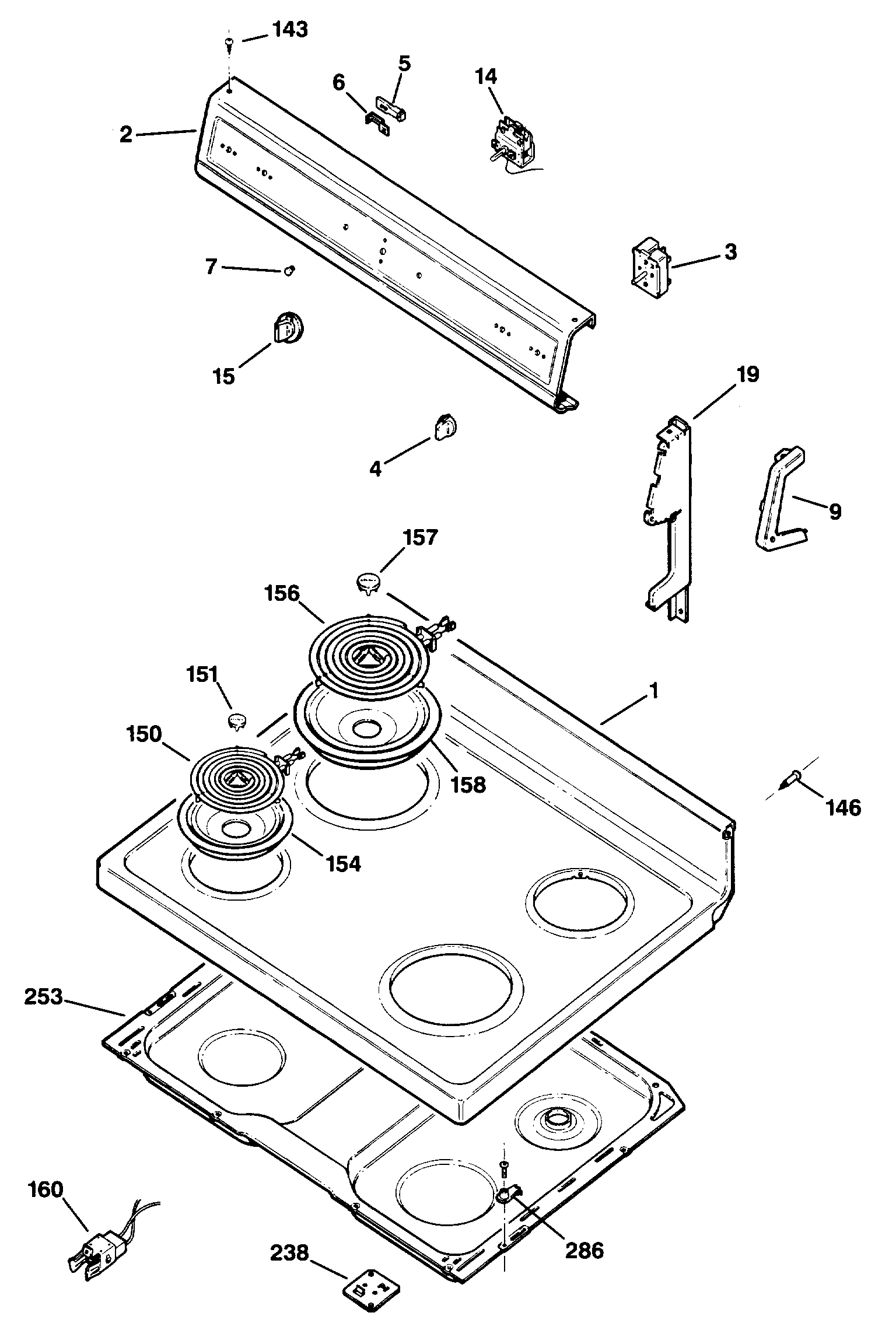

Position	Product
1	GEN WB62X5407
1	RANGE TOP ASM – AD
2	GEN WB07X7138
3	WB21X36771 GE Surface Element Switch
4	SELECTOR KNOB
5	NEON LAMP 118V
7	WB25X65 GE Oven Light Indicator
9	PLATE END L
9	PLATE END R
9	GEN WB07X7136
9	GEN WB07X7137
14	GEN WB21X5304
14	GEN WB02X6274
15	GEN WB03X5793
21	GEN WB49X5496
108	WB1X5364 GE Oven Mounting Screw
143	GEN WB01X5860
146	GEN WB01X5832
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
152	WB2X1351 GE Oven Terminal Block
154	BOWL BURNER 8 (CH)
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	BOWL BURNER 6 (CH)
160	WB17X5113 GE Oven Cooktop Burner Receptacle Kit
223	GEN WB02X6195
224	RING RETAINING
251	GEN WB56X7036
252	GEN WB49X5498
252	WH2X930 GE Screw
253	GEN WB49X5499
254	GEN WB01X0549
256	GEN WB02X8116
258	GEN WB39X0051
259	SLIDE GUIDE
260	GEN WB10X5206
261	GEN WB10X0148
261	GEN WB10X0149
262	GEN WB02X3193
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	GEN WB09X0146
271	BAFFLE
272	WB17X5095 GE Black Oven Terminal
274	KNOCKOUT PLATE
275	GEN WB02X8104
285	GEN WB02X8106
286	GEN WB02X8107
312	WB1X119D GE Oven Range Washer
336	GEN WZ04X0423
342	GEN WB02X8108
348	PLATE GROUND
350	GEN WB55X5364
358	GEN WB56X7041
358	GEN WB56X7042
363	SPACER PANEL
364	GEN WB02X3245
365	GEN WB15X5160
375	GEN WB02X8125
452	SLIDE TOP
453	GEN WB02X3394
457	GEN WB56X7032
457	GEN WB56X7033
459	WB1X537 GE Oven Screw
482	GEN WB02X1126
518	GEN WB02X8120
519	GEN WB02X8121
520	GEN WB53X5146
520	GEN WB02X3471
521	HOOK PACKAGE
521	GEN WB09X5118
528	WB48X5099 GE Stove Oven Rack
529	WB48X10056 GE Broil Pan Set, Large Porcelain
530	BROILER PAN RACK
532	GEN WB38X5063
534	WB2X1522 GE Stove Range Oven Silcone Door GasKET
650	BAKE ELEMENT SELF CLEAN
651	WB44X173 GE Range Broil Element
652	SUPPORT BROIL
740	CLIP WIRE BLACK
752	WZ4X345D GE Screw Package 12 C92
769	WB1X500D GE Oven Screw Package
904	GEN WB01X5550
961	CLIP MTG LAMP
32767	GEN 31-0824
32767	GEN 31-1065
32767	GEN 39-4700
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
