RB525BH3WH CONTROL PANEL & COOKTOP

RB525BH3WH CONTROL PANEL & COOKTOP

Written by

in

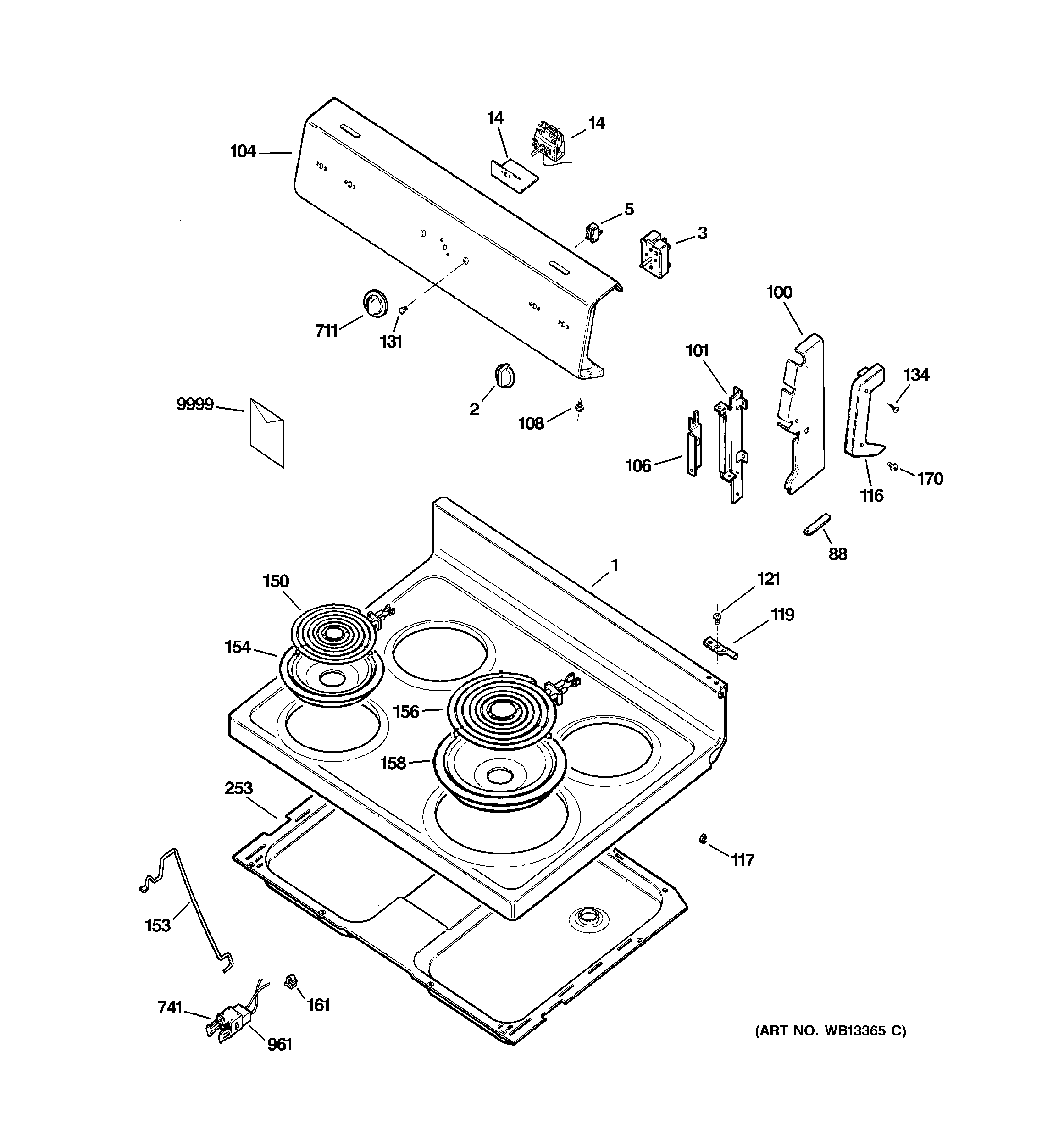

RB525BH3WH CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10083 GE Oven White Cooktop O/S1
2WB03T10072 GE Oven Burner Knob
3WB24T10022 GE Oven Infinite Switch
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14WB02K10070 GE Oven Thermostat Carton Cover
14WB20K10026 GE Oven Thermostat
88GEN WB02K0062
100GEN WB07K10022
100GEN WB07K10023
101GEN WB37K0018
101GEN WB37K0017
104GEN WB36K10407
106GEN WB10K10001
106GEN WB10K10002
108WB1X5364 GE Oven Mounting Screw
116GEN WB07K10004
116WB07K10003 GE Oven Right Black Endcap
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
131WB25T10041 GE Oven Lens
134GEN WB01K10003
150WB30K10002 GE Stove Range Oven Cooktop Burner Surface Unit 6"
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30K10003 GE Range Stove Cooktop Burner Surface Unit 8"
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
170GEN WB01X5716
253GEN WB64K10002
711WB03K10185 GE Oven Thermostat Knob Assembly
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88013
9999GEN 31-21072
