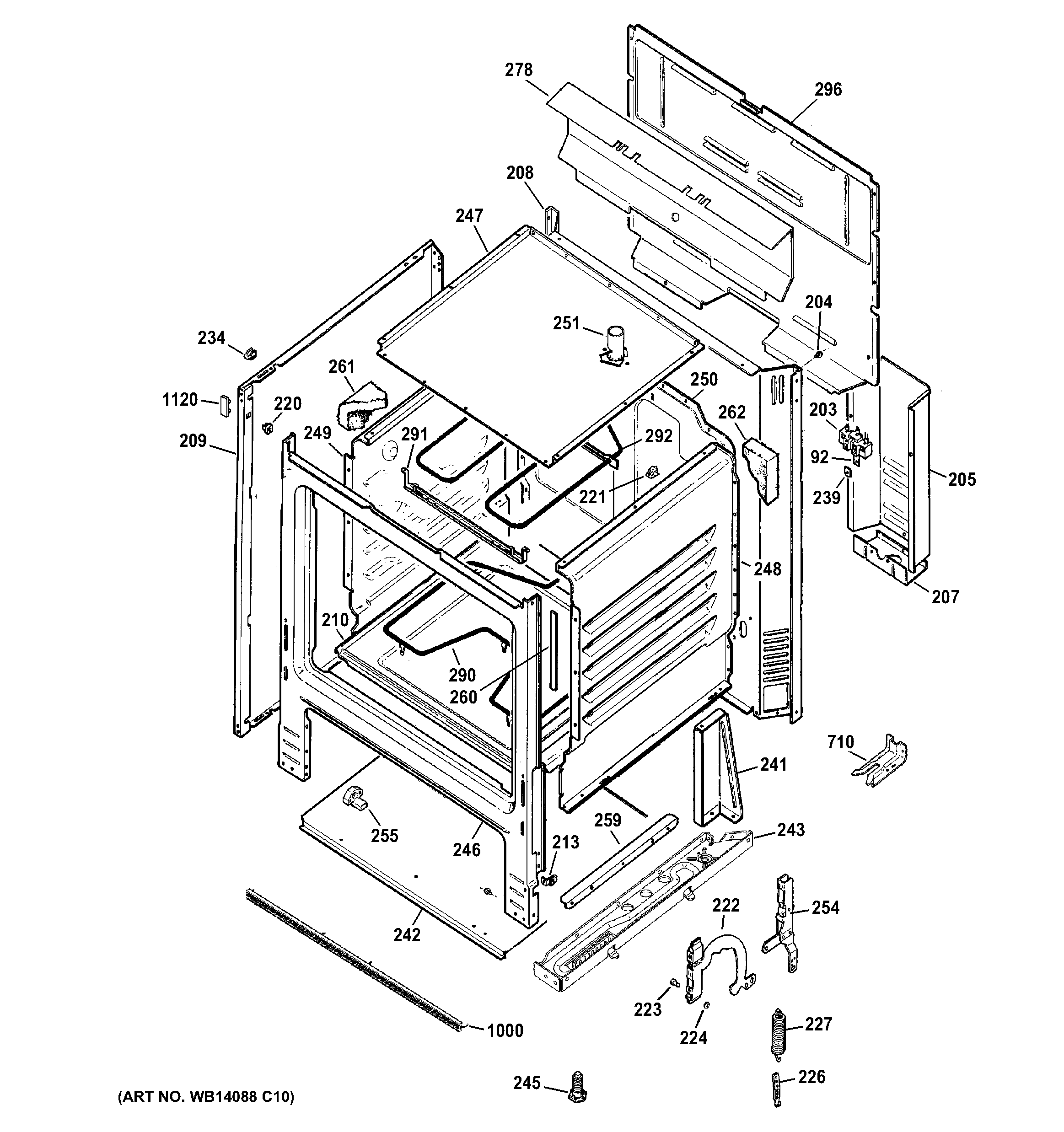

RB525BH4CT BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10005
209WB63K10144 GE Oven Side Panel
209GEN WB63K10142
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB09K10001
227GEN WB09K0001
234GEN WB02K0066
239PLATE GROUND
241SUPPORT CONTROL
242GEN WB63K10009
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10149
247WB63K10021 GE Oven Top
248WB63K10244 GE Oven Right Side Rack
249WB63K10245 GE Oven Left Side Ran
250BACK OVEN
251GEN WB04K10002
251WB38K10002 GE Oven Vent Tube
254SUPPORT ASM RIVET RT
254GEN WB01K0053
254SUPPORT ASM RIVET LF
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
260GASKET OVEN SEAL
261WB35K10108 GE Oven Insulation Wrap
262WB35K10107 GE Back Oven Insulation
278WB34K10083 GE Divider Wiring
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296GEN WB34K10031
710WB02K10384 GE Oven Anti-Tip Bracket Assembly
1000WB04K10021 GE Oven Front Frame Gasket
1120WB02K10180 GE Oven Bumper
1120WB02K10179 GE Range Bumper
